Flymaster Live C User Manual

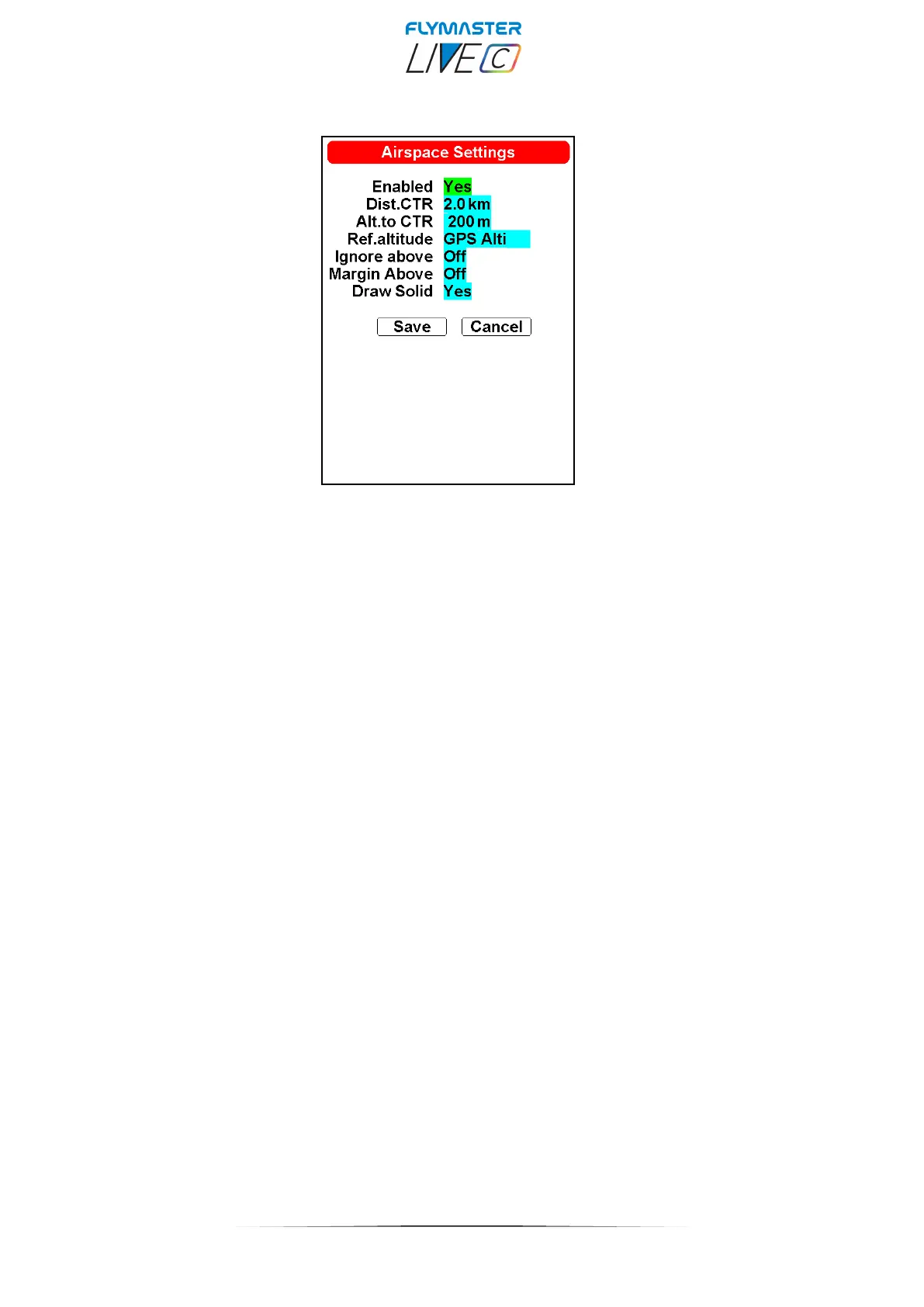

Airspace Settings
Enabled - If this parameter is set to YES, all the Airspaces functions will be ON, including warnings and
map layer representations.
Dist. CTR - Minimum horizontal distance that a pilot can be from an airspace without triggering an
airspace warning. If this thresh-old is passed a warning is emitted.
Alt. to CTR - Minimum vertical distance that a pilot can be from an airspace without triggering an airspace
warning. If this threshold is passed a warning is emitted.
Ref. altitude - The Ref. Altitude parameter allows the user to define the altitude that is used to evaluate
the airspace's proximity. The parameter can be set to:
GPS Altitude - Altitude given by the GPS
Altitude - Barometric altitude
Flight Level - Barometric altitude expressed in hundreds of feet and computed assuming an International
standard sea-level pressure datum of 1013.25 hPa (QNH).
Ignore Above - Here you can set from which altitude you can ignore airspaces. After setting a value
above which they will be ignored, they will not be drawn nor will any alert or alarm be generated in the
airspaces that are located above this value.
Margin Above
Draw Solid - With this option set to YES, in the map that contains an airspace layer, the violation (in
red) or imminent violation (in yellow) will be filled.
