US-22 Original User Guide | Impulse Evo pedelec Version 2

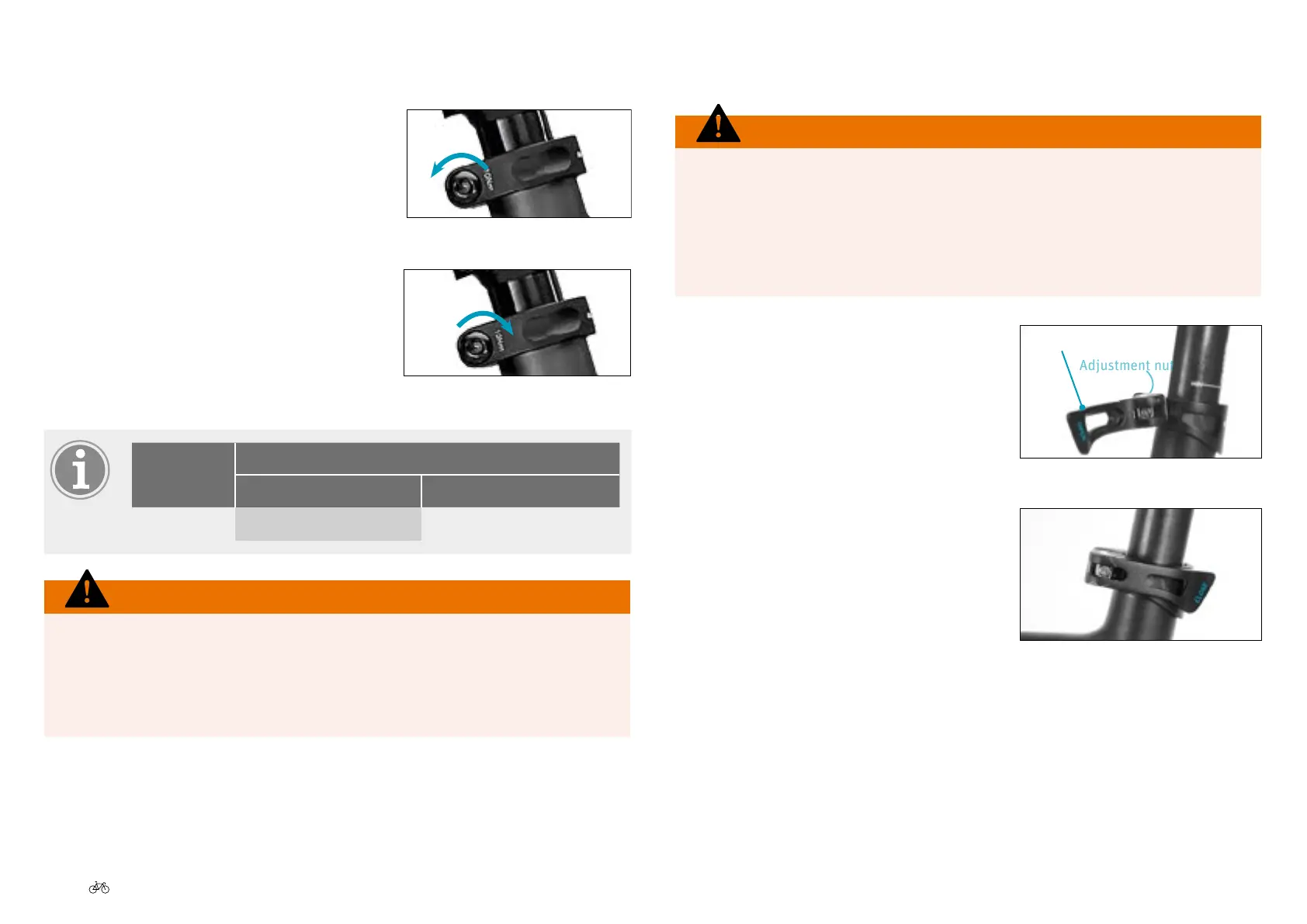

3.2.3 Adjusting the saddle height: Quick-release skewer*
WARNING
Thequick-releaseskewermustbecorrectlyclosedbeforeyouseto.
Checkthatitiscorrectlyttedbeforeeveryrideandaftereverytime
the bike is left unsupervised, even for a short time. Otherwise, the
seatpost may
come loose; if this should happen whilst you are cycling,
you could fall. This could result in serious injuries.
1. Open the quick-release skewer by
swingingthelever180˚.Youwill
generally be able to read "OPEN" on
the inside of the lever.
2. Move the seatpost into the right
position. Take heed of the marking.
3. Close the quick-release skewer by
swingingtheleverback180˚.You
will generally be able to read
"CLOSE" on the outside of the lever.
Quick-release skewer
Adjustment nut
For1. Quick-release skewer open
For3. Quick-release skewer closed
3.2.2 Adjusting the saddle height: Seat clamp(s)*
1. Use an Allen key to loosen the seat
clamp(s) by turning them
anti-clockwise.
2. Move the seatpost into the right position.
Take heed of the marking.
3. Tighten the seat clamp(s) by turning
them anti-clockwise with a torque
wrench. If no value is shown on the
component, use the torque settings
from the following table:
Thread Tightening torque
Nm ft·lb
M5 / M6 / M8 M5: 5 / M6: 10 / M8: 20 M5: 3.7 / M6: 7.4 / M8: 14.8
WARNING
Only use appropriate tools to tighten screws and bolts. Observe the
speciedtorquesetting.Screwsthathavenotbeentightenedproperly
with a torque wrench are at risk of breaking, which could lead to
severe falls.
4. Trytotwistthesaddletocheckthatitisrmlyxed.
For1. Loosen seat clamp(s)
For3.
Tighten seat clamp(s)
*depending on model
