3.10.3 Quick-release axle
*
Removing the front wheel
1. Remove the pedelec battery.

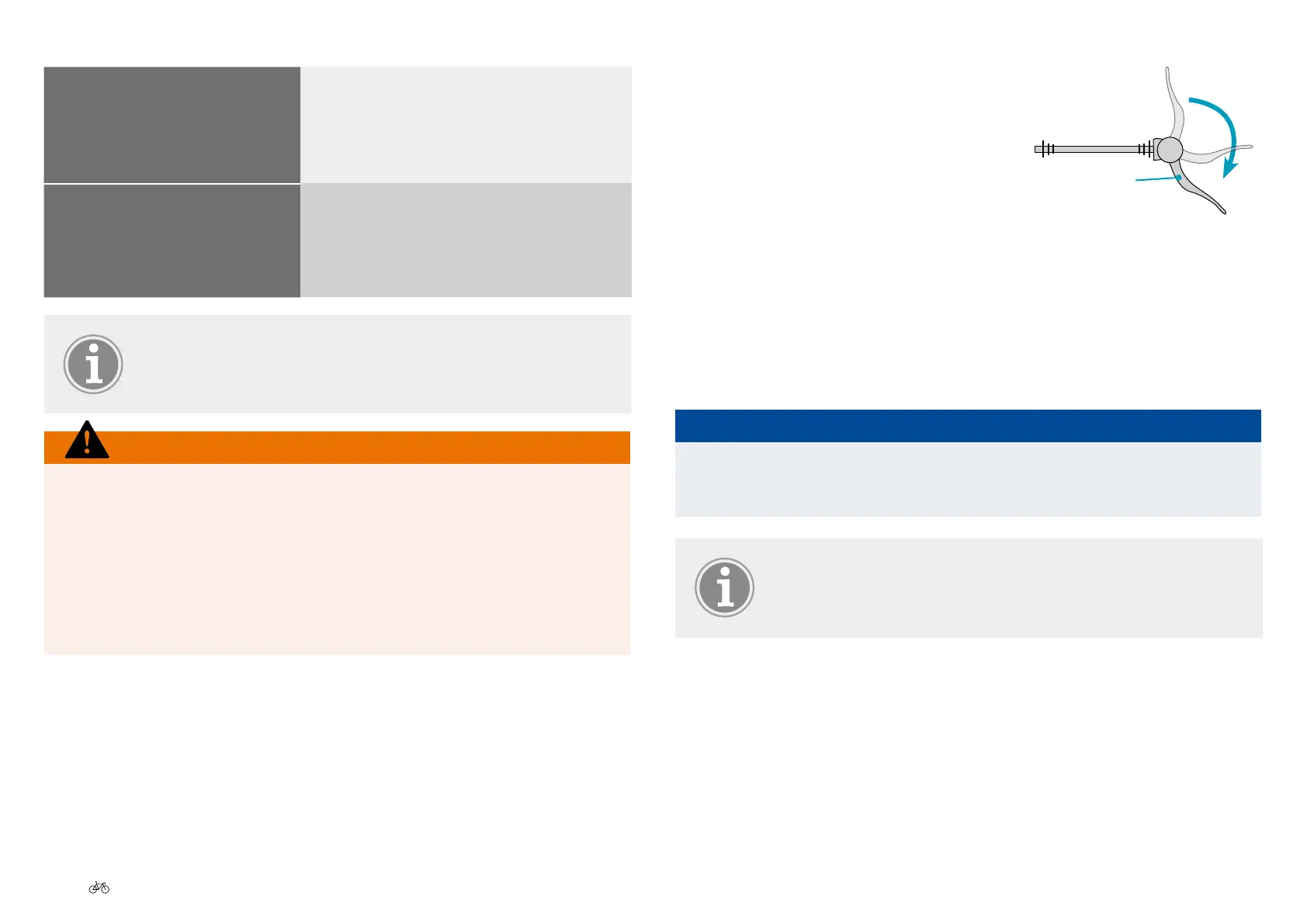

2. Open the quick-release lever by
turningitdown180˚.
3. Hook the quick-release lever into the slot and turn it anticlockwise
until the quick-release axle protrudes from the axle hole about
0.39 inches.
4. Lift out the front wheel and remove the quick-release axle.
NOTICE
Detach all cables from the wheel (e.g. lighting cables), otherwise you
could tear them.
If your bike is fitted with rim brakes you must release them.
Alternatively, you can deflate the front tire. Otherwise you
will not be able to remove the front wheel.
5. Remove the front wheel.
Quick-release clamps
For2. Open quick-release lever
Quick-release lever shuts too
easily
1. Open the quick-release lever.
2.
Turn the adjustment nut clockwise.
3. Close the quick-release lever again.
4. Repeat if necessary.
Quick-releaselevertoosti
1. Open the quick-release lever.
2.
Turn the adjustment nut anticlockwise.
3.
Close the quick-release lever again.
4. Repeat if necessary.
Quick-release levers cannot be closed just by simple
turning.
WARNING
If you have released the rim brakes to remove the wheel, you must
close them again, otherwise you will not be able to brake and run the
risk of serious injury.
Reattach any previously disconnected cables (e.g. lighting cables ),
otherwise they can get caught in the spokes. If that happens while you
areridingthebikeyoucouldbethrownoandseriouslyinjured.
*depending on model
