Focus IMPULSE EVO PEDELEC - Wheel; Axle Nut

US-34 Original User Guide | Impulse Evo pedelec Version 2
3.10 Wheel
WARNING
Riding with an improperly secured wheel can cause the wheel to
wobble or disengage from the bike, and cause serious injury or death.
Spin each wheel and check for brake clearance and side-to-side
wobble. If a wheel wobbles side to side even slightly, or rubs against
orhitsthebrakepads,takethebiketoaqualiedbikeshoptohave
the wheel trued.
Wheelsmustbetrueforrimbrakestoworkeectively. Wheel trueing
is a skill which requires special tools and experience. Do not attempt
to true a wheel unless you have the knowledge, experience and tools
needed to do the job correctly.
Riding with an improperly secured wheel can allow the wheel to
wobbleorfallothebike,whichcancauseseriousinjuryordeath.
Therefore, it is essential that you:
» Ask your dealer to help you make sure you know how to install and
remove your wheels safely.
» Understand and apply the correct technique for clamping your
wheel in place.
3.10.1 Axle nut
Removing the rear wheel
1. Remove the pedelec battery.
2. Change the gear to the one
recommended by the gear
manufacturer for disassembly.
3. Remove the gear shift cable from
the rear wheel.
4. Undo the axle nuts using a 0.59 inches
spanner, turning anticlockwise.
5. Takeothebelt/chain
6. Remove the rear wheel.
Replacing the rear wheel
1. Attach the belt/chain
2. Insert the rear wheel centrally in the drop-outs as far as it will go.
3. Re-attach the gear shift cable.
4. Tighten the axle nuts using a 0.59 inches spanner, turning clockwise.
Make sure that your wheel is correctly centered.
5. Reinsert the battery.

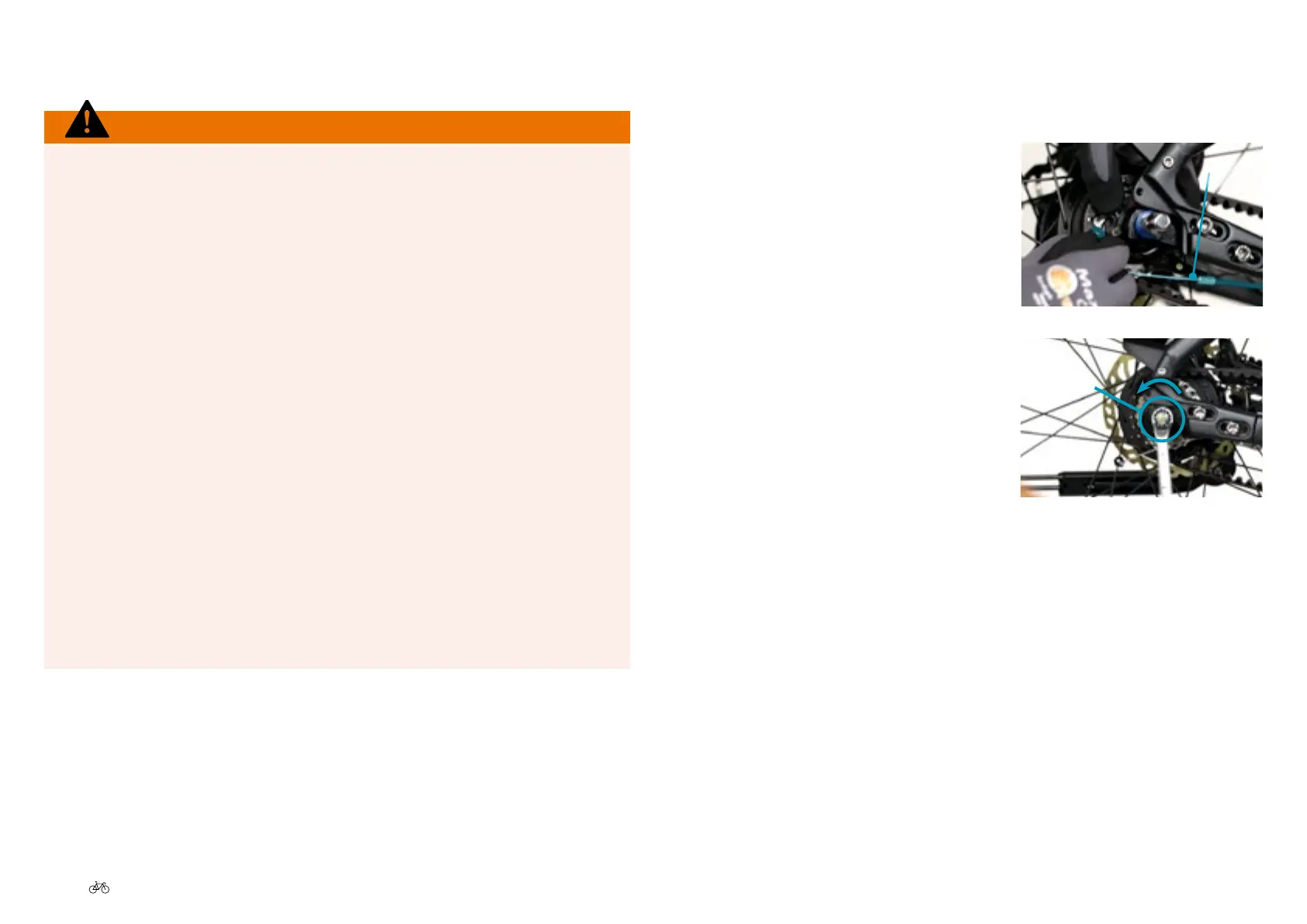

3. Remove shift cable from rear wheel
gear shift
cable
4. Undo axle nuts
axle nuts
