25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 17

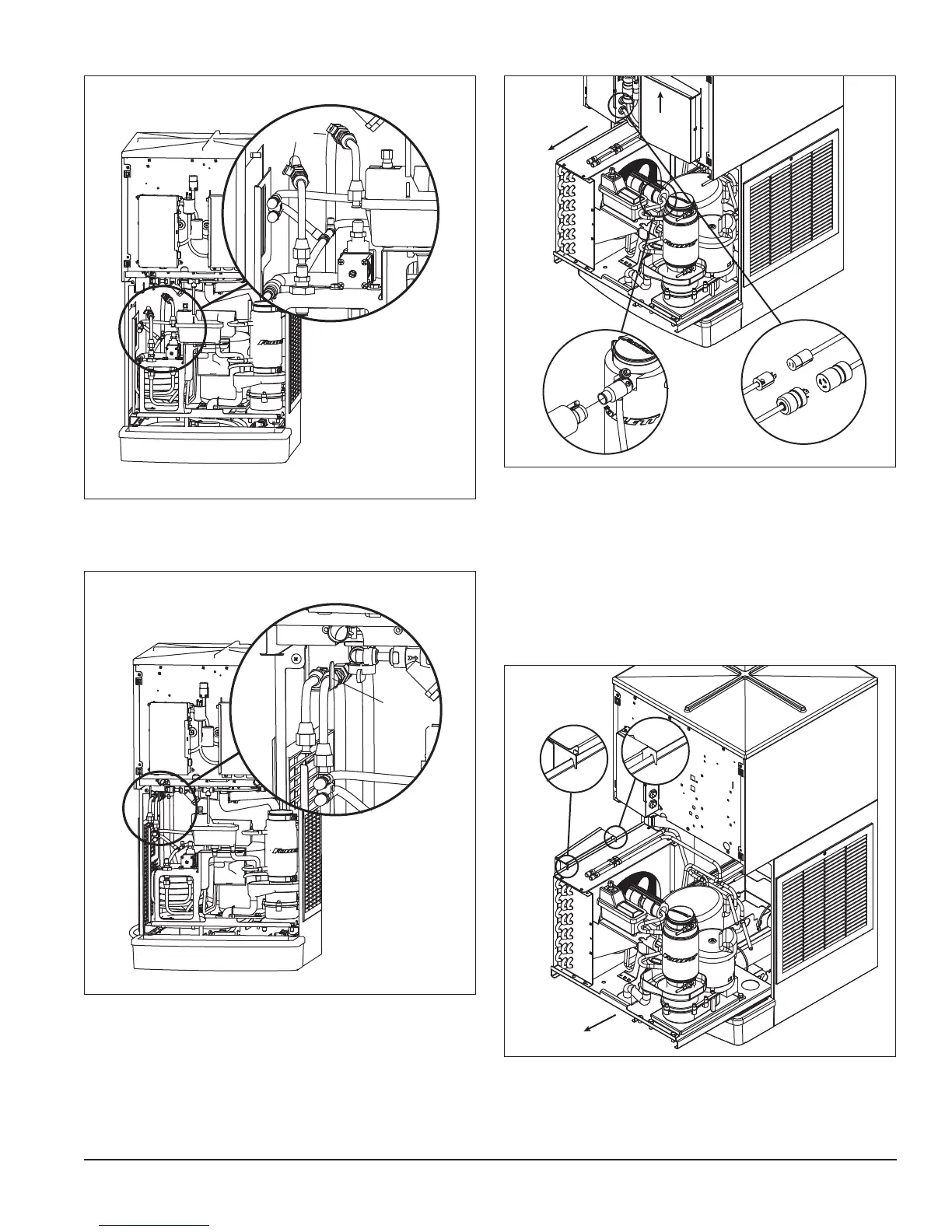

Fig. 22 – All models
22.3
22.2
22.1
22.4
9. Partially slide ice machine from dispenser
(Fig.22.1).
10. Loosen clamp and disconnect ice transport tube
from evaporator (Fig. 22.2).
11. Disconnect power and bin signal twist lock
connectors (Fig. 22.3).
12. Slide ice machine electrical box up and off unit
(Fig.22.4).
Fig. 23 – Air-cooled only
23.2
23.1
13. Use hooks on ice machine electrical box to hang
box on front of condenser (Fig. 23.1).
14. Remove ice machine from dispenser (Fig. 23.2).
Note warning (Fig.25).
Fig. 20 – Water-cooled only
20.1
7. Shut off inlet and outlet valves to water-cooled
condenser and disconnect  ttings (Fig. 20.1).
Fig. 21 – Water-cooled only
21.1
8. Lift and position water-cooled lines into hook
(Fig.21.1).
