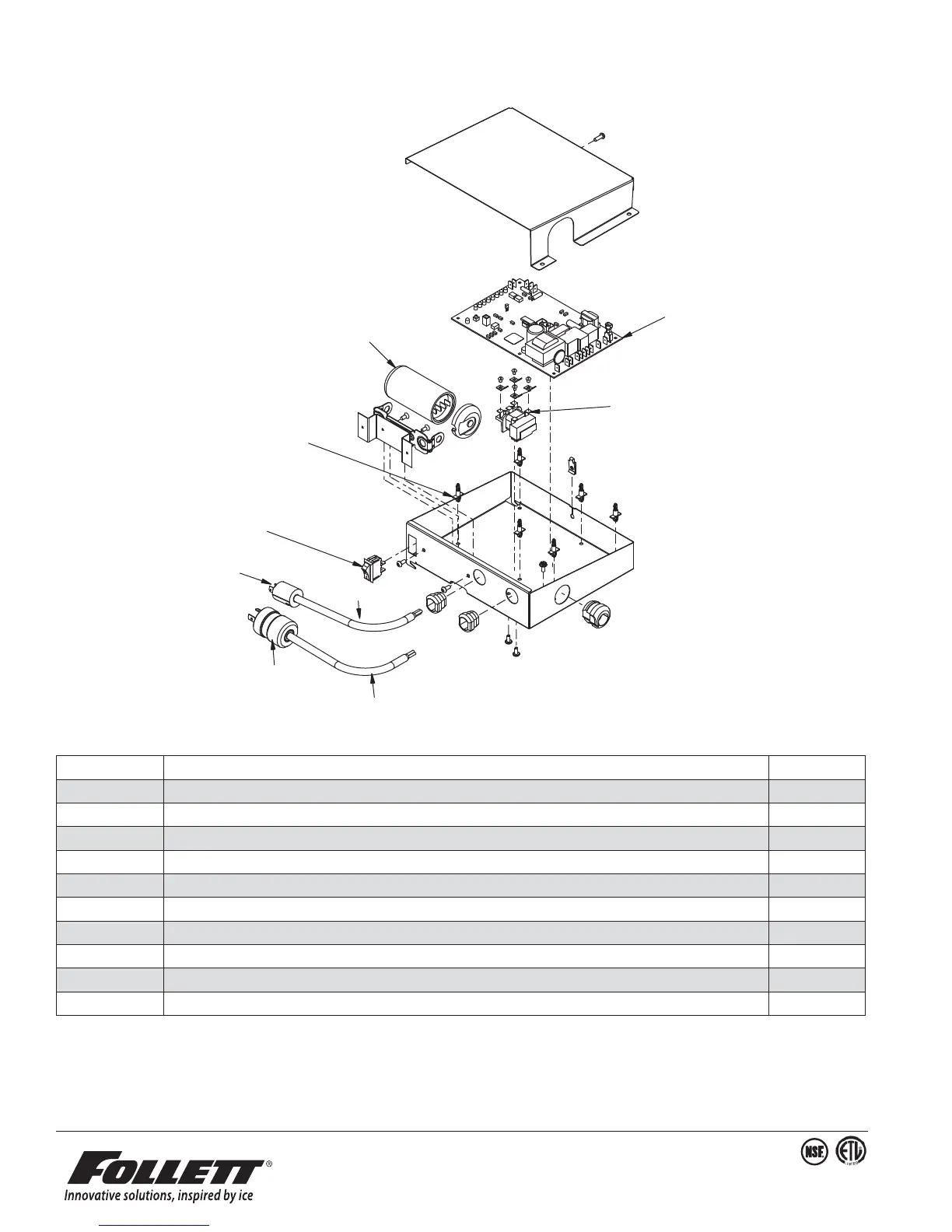

Ice machine electrical components
6
7
8
3
2
4
9
5
1
Reference Description Part #
1 Capacitor, start, compressor, 115 V, 60 Hz 502780
2 Relay start, compressor, 115 V, 60 Hz 501588
3 Board, control circuit, 115 V, 60 Hz 502331
Not shown Water sensor 502116
4 Switch, on/off, compressor 502392
5 Board, stand off control (4 required) 501959
6 Cord and plug (male), ice machine power 00195834
7 Cord and plug (male), bin signal 00195842
8 Plug (male), ice machine power 502235
9 Plug (male), bin signal 502233
00187153R09
© Follett Corporation 3/13
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
SafeCLEAN, SensorSAFE and Symphony are trademarks of Follett Corporation.
Follett and RIDE are registered trademarks of Follett Corporation, registered in the US.
Follett reserves the right to change speci cations at any time without obligation. Certi cations may vary depending on country of origin.
