42 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

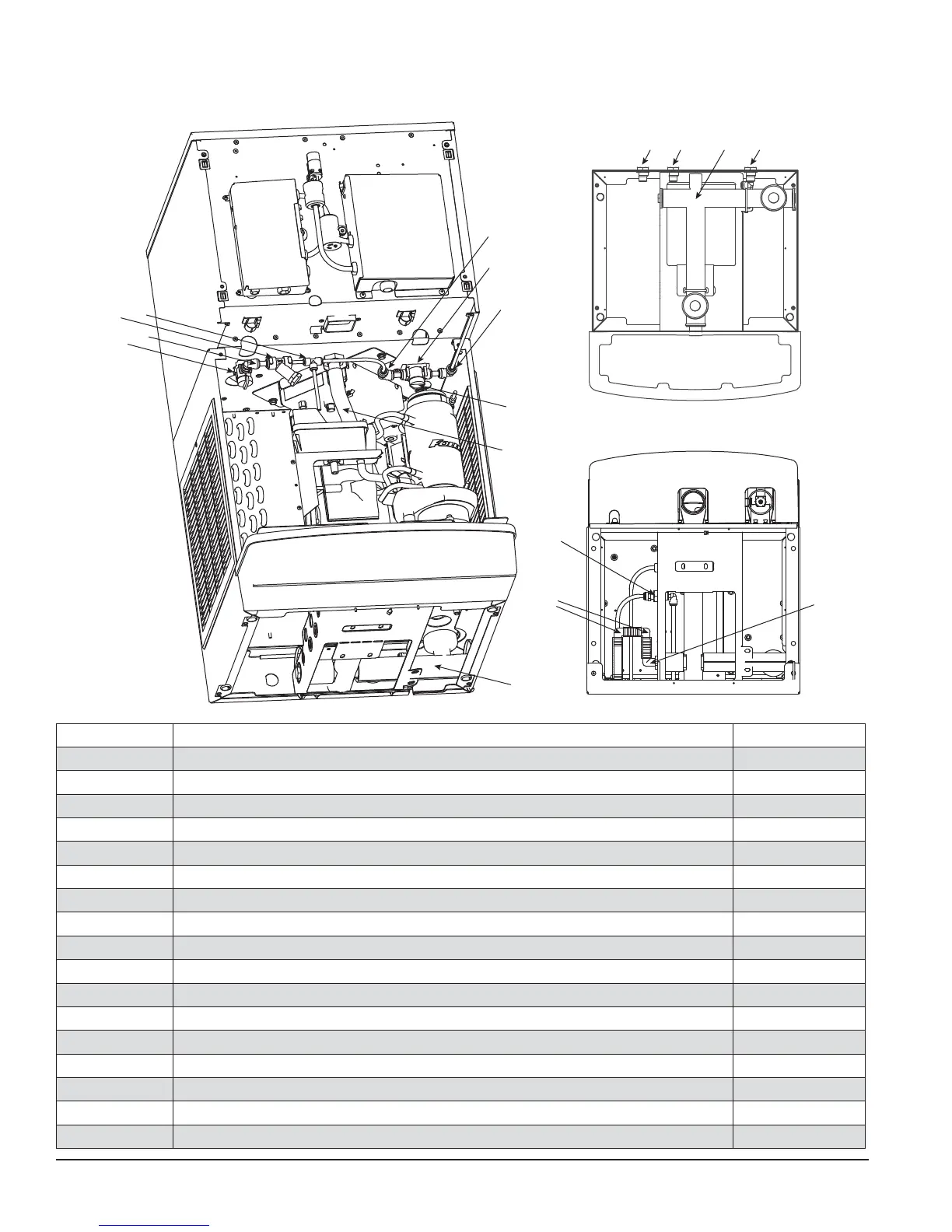

Water and drain
Countertop connections (CI)
(top view)
Wall mount connections (HI)
(bottom view)
12
13
14
1
6
5
3
2
3
4
1
7
8
9 10 118
Reference Description Part #
1 Valve, water shut off 502921
2 Clip, shut off valve 502922
3 Elbow, 1/4" x 3/8" 00134502
4 Tee, 1/4" 502923
5 Strainer 502920
6 Elbow, 3/8" 502925
7 Drain tube, hopper 00184549
8 Drain, waste 00195958
9 Fitting, water-cooled condenser inlet 00195966
10 Fitting, water-cooled condenser outlet 00195966
11 Fitting, ice machine water inlet 00137315
12 Fitting, 3/8" tube X 3/8" MPT 00901652
Not shown Fitting, 3/8" tube X 1/2" MPT 00901660
13 Fitting, 90° elbow, 3/4" barb X 3/4" MPT 00901678
Not shown Bottom cover, 25/50HI with drain pan 00196113
Not shown Bottom cover, 25/50HI without drain pain 00198341
14 Fitting, 90° elbow, 3/4" barb X 3/4" barb 00145144
