Follett 25CI400A - Ice Machine Mechanical and Electrical Parts

25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 43
Ice machine replacement parts

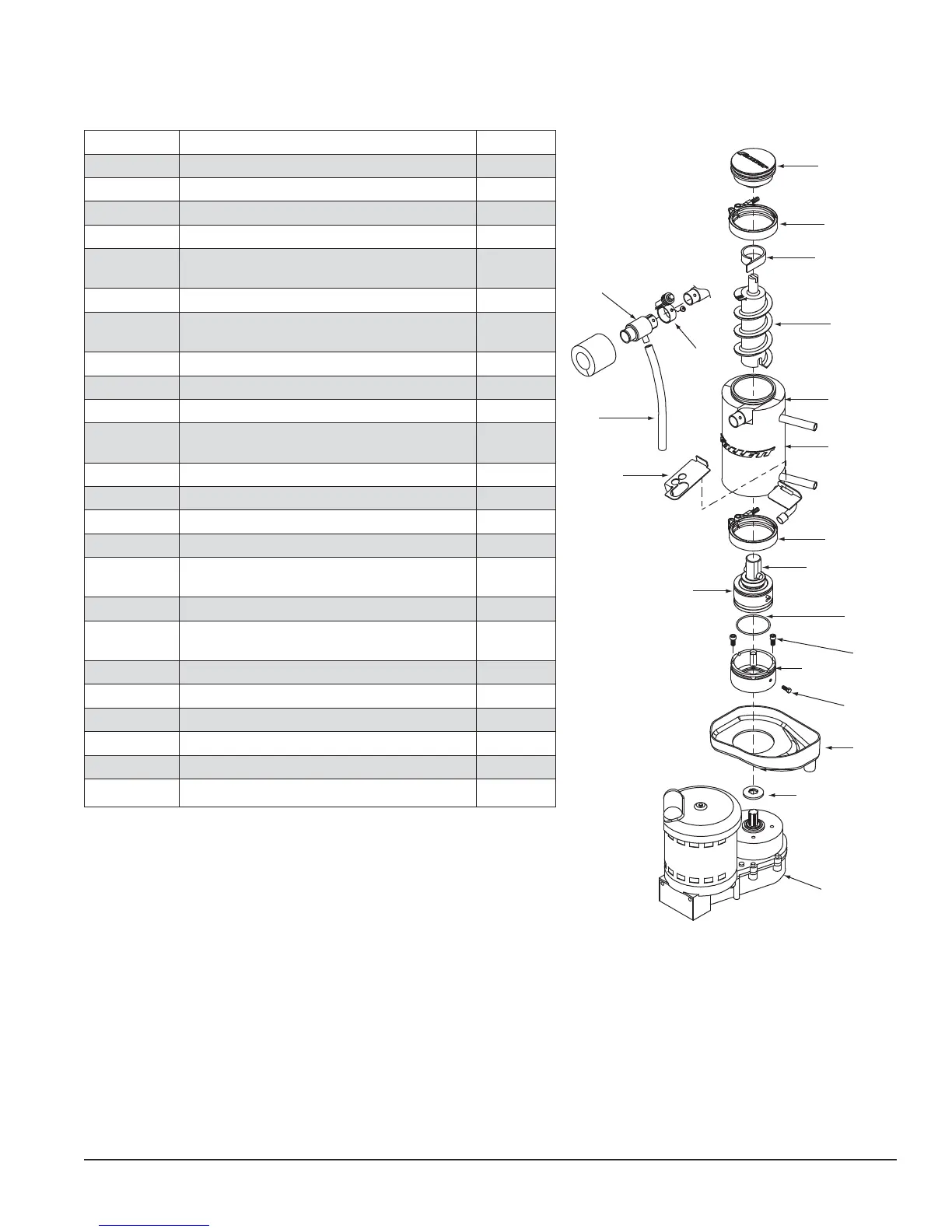

Evaporator
Reference Description Part #
1 Coupling, vee band, includes nut 502735
2 Bearing assembly, top 502736
3 Loop, ice compression, beveled 502110
4 Auger 502737
5 Evaporator (includes insulation jacket,
502740)
502725
6 O ring, bearing housing 500496
7 Bearing assembly, bottom (includes O
rings and condensate shield)
502738
8 O ring, mounting base 501063
9 Shield, condensate 500744
10 Screw, Allen 1/4 20 x 1/2 (set of 4) 501080
11 Mounting base, evaporator
(includes501063)
502733
12 Bolt, mounting base 502227
13 Gearbox & motor assembly 502730
Not shown Mounting base, gearbox 00164046
15 Compression nozzle, with single drain 502221
16 Drain pan, evaporator (includes
00185421)
00192914
17 Clamp, compression nozzle and screw 502226
18 Tubing, compression nozzle drain(s)
(sold by foot)
500680
Not shown Grease, Chevron SRI-2, 14oz 501111
19 Bracket, drain hose 502739
20 Insulation jacket, evaporator 502740
Not shown Relay, start, gearmotor 502742
Not shown Oil, gearmotor (1 pint) 502775
Not shown Tube, evaporator drain 00901439
