Follett 25CI400A - Component Parts and Diagrams; Dispenser Exterior and Internal Parts

34 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Dispenser replacement parts

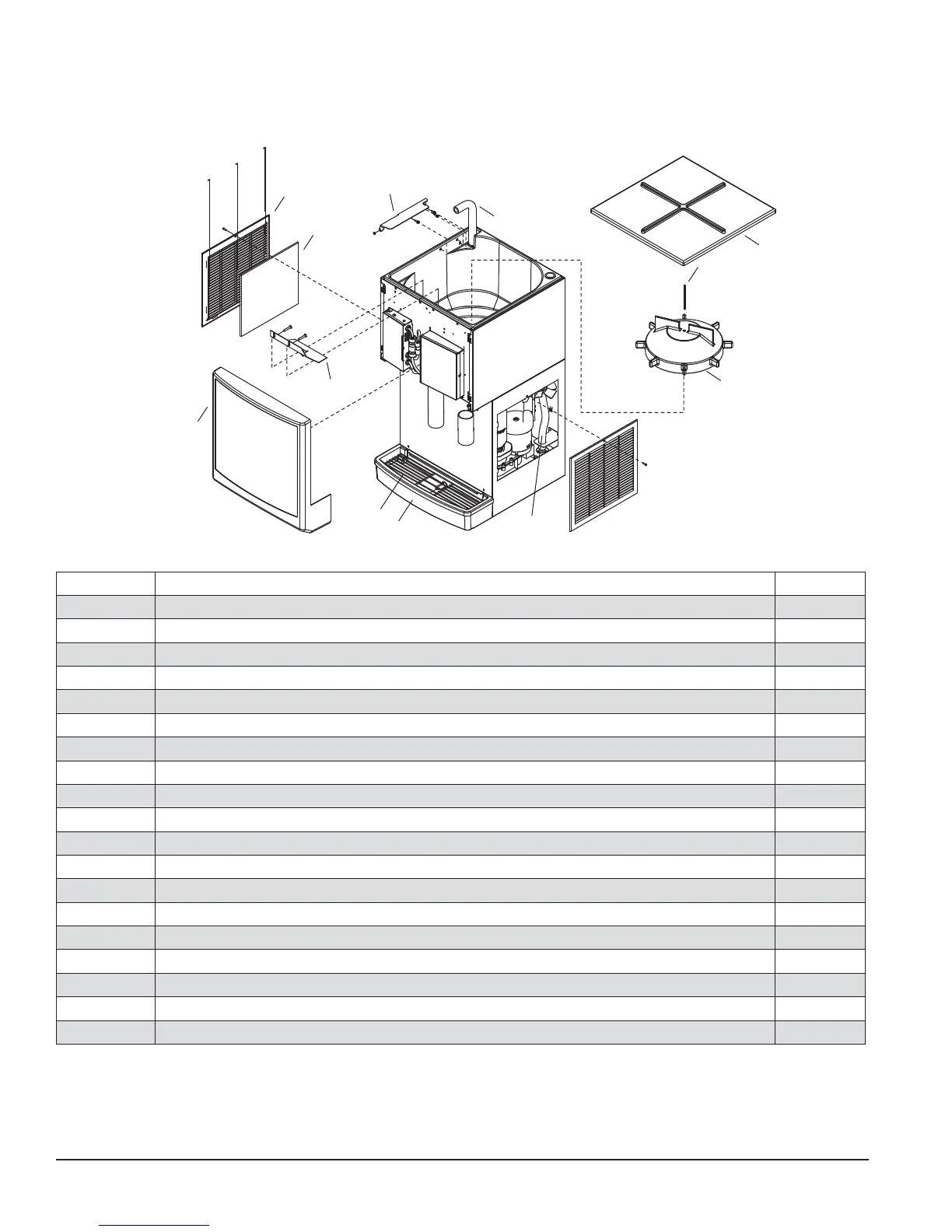

Dispenser exterior
1
3
9
8
7
13
10
5
6
4
2
12
11
Reference Description Part #
1 Baffle, ice 501608
2 Wheel, dispense (includes 501612) 502821
3 Bracket, ice tube 502712
4 Rod, threaded (includes knurled nut) 501612
5 Ice transport tube, 25 series 00196030
5 Ice transport tube, 50 series 00196048
6 Louver, exhaust 00192963
7 Drain pan 502682
8 Grille 502683
9 Cover, front 25 series 00192831
9 Cover, front 50 series 00192849
9 Cover, front 25 series, ice only 00969204
9 Cover, front 50 series, ice only 00969212
10 Air  lter 00184275
11 Louver, intake (includes 00184275) 00192955
12 Lid, hopper 502684
13 Drain tube, ice storage hopper 00900142
Not shown Drain pan protector 00195974
Not shown Wall mount bracket and cover plate 00902080
