20 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

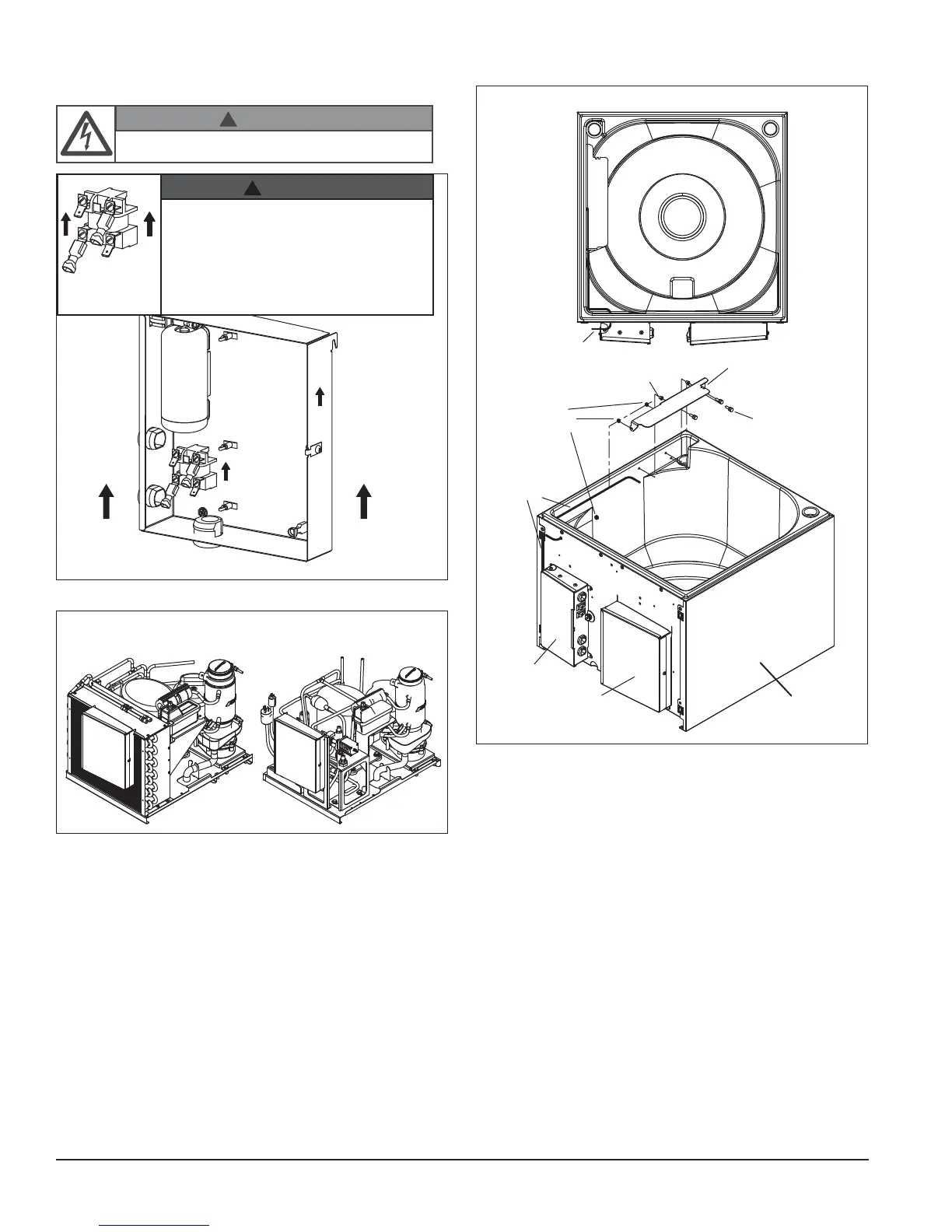

Electrical component locations
bin thermostat
capillary tube
ice level
control stat
Top View
ice tube
mounting bracket
well nut
knurled screw
rubber
grommet
icemaker
electrical
box
dispenser
electrical
box
hopper
assembly
Electrical systems
To reduce risk of shock disconnect power before
servicing.
!
WARNING
T
O
P
• Electrical box must be in “UP” position
before supplying power
• Start relay is gravity sensitive, and MUST
be in “UP” position
• Failure to comply may cause equipment
to overheat, resulting in equipment failure,
equipment damage or fire hazard
!
WARNING
icemaker
electrical box
TOP
icemaker
electrical
box
icemaker
electrical
box
Air-cooled icemaker
Water-cooled icemaker
