25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 29

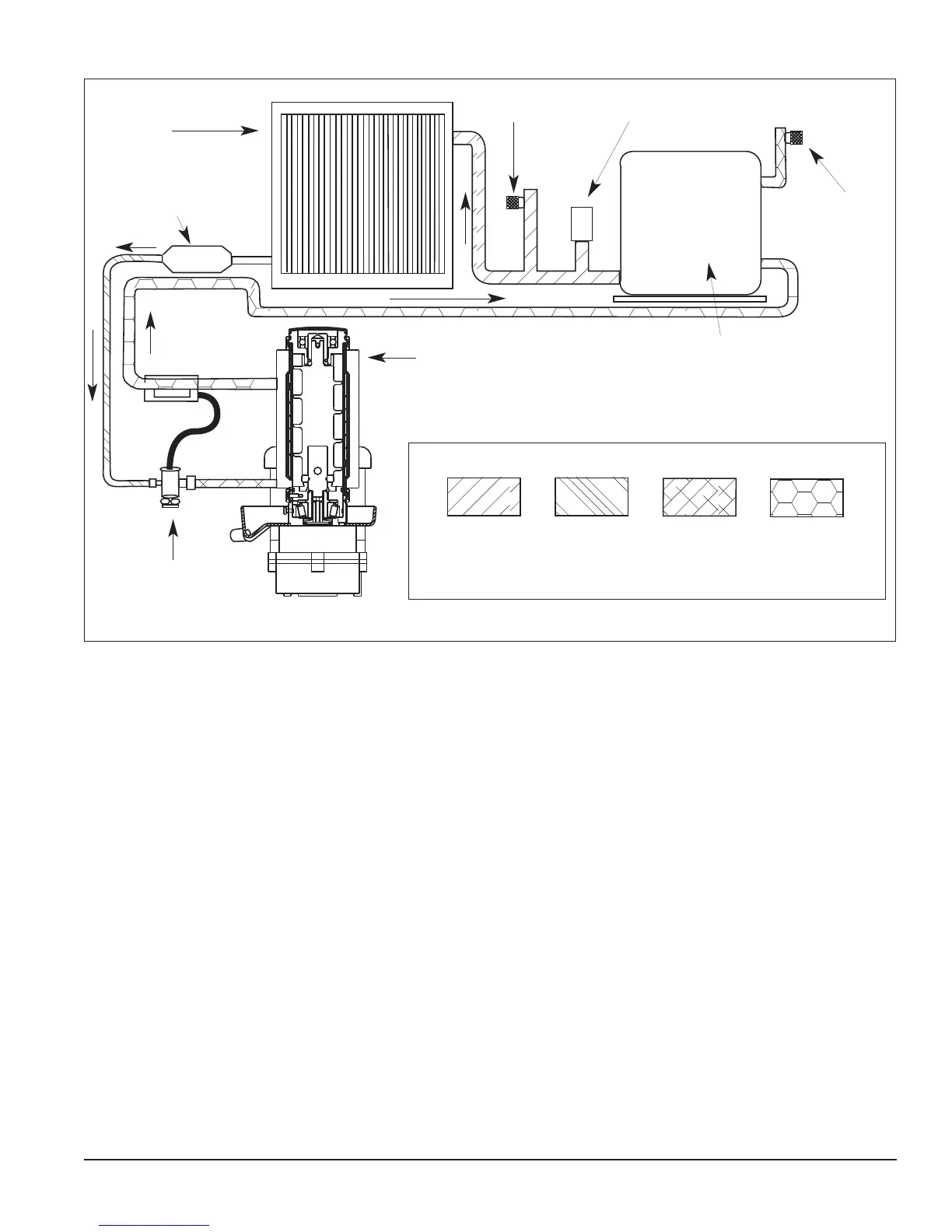

Refrigeration cycle
condenser
filter dryer
thermostatic
expansion
valve
evaporator
high side
service port
low side
service port
high pressure
switch
compressor
high
pressure
vapor
low
pressure
vapor
high
pressure
liquid
low
pressure
liquid
