25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 9

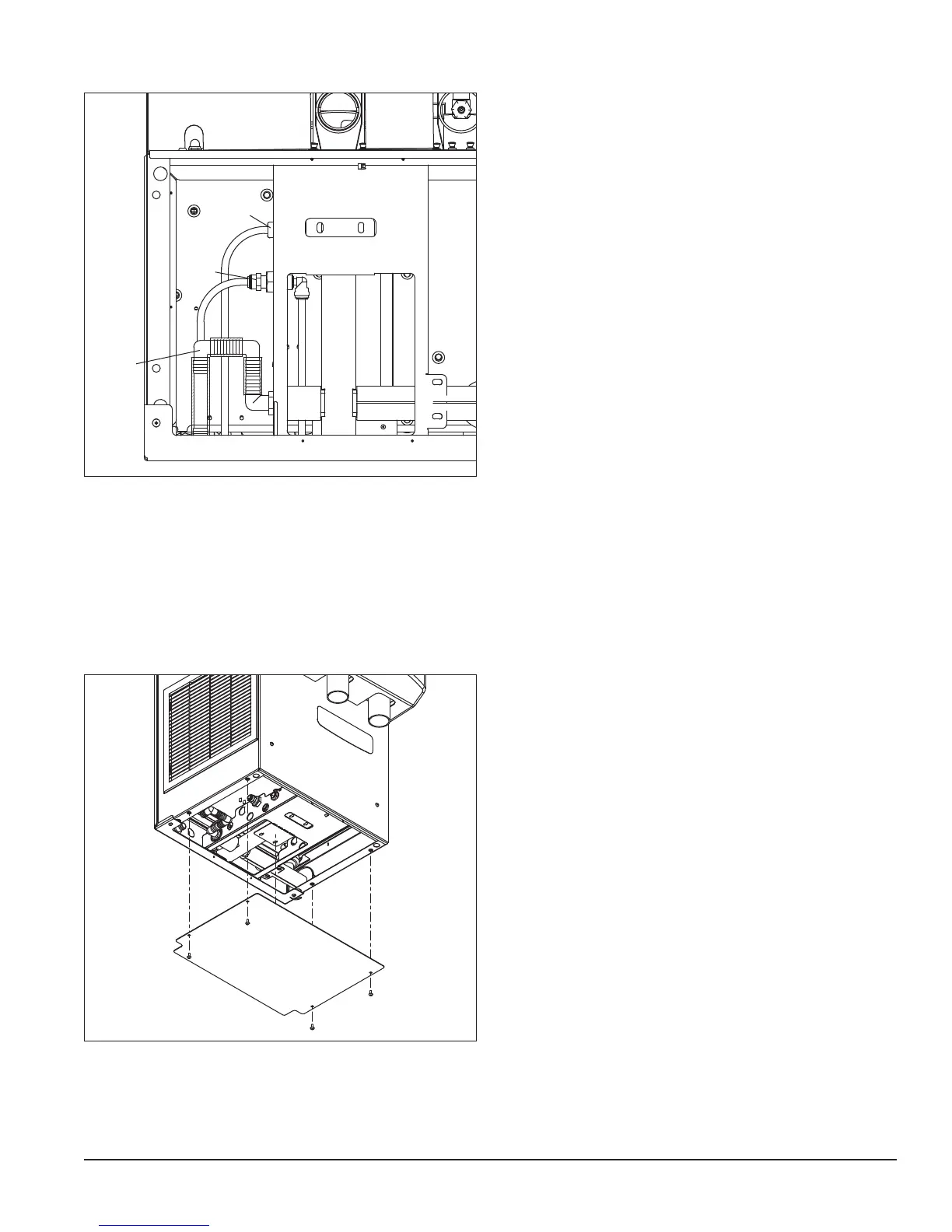

Fig. 10
Dispenser bottom view
10.1
10.3
10.2
7. Connect supplied 3/8" water line between water
supply and water inlet fitting (Fig. 10.1).
8. Using supplied 3/4" drain tubing and barbed fittings,
connect 3/4" barbed drain elbow  tting on dispenser
to 3/4" FNPT drain (Fig. 10.2).
9. Route power cord through utility access hole to
power supply (Fig. 10.3).
10. Turn on water supply and check for leaks.
Fig. 11
11. Install bottom panel (Fig. 11).
