FLOW PARAMETER 1
DGN UNT PRM EXIT
DIAGNOSTIC
SIM TST EXIT
FloSim=0 SCFM
CHG OK
TmpSim=0 ° F
CHG OK
CsvSim=0 V
CHG OK
ENABLE SIM?
YES NO
Note: simulaon
value needs to be
greater than zero
to be taken
(i.e 0.0001 for a
value close to
zero)
FLO UNT=SCFM
NXT OK
SCFM
SCFH
NM3/H
NM3/M
KG/H
KG/M
KG/S
LBS/H
LBS/M
LBS/S
NLPH
NLPM
SMPS
NMPS
SFPM
MMSCFD
LBS/D
SLPM
NLPS
MSCFD
SM3/H
MT/H
NM3/D
MMSCFM
MCFD
SCFD
SM3/M
SM3/D
TMP UNT=° F
NXT OK
Deg F
Deg C
TmpRef= 0 °F
CHG OK
PRES UNT=mmHG
NXT OK
PresRef=760
CHG OK
mmHG
Psia
bara
STP
Simulate Flow?
YES NO
Simulate Temp?
YES NO
Simulate CSV?
YES NO
Flow Parameter 2 Menu, p. 11
Diagnostic Test Menu, p. 13
Model FT3
Introduction | 10
Introduction

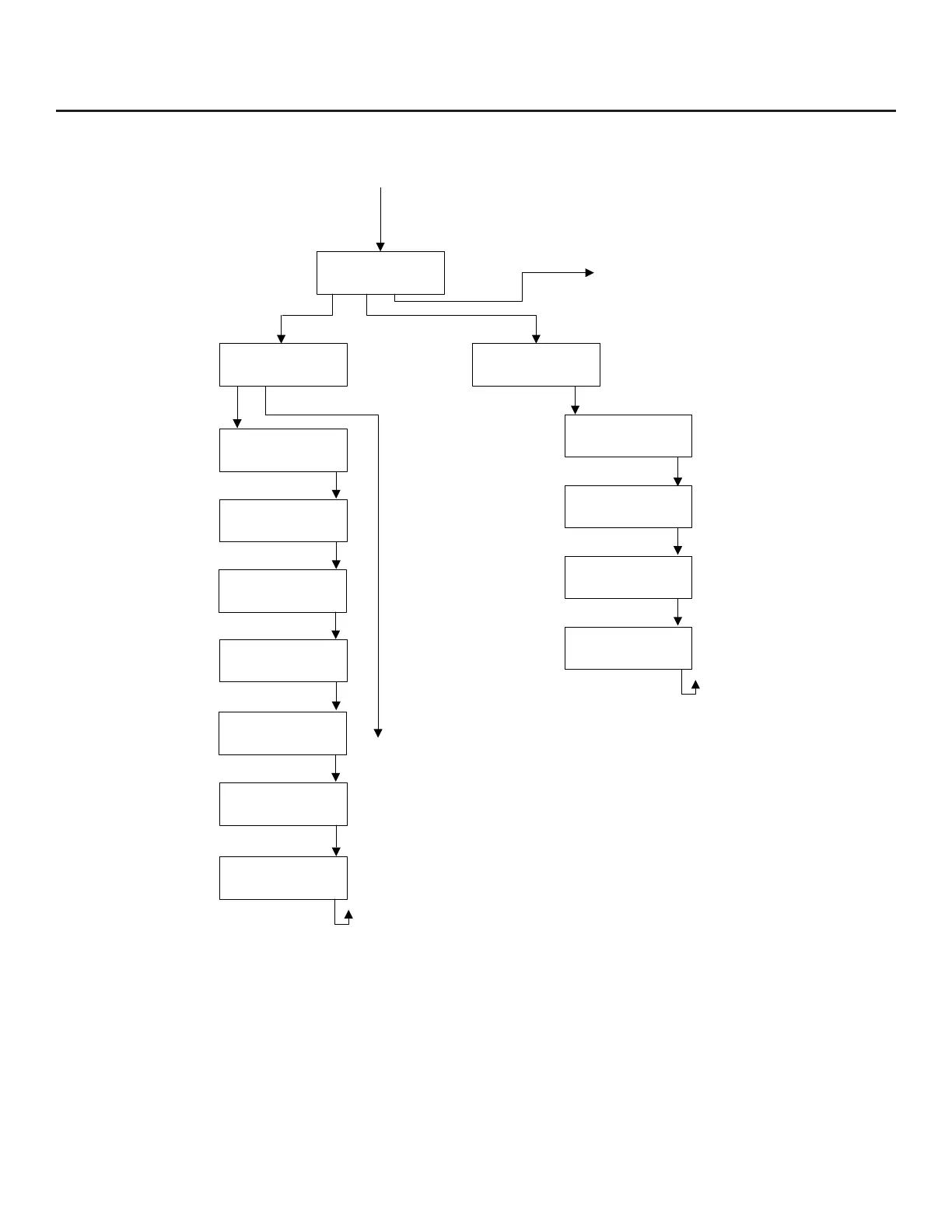

Fig. 1.3: FT3 Menu Tree - Flow Parameter 1
