“LL”
“HH”
2x 3/4 inch NPT Female
4.6
(11.7)
5.2
(13.2)
F1 F2
F3 F4
8.1
(20.6)
4.3
(10.9)
FLOW
L
C
Signal
Wiring
Input
Power

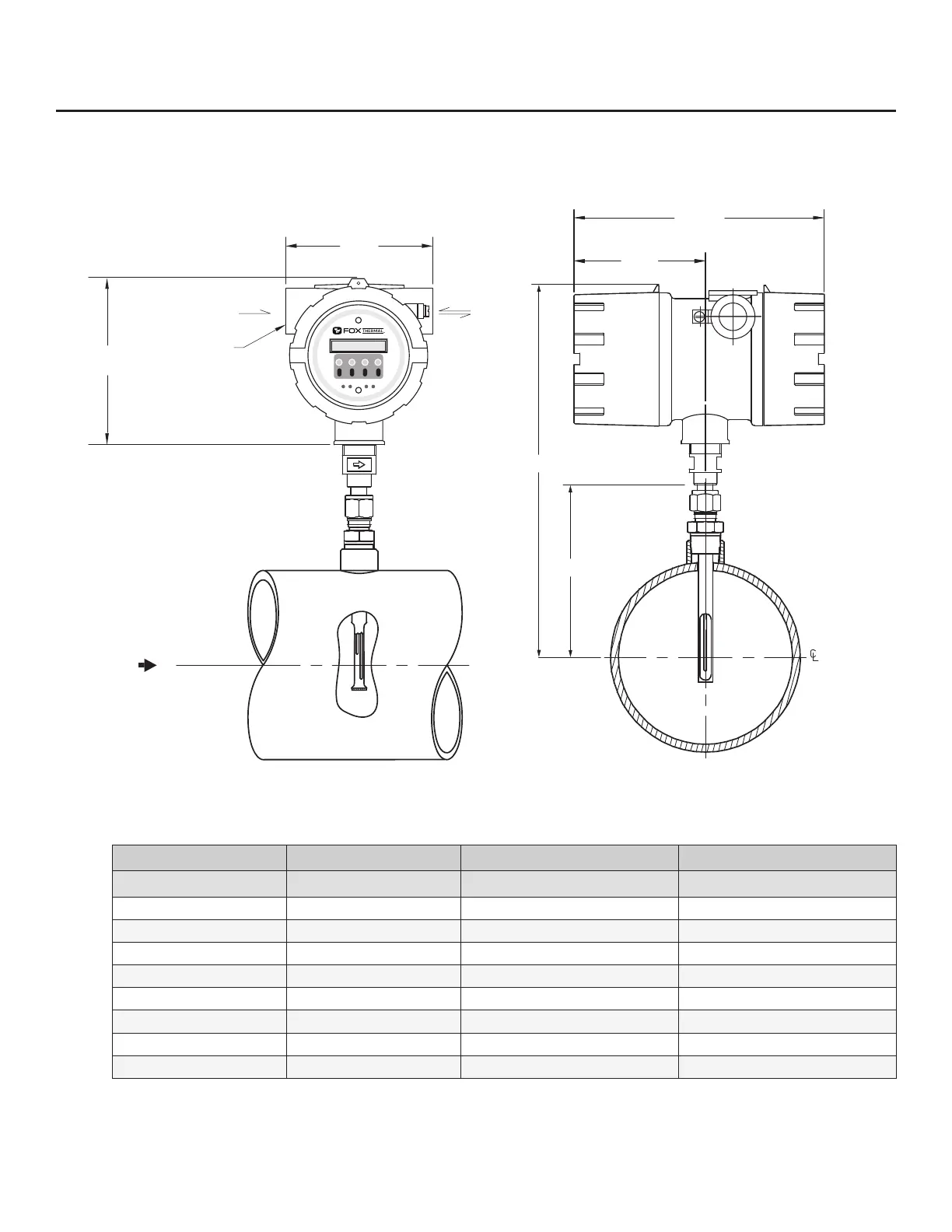

Fig. 8.4: Insertion Meter Dimensions
Appendix | 129
Model FT3
Appendix
Table 8.4: Insertion Meter with 316 stainless steel probe
Probe Size Probe Size Dimension “LL” ± .10 Dimension "HH" ± .10
[model code] [inches] [inches / millimeters] [inches / millimeters]
06IE 6" 6.0" (152mm) 12.9" (318mm)
09I 9" 9.0" (229mm) 15.5" (394mm)
12I 12" 12.0" (305mm) 18.5" (470mm)
15I 15" 15.0" (381mm) 21.5" (546mm)
18I 18" 18.0" (457mm) 24.5" (622mm)
24I 24" 24.0" (610mm) 30.5" (775mm)
30I 30" 30.0" (762mm) 36.5" (927mm)
36I 36" 36.0" (914mm) 42.5" (1080mm)
