F1 F2
F3 F4
FLOW
L
C
3.6
(9.1)
4.4
(11.2)
2.0
(5.1)
4.5
(11.4)
“HH”
Remote Cable, 5 Conductor,
Shielded, 100ft (30.48m) Max.
“LL”
5.2
(13.2)
4.6
(11.7)
Input
Power
2x 3/4 inch
NPT Female

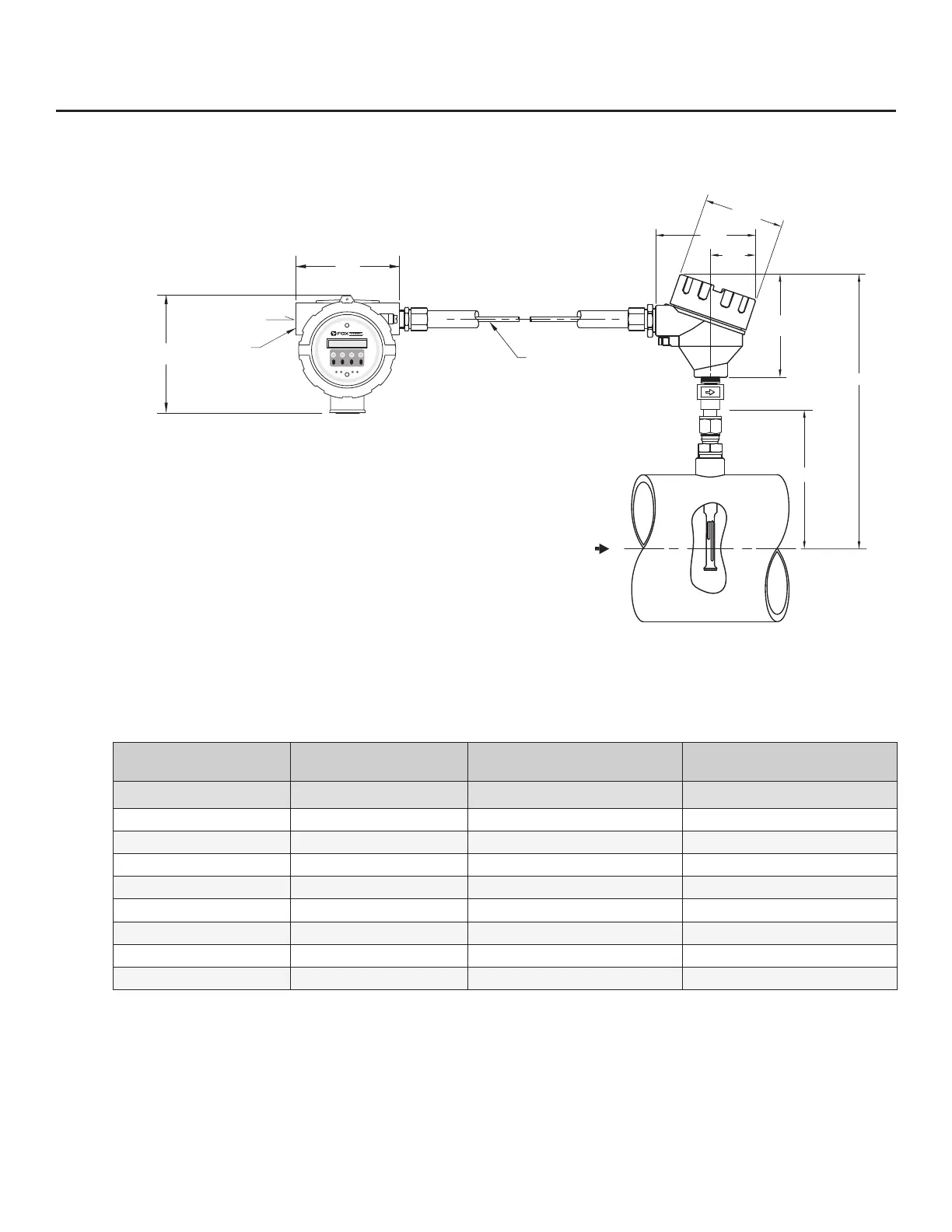

Fig 8.5: Insertion Remote Meter Dimensions
Appendix | 130
Model FT3
Appendix
Table 8.5: Insertion Remote Meter with 316 stainless steel probe
Probe Size Probe Size Dimension “LL” ± .10 Dimension “HH” ± .10
[model code] [inches] [inches / millimeters] [inches / millimeters]
06IE 6" 6.0" (152mm) 11.9" (302mm)
09I 9" 9.0" (229mm) 14.9" (379mm)
12I 12" 12.0" (305mm) 17.9" (455mm)
15I 15" 15.0" (381mm) 20.9" (531mm)
18I 18" 18.0" (457mm) 23.9" (607mm)
24I 24" 24.0" (610mm) 29.9" (760mm)
30I 30" 30.0" (762mm) 35.9" (912mm)
36I 36" 36.0" (914mm) 41.9" (1064mm)
