Appendix | 131
Model FT3
Appendix
2x 3/4 inch NPT Female
“H”
“L”
L
C
2x NPT Male Thread
4.6
(11.7)
5.2
(13.2)
F1 F2
F3 F4
8.1
(20.6)
4.3
(10.9)
Signal
Wiring
Input
Power

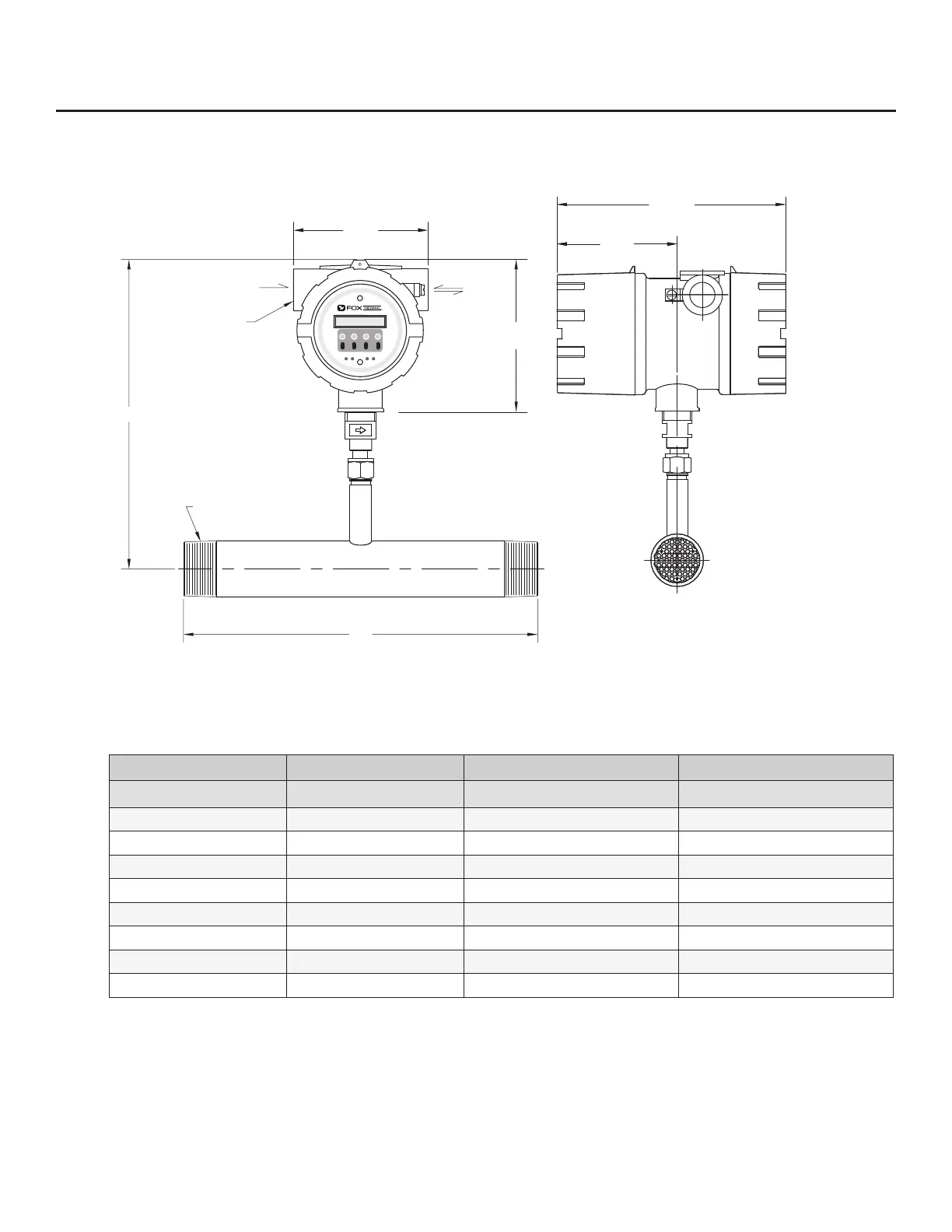

Fig. 8.6: Inline Meter with Flow Body and NPT End Connections Dimensions
Table 8.6: Inline Meter with Flow Body and NPT End Connections
*Available in 316 stainless steel only.
**Available in 316 stainless steel or A106 Grade B Carbon steel pipe.
Body Size Body Size Dimension “L” ± .10 Dimension “H” ± .10
[model code] [inches] [inches] [inches / millimeters]
05P * 0.50" 12" 10.5" (267mm)
075P * 0.75" 12" 10.5" (267mm)
10P * 1.00" 12" 10.5" (267mm)
125P * 1.25" 12" 10.5" (267mm)
15P * 1.50" 12" 10.5" (267mm)
20P ** 2.00" 12" 10.5" (267mm)
25P ** 2.25" 18" 10.6" (269mm)
30P ** 3.00" 18" 12.5" (318mm)
