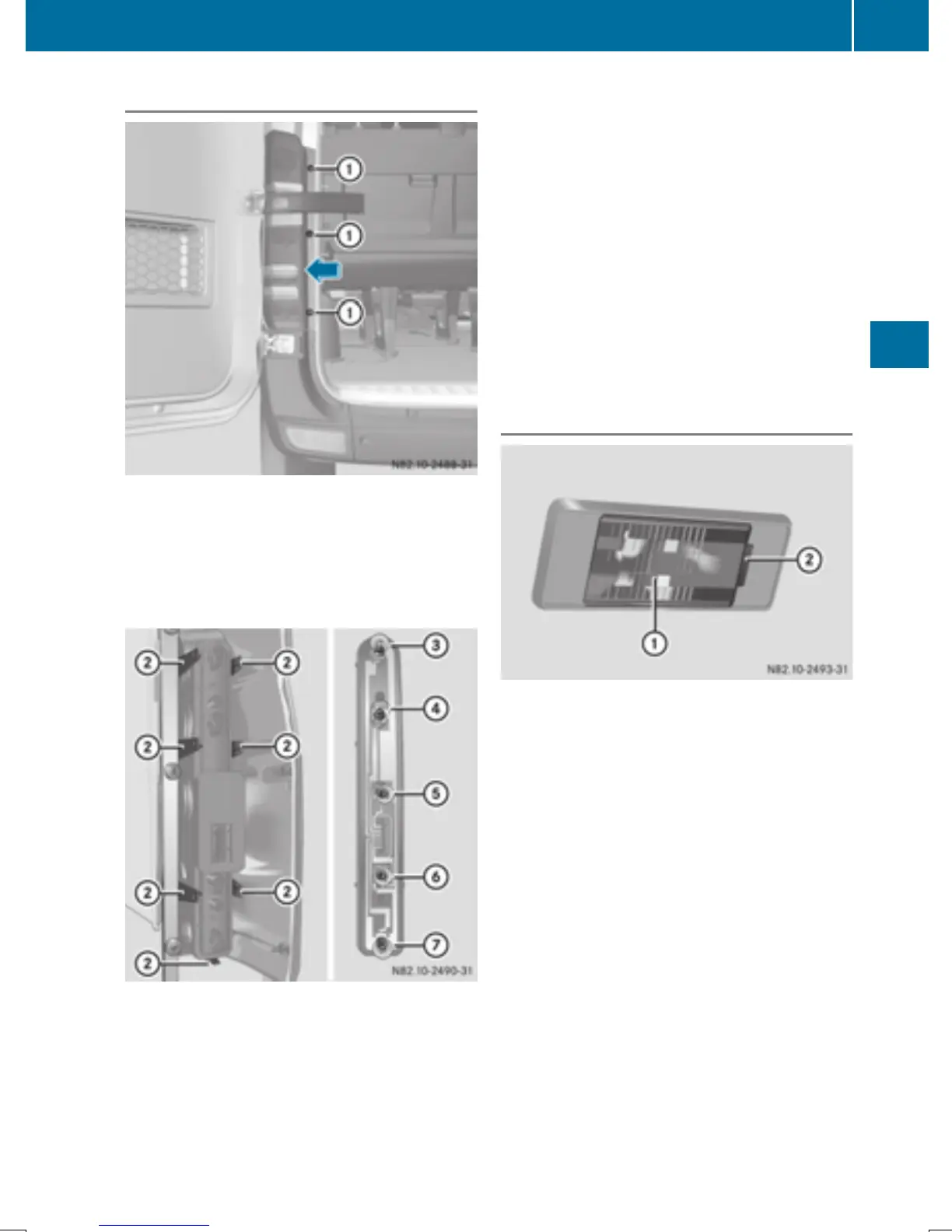

Tail lamps
X
Switch off the lighting system.
X
Open the rear door.
X
Undo screws : and unclip the lamp lens in
the direction of the arrow.
X
Pull the connector off the bulb holder.
;
Retaining lugs
=
Brake lamps
?
Turn signal lamps
A
Standing lamp/tail lamp
B
Backup lamps
C
Rear fog lamp
X
Release retaining lugs ; and take the bulb
holder out of the tail lamp.
X
Applying light pressure to the bulb, turn it
counter-clockwise and remove it from the
bulb holder.
X
Press the new bulb into the bulb holder and
screw it in clockwise.
X
Press the connector into the bulb holder.
X
Insert the lamp lens.
To do this, clip the bulb holder into the three
holes provided at the side and tighten
screws :.
License plate lamp
X
Switch off the lighting system.
X
Insert a screwdriver or similar implement
into recess ; and carefully pry off lamp
lens :.
X
Pull the bulb out of the bulb holder.
X
Insert a new bulb.
X
Align lamp lens : and clip it in so that it
engages.
Changing bulbs
103
Lights and windshield wipers
