Useful information
This Operator's Manual describes all models
as well as standard and optional equipment of
your vehicle that were available at the time of
going to print. Country-specific variations are
possible. Note that your vehicle may not be
equipped with all of the described functions.
This also applies to systems and functions
relevant to safety.
Read the information on qualified specialist
workshops (Y page 25).
Where will I find...?

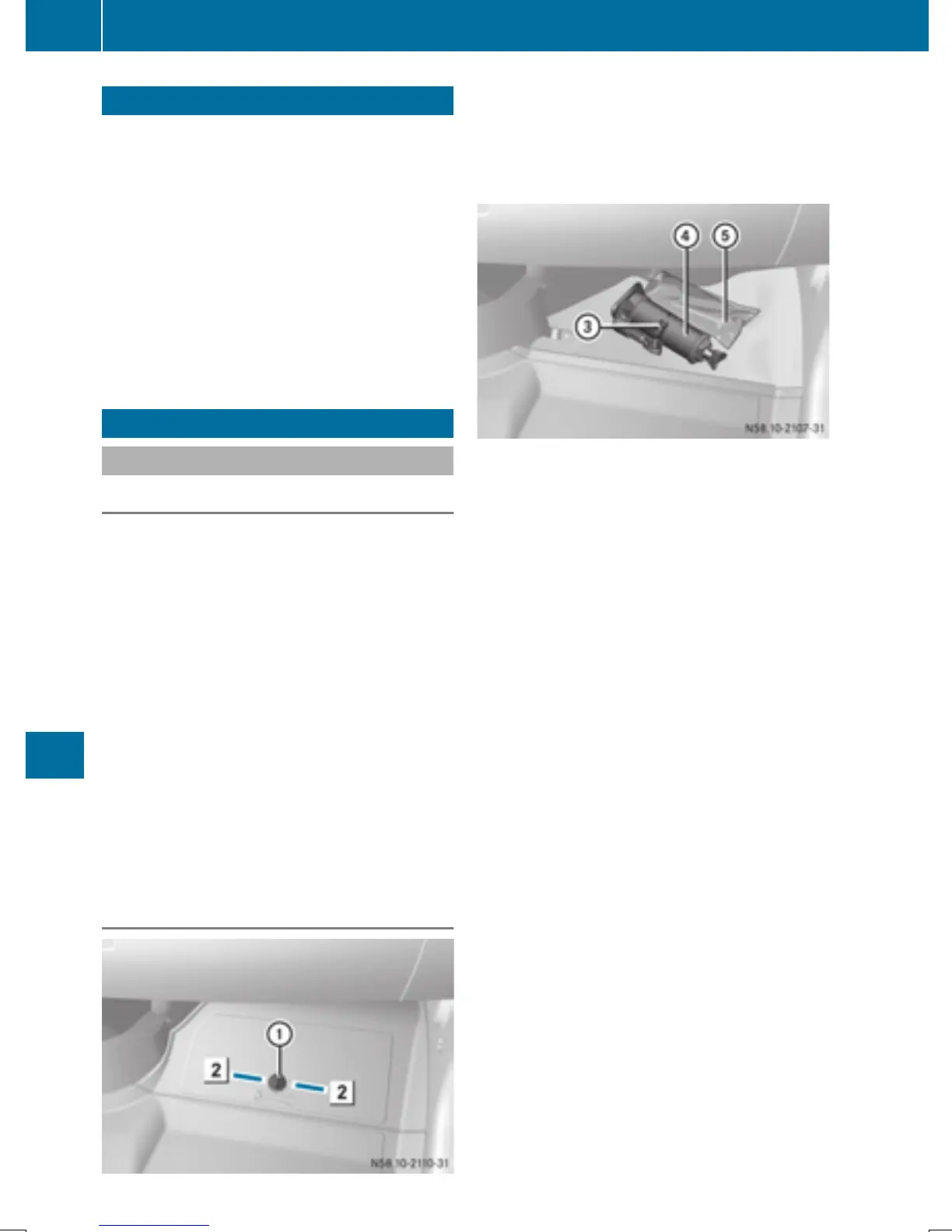

Vehicle tool kit
General notes
The vehicle tool kit is in the stowage com-
partment in the footwell on the co-driver's
side.
The vehicle tool kit consists of:
R
a towing eye
R
a screwdriver with Torx, Phillips and slotted
bits
If your vehicle is equipped with a spare wheel
bracket and a jack, the vehicle tool kit addi-
tionally contains:
R
a wheel wrench
R
a spanner
R
a pump lever rod
Stowage compartment in the co-driv-
er's footwell
Unlocking and removing the cover
X
Turn quick-release fastener : counter-
clockwise or clockwise 2.
X
Slightly raise and pull out the cover.
Removing the vehicle tool kit and the jack
X
Remove vehicle tool kit A.
X
Pull up quick-release lever = and unhook
the retaining strap of jack ?.
X
Lift jack ? upwards out of the holder.
i
When stowing away the jack, place it in
the holder as shown in the illustration.
Make sure that the retaining strap of the
jack is hooked in and tensioned.
Inserting and engaging the cover
X
Slide in the cover and fold it down.
X
Press down quick-release fastener : until
it engages.
