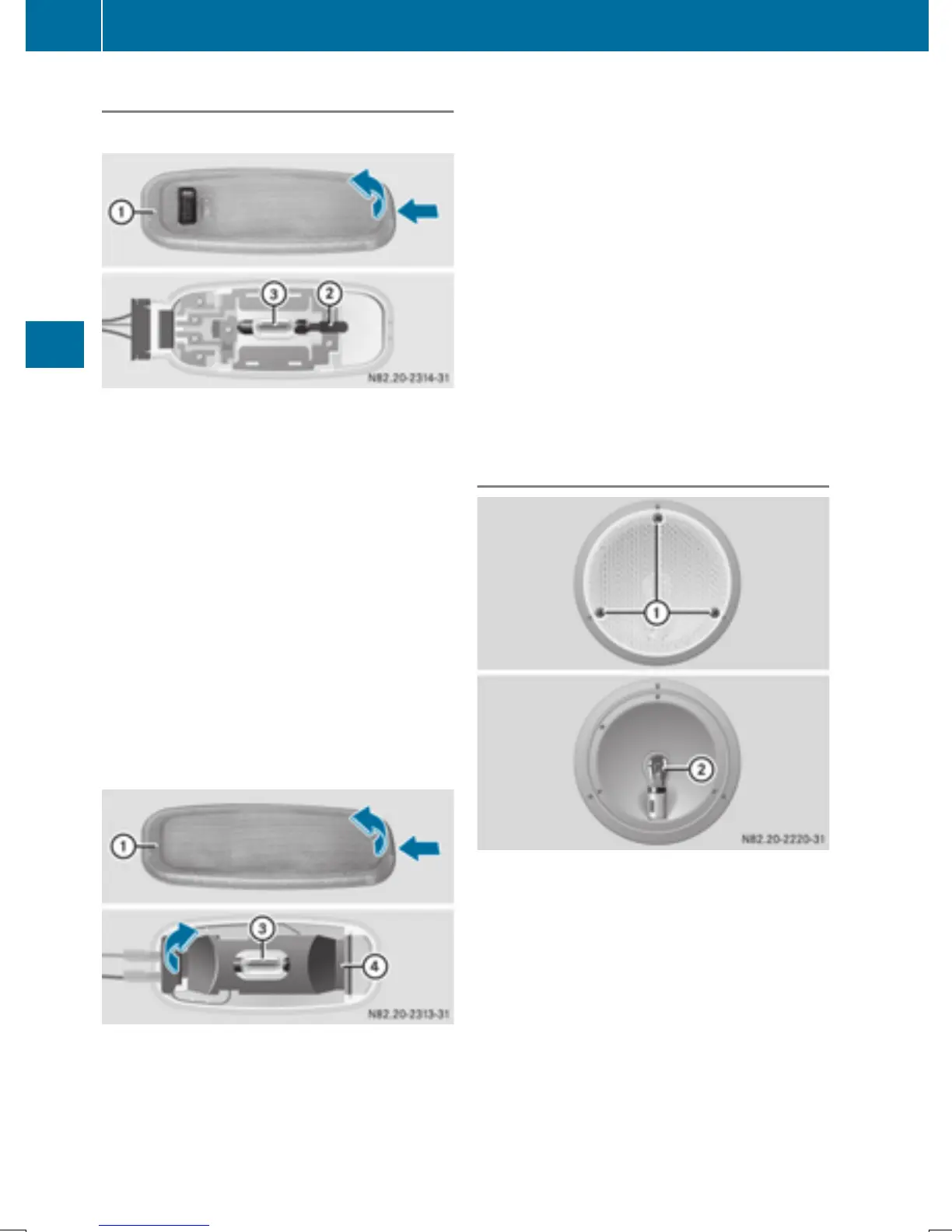

Rear interior light
Interior light with switch
Interior light with switch
Type of lamp: K 15 W
X
Switch off the interior lighting.
X
Press in the catch springs of lamp hous-
ing : with a suitable object and pry off
lamp housing :.
X
Press the contact spring of bulb holder ;
outwards and remove bulb =.
X
Insert a new bulb =.
X
Align lamp housing : on the left-hand side
and engage.
i
Vehicles with LED lighting: if an LED is
faulty, consult a qualified specialist work-
shop.
Interior light without switch
Interior light without switch
Type of lamp: K 15 W
X
Switch off the interior lighting.
X
Press in the catch springs of lamp hous-
ing : with a suitable object and pry off
lamp housing :.
X
Open protective cover ?.
X
Press the contact spring of bulb holder ;
outwards and remove bulb =.
X
Insert new bulb =.
X
Fold protective cover ? back into place.
X
Align lamp housing : on the left-hand side
and engage.
i
Vehicles with LED lighting: if an LED is
faulty, consult a qualified specialist work-
shop.
Cargo compartment lamp
Type of lamp: W 10 W
X
Switch off the interior lighting.
X
Undo screws : and remove the lamp lens.
X
Press bulb ; into the bulb holder and
unscrew it counter-clockwise.
X
Press new bulb ; into the bulb holder and
screw it in clockwise.
X
Position the lamp lens and tighten
screws :.
i
Vehicles with LED cargo compart-
ment lamp: if an LED is defective, consult
a qualified specialist workshop.
106
Changing bulbs
Lights and windshield wipers
