Removing/installing the starter bat-
tery

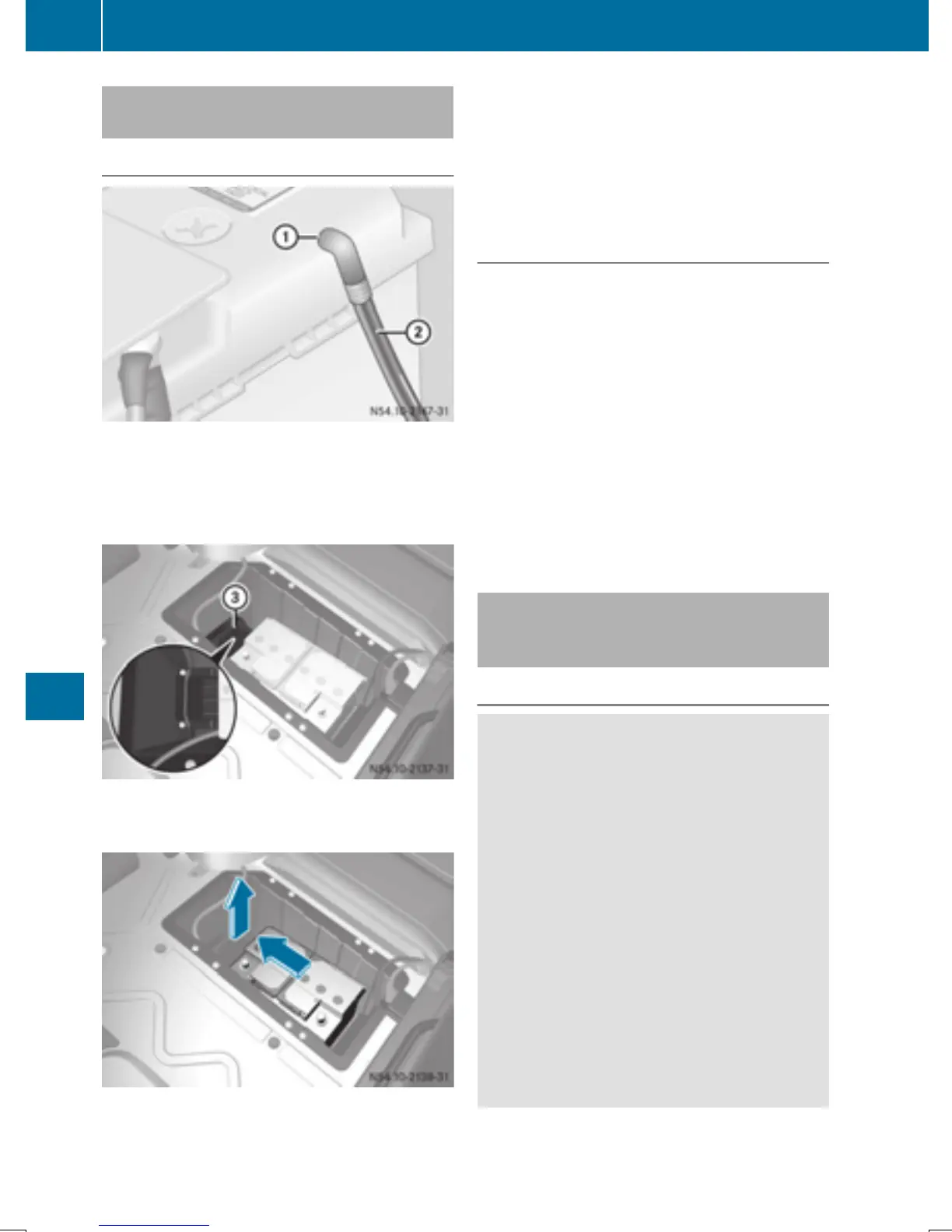

Removing the starter battery
X
Disconnect the battery (Y page 260).
X
Pull breather hose with connector
bracket ; from connection : on the
degassing cover.
X
Loosen the bolts holding retainer =, which
prevents the battery from moving around.
X
Pull retainer = upwards.
X
Slide the battery from its anchorage in the
direction of travel.
X
Fold the bar of the battery upwards and
remove the battery from the battery case.
Installing the starter battery
X
Insert the battery into the battery case.
X
Fold down the bar of the battery.
X
Slide the battery into its anchorage in the
opposite direction to the direction of travel.
X
Insert retainer =.
X
Tighten the bolts on retainer = which
holds the battery in place.
X
Attach breather hose with connector
bracket ; to connection : of the venti-
lation cover.
X
Connect the battery (Y page 260).
Disconnecting and connecting the
additional battery (engine compart-
ment)
Important safety notes
G
WARNING
During the charging process, a battery produ-
ces hydrogen gas. If a short circuit occurs or
sparks are created, the hydrogen gas can
ignite. There is a risk of an explosion.
R
Make sure that the positive terminal of a
connected battery does not come into con-
tact with vehicle parts.
R
Never place metal objects or tools on a bat-
tery.
R
It is important that you observe the descri-
bed order of the battery terminals when
connecting and disconnecting a battery.
R
When jump-starting, make sure that the
battery poles with identical polarity are
connected.
