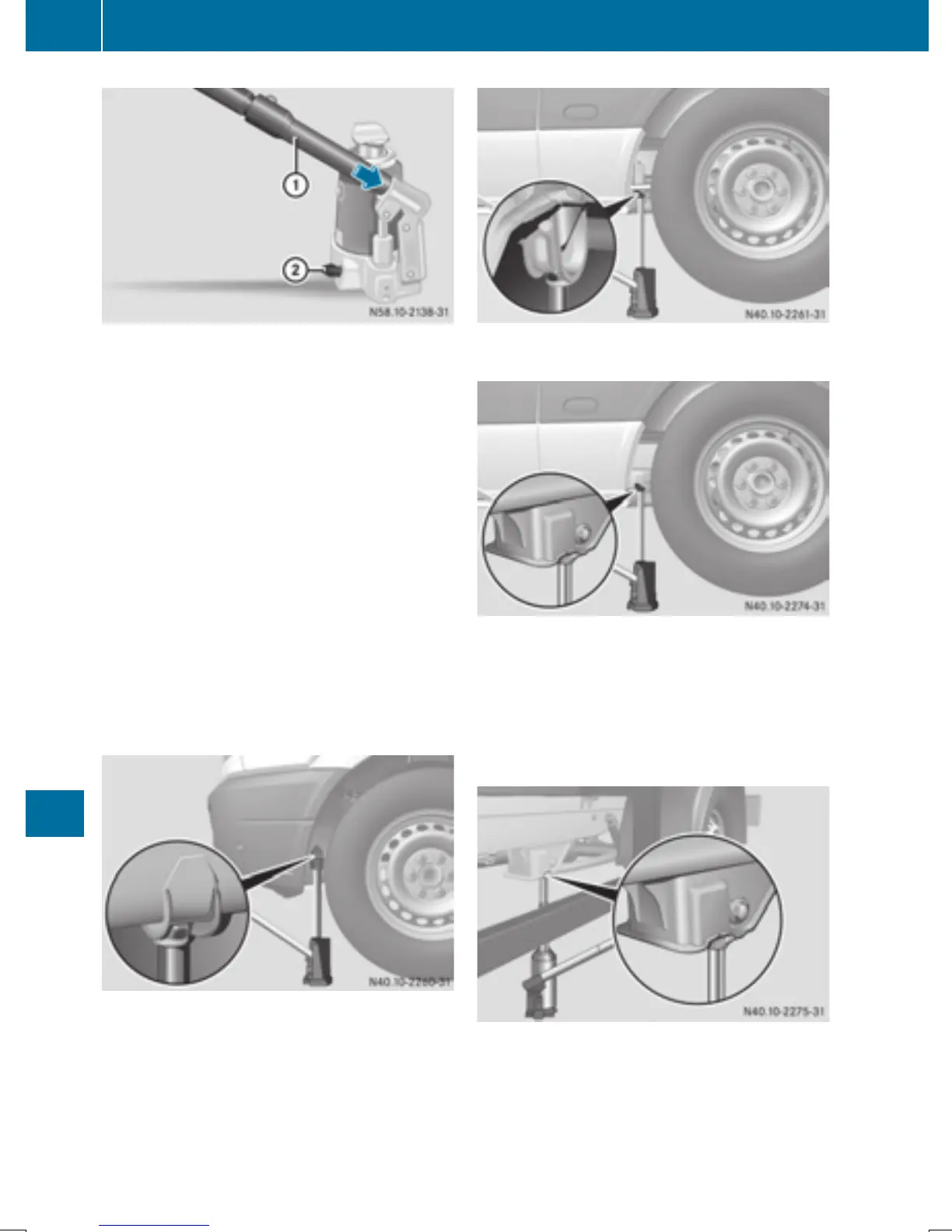

Hydraulic jack
Preparing the hydraulic jack
X
Insert the third rod of jack pump lever :
into the lug wrench extension.
Jack pump lever : is assembled.
X
Close pressure release screw ;.
X
To do this, use the flattened section on
pump lever : to turn pressure release
screw ; clockwise to the stop.
i
Do not turn pressure release screw ;
more than 1 or 2 full turns. Hydraulic fluid
could otherwise escape.
X
Insert pump lever : into the recess on the
jack and secure by turning it clockwise.
X
Place the jack vertically beneath the jack-
ing points described below.
Jacking point, front axle
Jacking point at the front axle
X
Place the jack under the longitudinal mem-
ber in front of the front axle.
Jacking point, rear axle (example: vehicle type
2500)
Jacking point, rear axle (example: vehicle type
3500)
Jacking point at the rear axle on vehicle
types 2500 and 3500
X
Place the jack under the longitudinal mem-
ber in front of the rear axle.
Jacking point, rear axle (example: Cab Chassis)
Jacking point at the rear axle on chassis
versions
X
Place the jack next to the front leaf spring
support beneath the jacking point.
308
Changing wheels
Wheels and tires
