VYPER
™
VARIABLE SPEED DRIVE
INSTALLATION - OPERATION - MAINTENANCE
100-210 IOM (JUL 09)
Page 14

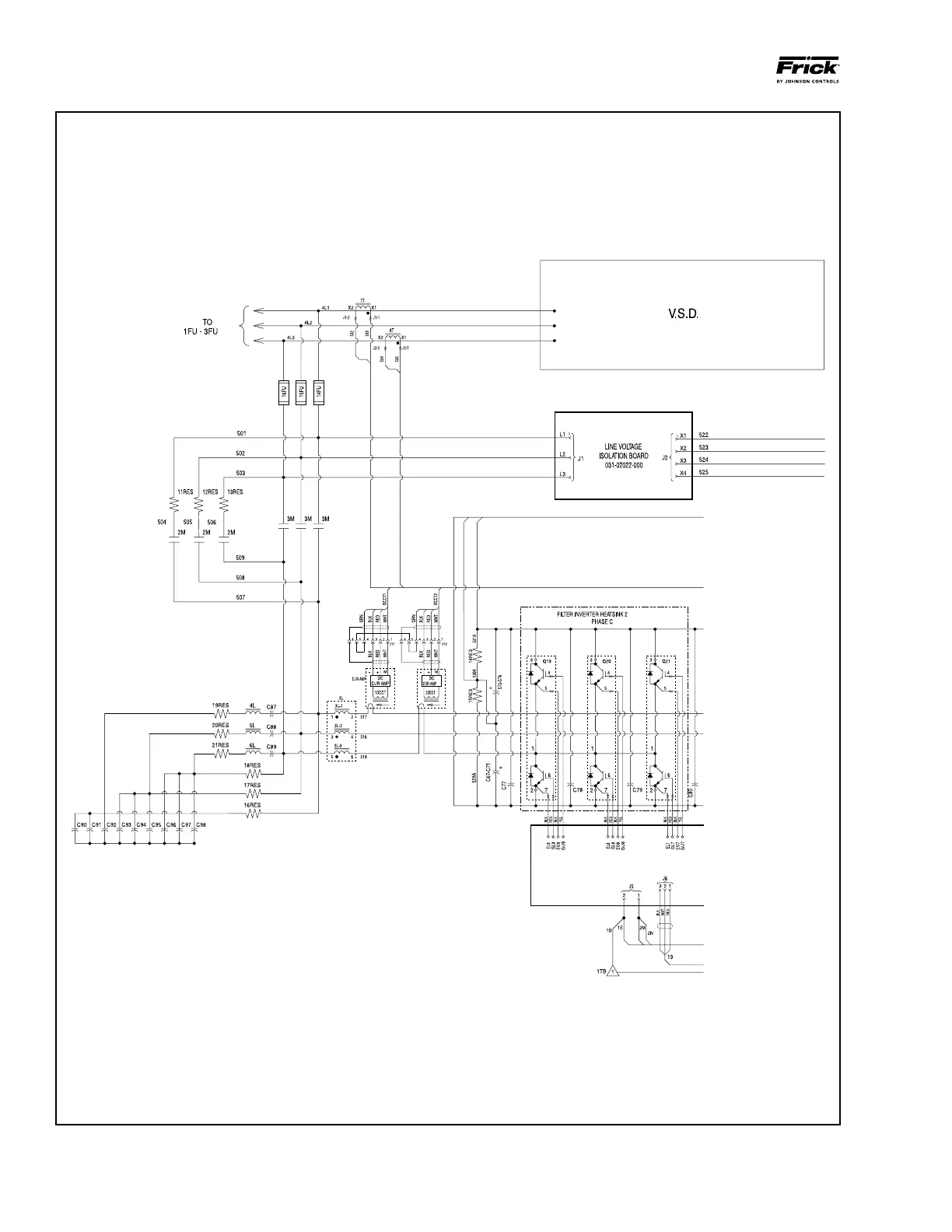

Figure 5A - Harmonic Filter Elementary Wiring Diagram
NOTE: Drawings for specific units can be
found in the door of the Vyper
TM
Drive or
check with Frick Engineering department.
