VYPER
™
VARIABLE SPEED DRIVE
INSTALLATION
100-210 IOM (JUL 09)
Page 21

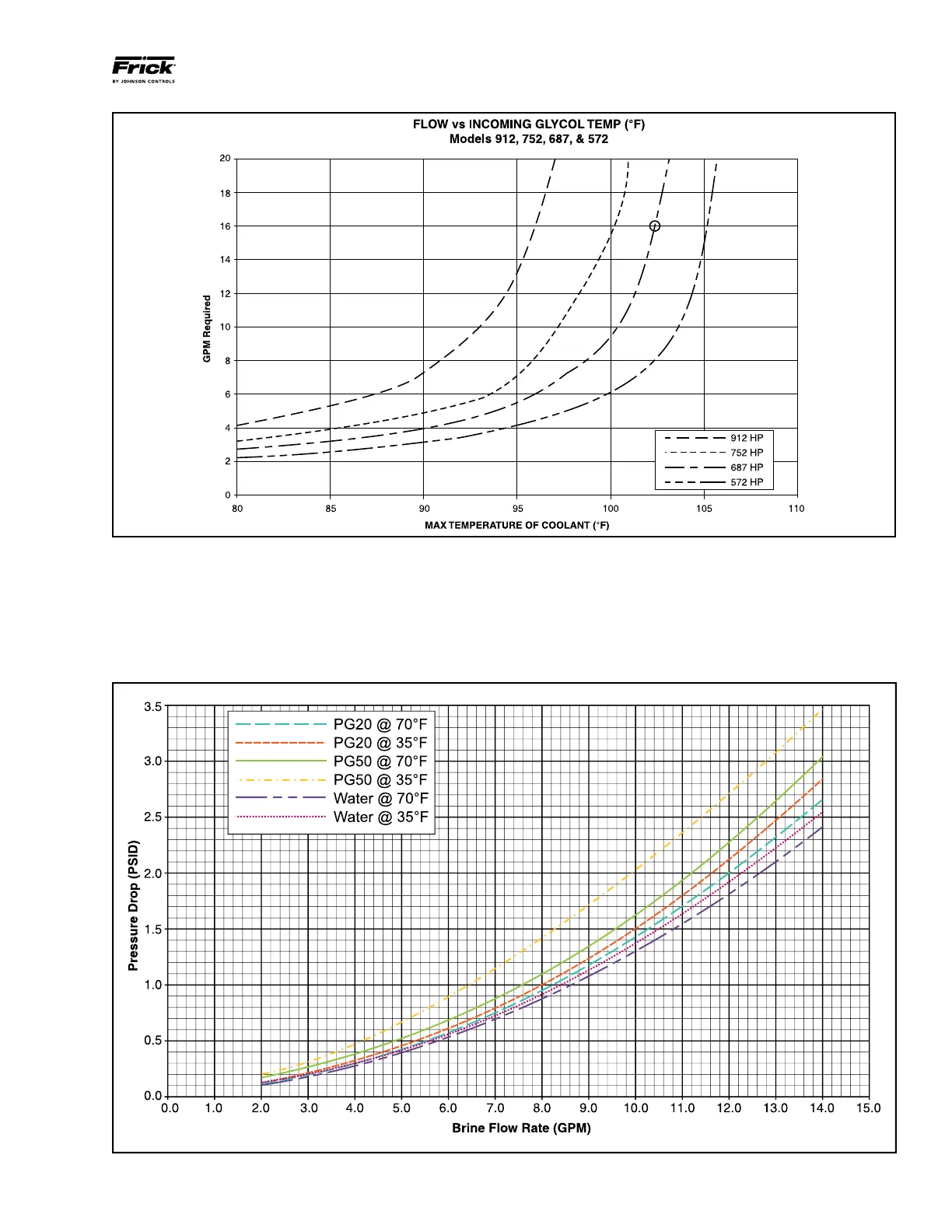

Figure 10 - Pressure Drop vs. Flow Rate
HEAT EXCHANGER PRESSURE DROP 912, 752, 700, 572 Models
Figure 9 - Minimum Flow Rates - GLYCOL
In order to adequately size piping and booster pump require-
ments, the pressure drop of the coolant across the heat
exchanger must be known. Figure 10 provides installation
designers with pressure drop reference for different mixtures
of propylene glycol and water.
