UNIT IDENTIFICATION
Shock Hazard! Wait five (5) minutes
after switching power to the Vyper™
OFF to allow capacitors in the
cabinet to discharge before opening the cabinet door.
Failure to do so will result in death or serious injury.
Each Vyper
™
has a unit identification label located on the
right side of the cabinet. The data plate contains the Frick
Part Number, the unique Serial Number, and the basic
Model Number for the unit. In addition, the data label also
has electrical information pertinent to the individual unit.
NOTE: When inquiring about the Vyper
™
or ordering
spare parts, please provide the MODEL Number and
SERIAL Number from the data plate.

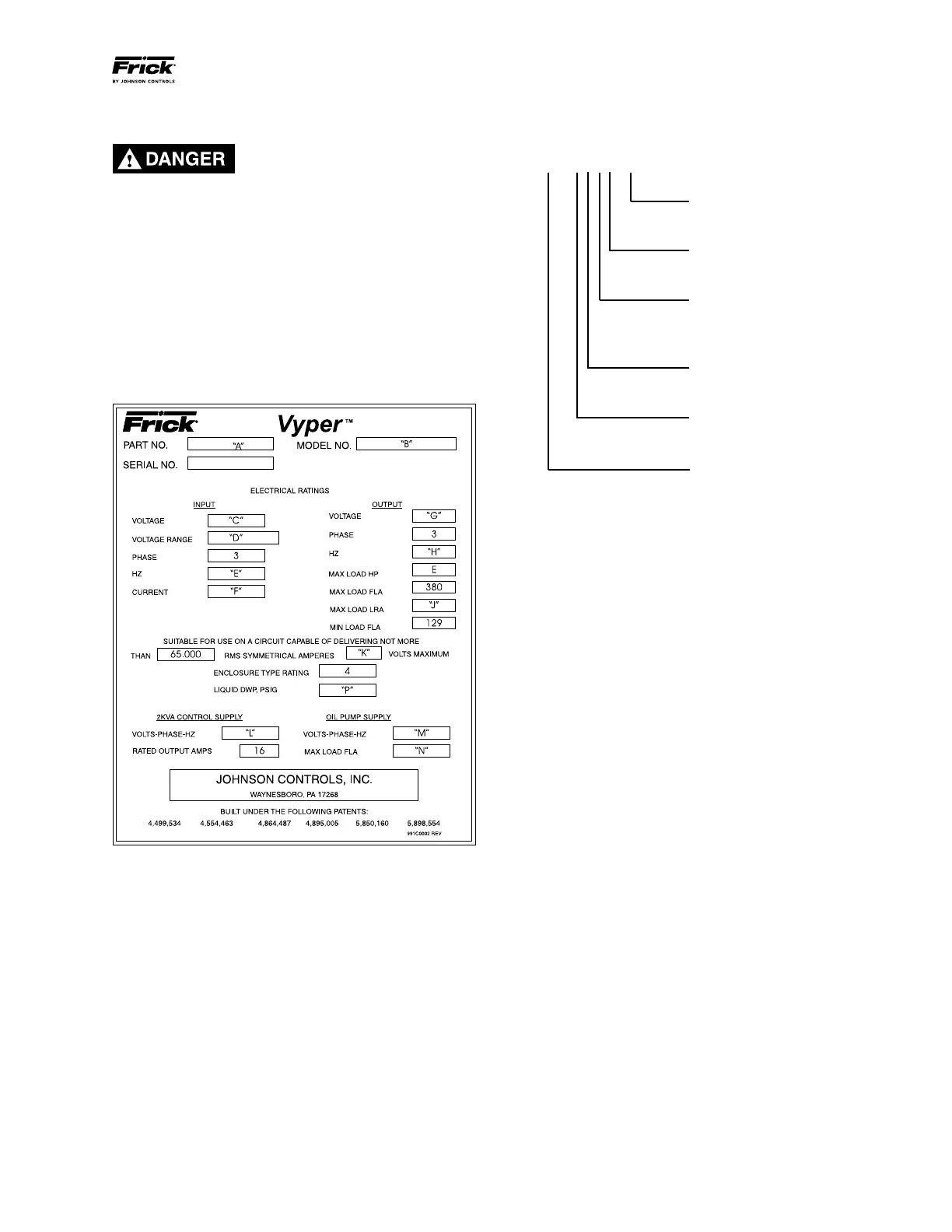

Figure 1 – Vyper
™
Data Plate
FRICK VYPER
™
MODEL NUMBER
DEFINITIONS/NOMENCLATURE
VYE_RHFL_46
Input Voltage - 46 (460V)
- 50 (400V)
Oil Pump - Large HP (L)
- Small HP (S)
IEEE 519 Filter - Installed (F)
- No Filter
(Blank)
Cooling Method - Water (H)
- Liquid (G)
Mounting - Package (P)
- Remote (R)
Drive Type - VYE 700 HP
- VYF 572 HP
- VYG 912 HP
- VYH 752 HP
