4.1.3 Status LED
The status LED shows the operating status of the system:
- Green flashing light: BOILER ACTIVE
- Flashing red light: WARNING or FAULT
4.1.4 Function keys
The function keys of the Lambdatronic P 3200 have dual functions.
Different functions can be called with long or short keystrokes, using the
following definitions of keystroke duration:
Short keystroke ........ < 1 sec
Long keystroke ........ > 4 sec

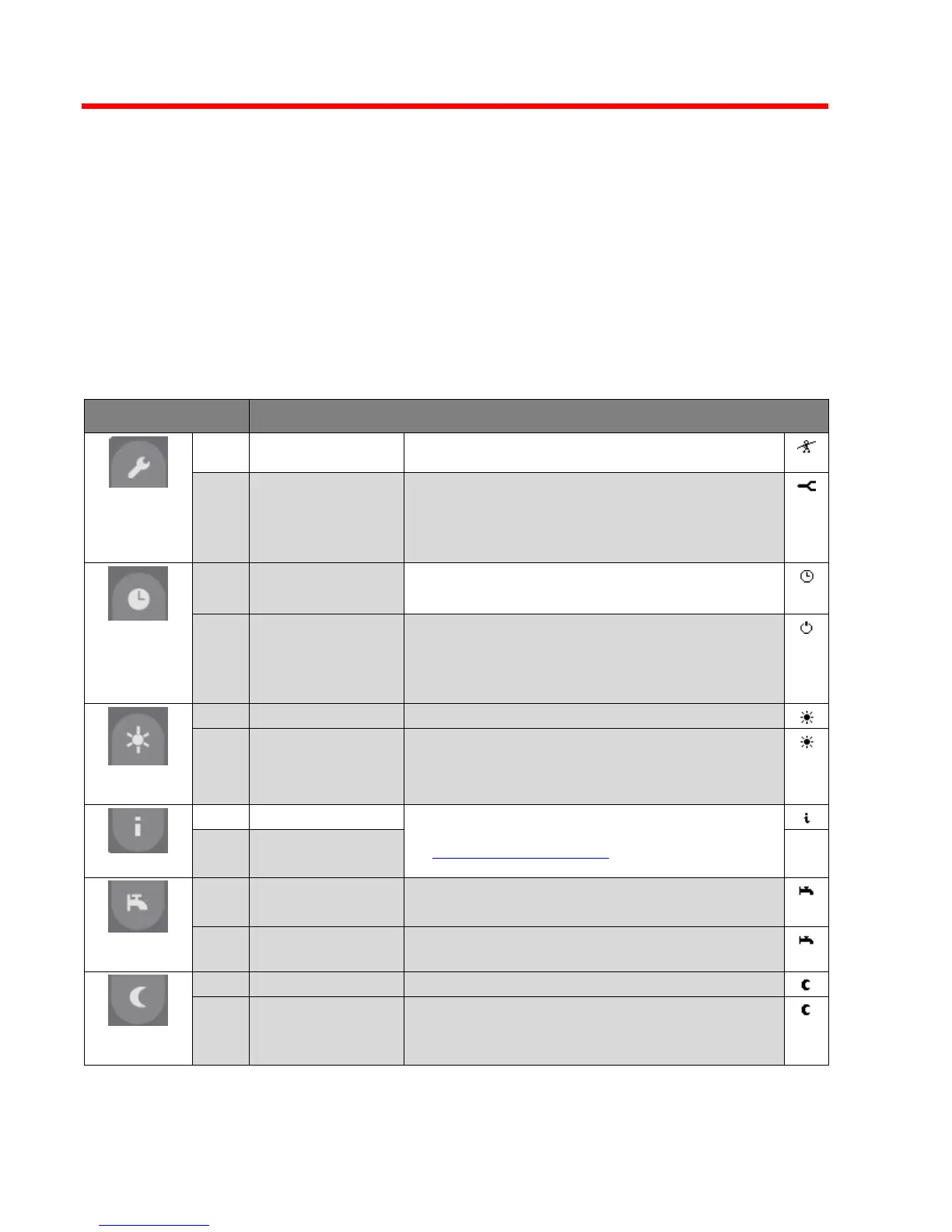

Function / Symbol in status line
System is operated for 30 minutes with rated load
To exit this function: Use “Automatic Program” below
Control follows the boiler shutdown procedure and
after the cleaning cycle the grate stays in open
position. The ID fan runs at controlled speed and the
door contact switch is activated.
Recommended for ash discharge
Function not used (exit other functions only)
The control follows the boiler shutdown procedure and
starts with the cleaning cycle. After the cleaning cycle
the boiler goes to “Burner OO” status.
The Lambdatronic controls the connected heating
components. All parts of the boiler are deactivated.
Query / Clear text information on menu points or
errors.
See section 4.1.5 Info Key
To Next Page
