Fronius CL - Installing AC Main Switches (AC Disconnect)

107
EN-US
Installing AC
main switches
(AC disconnect)

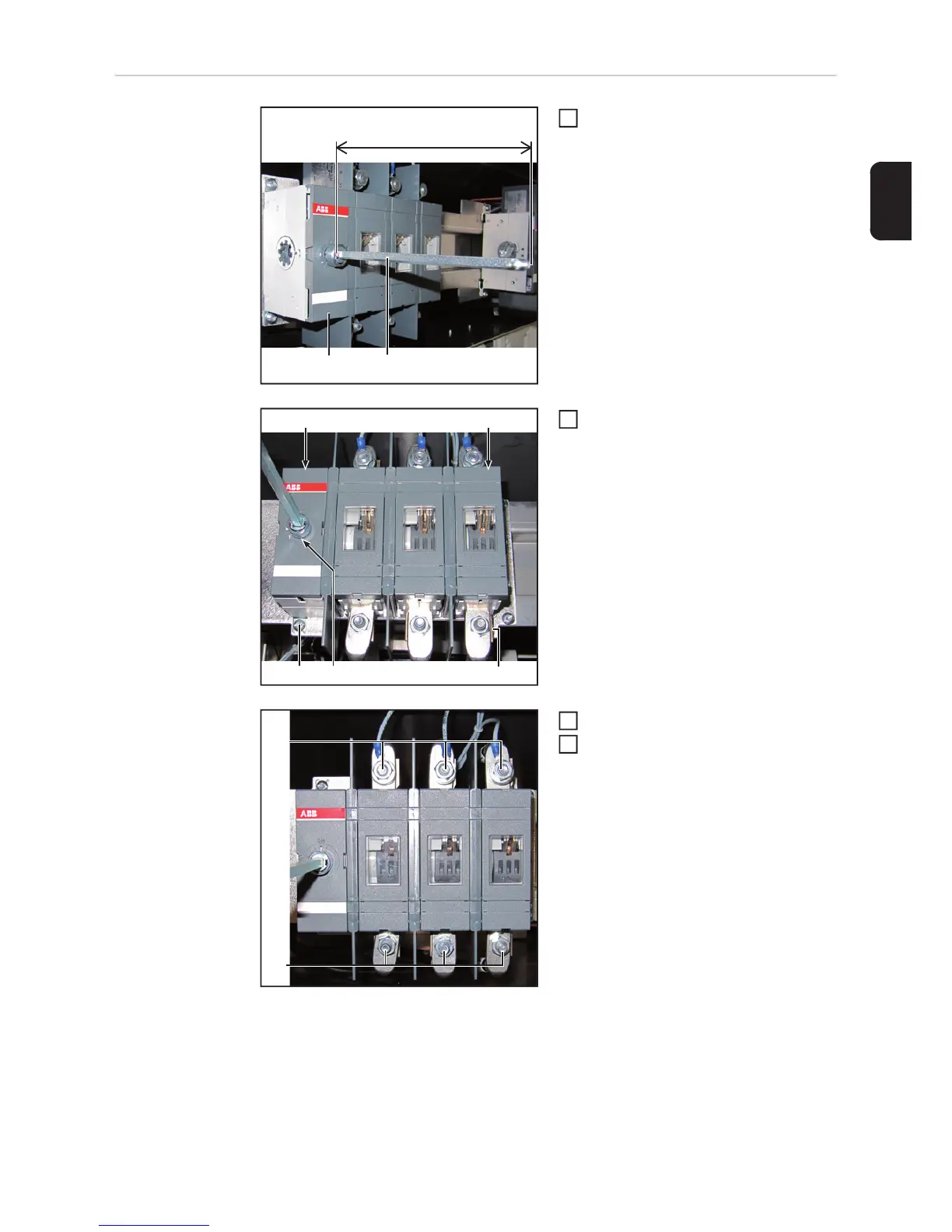

Install shaft (7) on the AC main switch
(6) using a size 2.5 Allen key (5) –
maintain the same distance. (see pic-
ture on the left)
Install AC main switch with TX 20
screws (4) – 2.5 Nm
Connect AC cable (3)
Install cover plate with 3 x TX25
screws – 2.5 Nm
14,5 cm (5.7 in.)
(6) (7)
1
(4)
(4)
(5) (4)
(4)
2
(3)
(3)
3
4
