Fronius CL - Installing Hybrid Plugs

111
EN-US

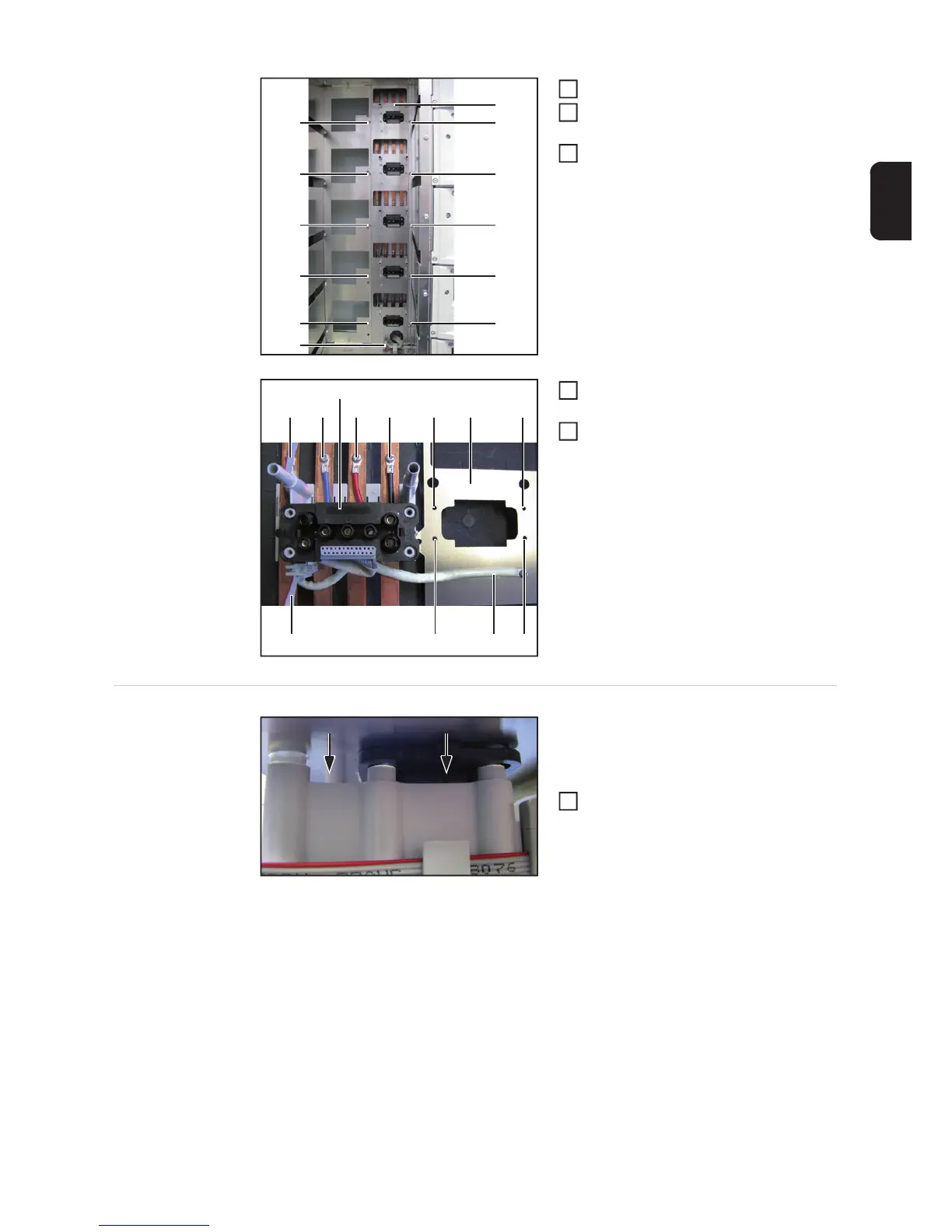

Remove TX 25 screws (6)
Disconnect ribbon cable (7) and open
lock
Lift busbar (5) upwards, pull it out from
below and remove
Remove all screws of the hybrid plug
(11) and cover plate (10)
Disconnect all lines (9) and hybrid plug
(8)
Installing hybrid
plugs
IMPORTANT! The hybrid plug must lie
completely on the holder. The hybrid plug is
NOT positioned correctly in the picture on
the left.
Install a new hybrid plug on the holder
(6) (6)
(5)
(6) (6)
(6) (6)
(6) (6)
(6) (6)
(7)
9
10
11
11
(8)
(9)
(9)
(9) (11) (11)(9)
(9) (9)
(10)(11) (11)
12
13
1
