Fronius Robacta Reamer V Easy Operating Instructions

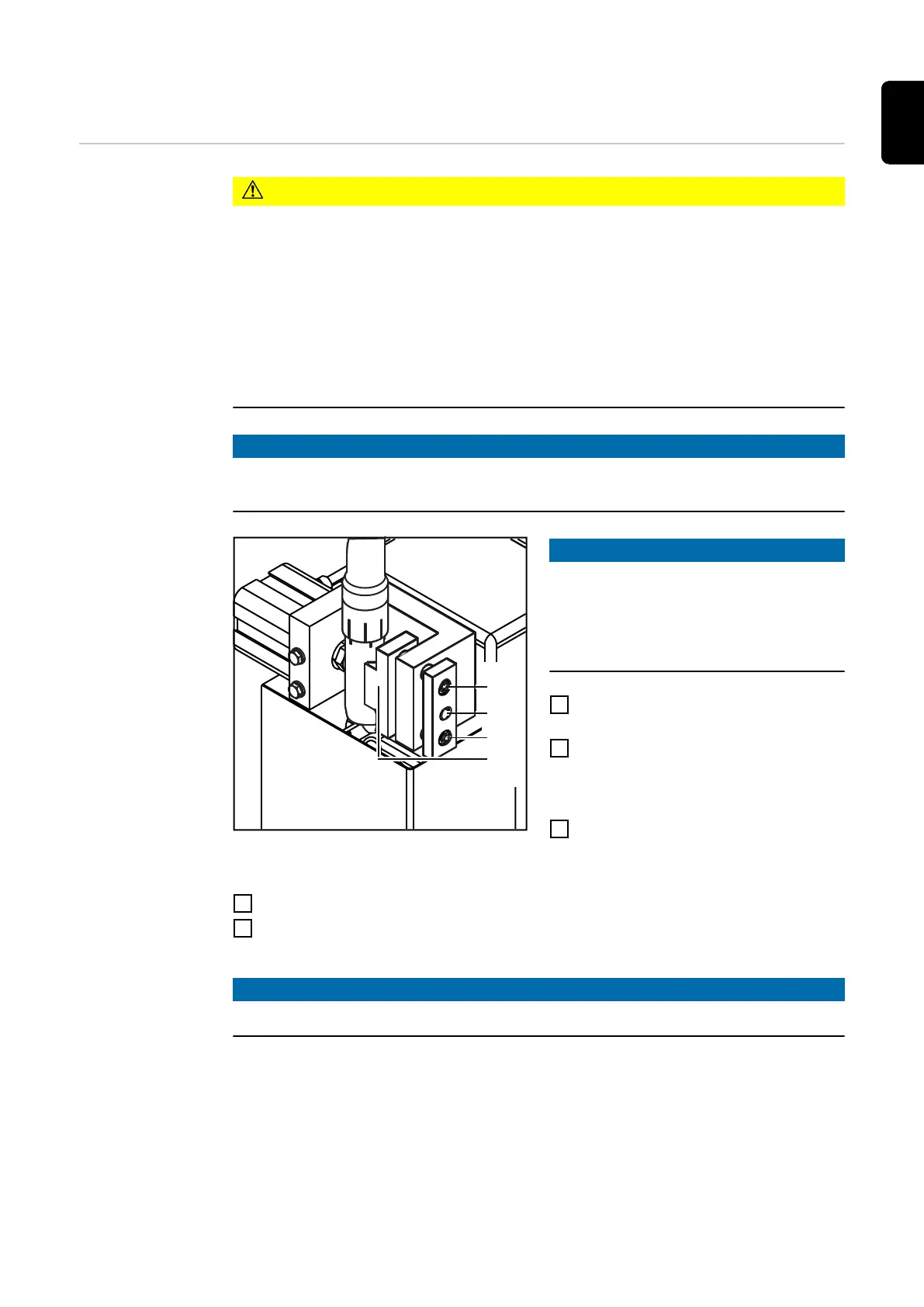

Adjust gas nozzle clamping device
Adjusting the gas
nozzle clamping
device
CAUTION!
Robacta Reamer V Easy Han6P J only:
risk of damage to the cleaning device and the welding torch if the gas nozzle
clamping device is not properly adjusted.
▶
The gas nozzle clamping device must not be altered when using gas nozzles with an
outer diameter of 25 mm (0.98 inch) - the gas nozzle clamping device has already
been adjusted for use with gas nozzles with an outer diameter of 25 mm (0.98 inch)
at the factory.
▶
When using gas nozzles with an outer diameter greater/less than 25 mm (0.98 inch),
the gas nozzle clamping device must be adjusted before using it for the first time
and each time a device is replaced.
NOTE!
The gas nozzle clamping device is adjusted in the same way on the Robacta
Reamer V Easy and the Robacta Reamer V.
(1)
(3)
(2)
(4)
NOTE!
Adjust the clamping device in such a
way that no reaction forces can be
transferred to the robot.
The gas nozzle must only be clamped
onto the cylindrical surface.
1
Loosen the Allen screws on the guide
bolts (1) and (2)
2
Move the welding torch to the cleaning
position
- centrally with respect to the clean-
ing motor
3
Using the adjusting screw (3), position
the clamping device (4) so that the
clamping device is on the gas nozzle
4
Tighten the Allen screws on the guide bolts (1) and (2)
5
Robacta Reamer V only:
Move and check the TCP tip
NOTE!
Only clamp the gas nozzle centrally above the cleaning motor.
47
EN
