Fitting the fill-
level control
sensor
(3)
(1)
(2)
(1)
(2)
1
2
1
NOTE!

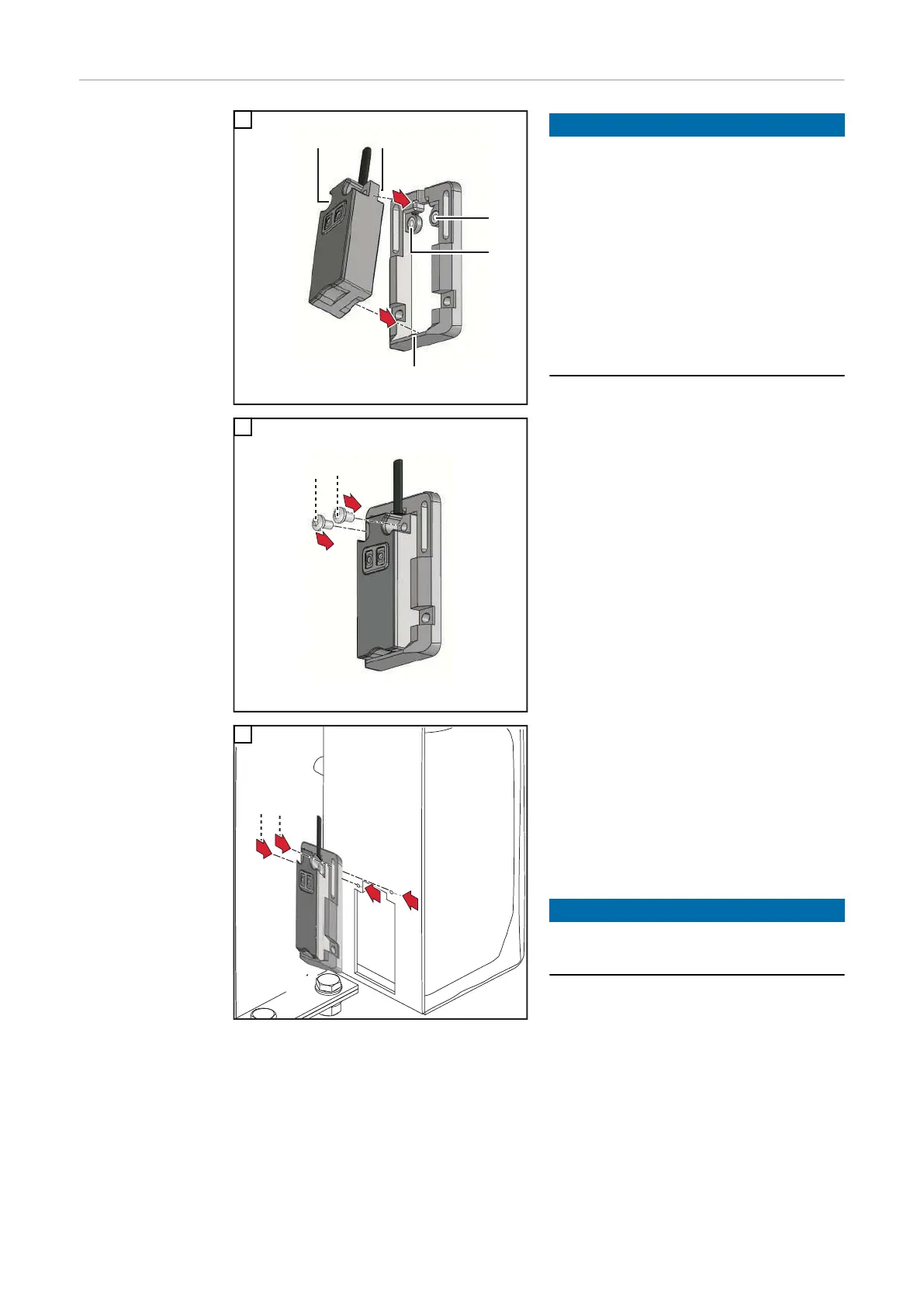

First press the upper part of the sensor
into the installation adapter as shown -
the sockets (1) on the installation
adapter must fit into the recesses (2) in
the sensor.
When the upper part of the sensor is prop-
erly lined up in the installation adapter,
press the sensor fully into the installation
adapter - the latch (3) on the installation
adapter must snap back over the sensor
(sensor audibly engages).
**
1
2
2
* Use the fixings supplied with the
sensor.
****
1
1
1
1
3
Screw the installation adapter and sensor
on to the parting agent container housing
** Fixings are not included in the
sensor/installation adapter scope
of supply. The installer is respons-
ible for selecting the right type of
fixing.
NOTE!
Ensure the fixings do not damage the
parting agent container.
