Adjusting the lifting device
Adjusting the lift-
ing device
NOTE!
The lifting device is adjusted in the same way for all Robacta Reamer V cleaning
devices.

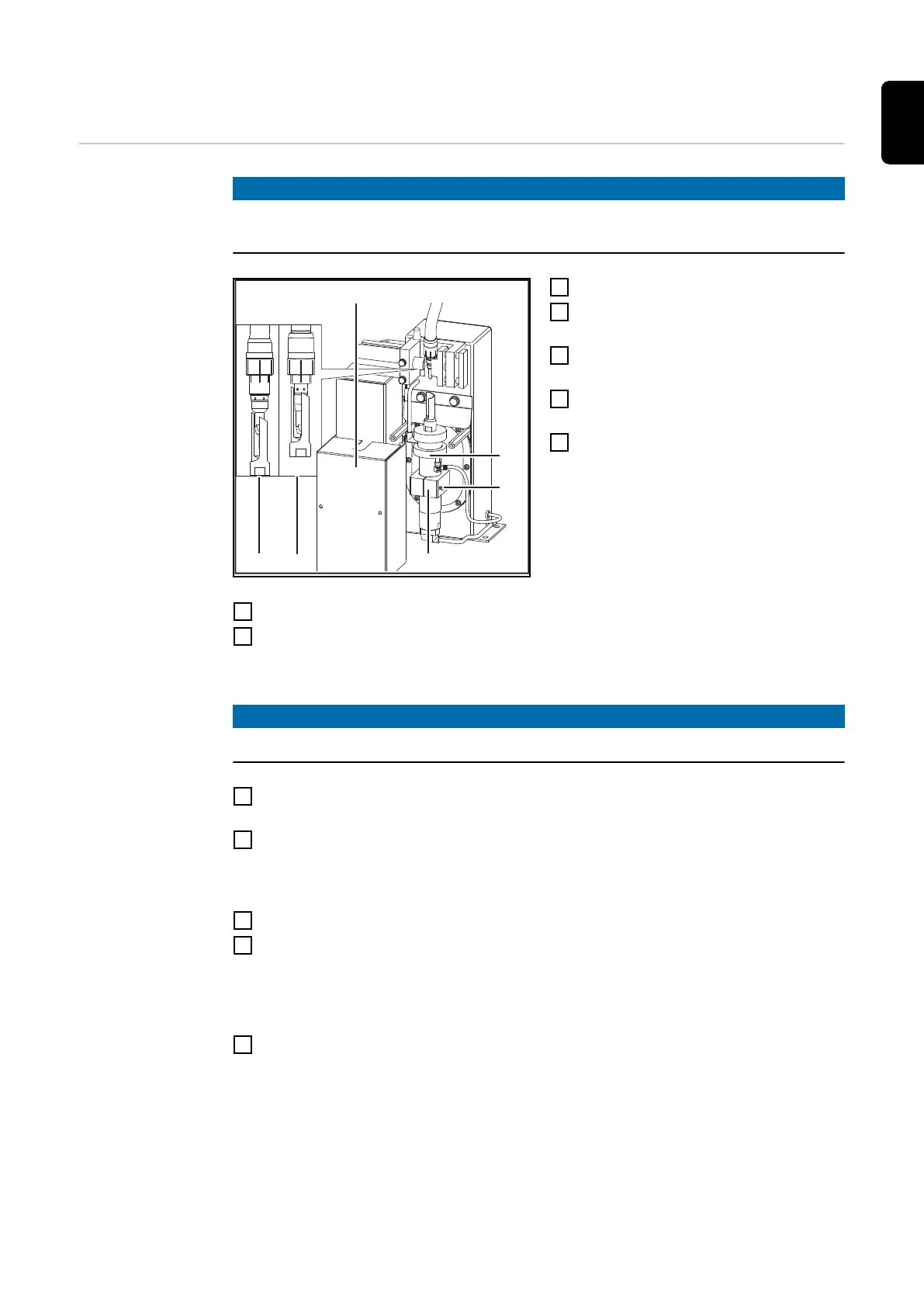

(1)
(2)
(3)
(4)
(5)
(6)
1
Remove the protective covering (1)
2
Remove the gas nozzle from the torch
neck
3
Loosen the screw (2) on the lifting
device
4
Ensure that the lifting device (3) is in
its lowest lift position
5
Move the welding torch to the cleaning
position (approx. 1 - 2 mm / 0.039 -
0.079 in. above the protective cover-
ing, centrally with respect to the clean-
ing motor)
6
Manually push the lifting device (3) into its highest lift position and hold in place
7
Manually push the cleaning motor (4) and cleaning cutter to the cleaning position
- see diagram (5) for welding torch and spatter guard
- see diagram (6) for welding torch and insulating sleeve
NOTE!
The cleaning cutter must not touch any welding torch components.
8
Fix the cleaning motor (4) in this position in the lifting device (3) - tighten the screw
(2) on the lifting device
9
Complete a function test without the gas nozzle fitted: Move the lifting device manu-
ally to the uppermost position
- The cleaning cutter must close around the contact tip without touching it. If the
cleaning cutter touches the welding torch components, readjust the lifting device
10
Fit the gas nozzle to the torch neck
11
Complete a function test with the gas nozzle fitted: Move the lifting device manually
to the uppermost position
- The cleaning cutter must be inserted into the gas nozzle gently, without touching
it. If the cleaning cutter touches the welding torch components, readjust the lift-
ing device
12
Fit the protective covering to the cleaning device in its original position
