Installing the compressed air supply
Establishing the
compressed air
supply for the
cleaning device,
function of the
compressed air
relief valve
To establish the compressed air supply:
1
Depressurise the compressed air supply line of the cleaning device and ensure that
it remains depressurised for the duration of the following work on the device
2
Screw the supplied compressed air relief valve into the compressed air connection
on the cleaning device
3
Connect the compressed air supply line to the compressed air relief valve
The compressed air supply to the cleaning device can be broken and re-established by
moving the compressed air relief valve forwards and backwards - see description below.

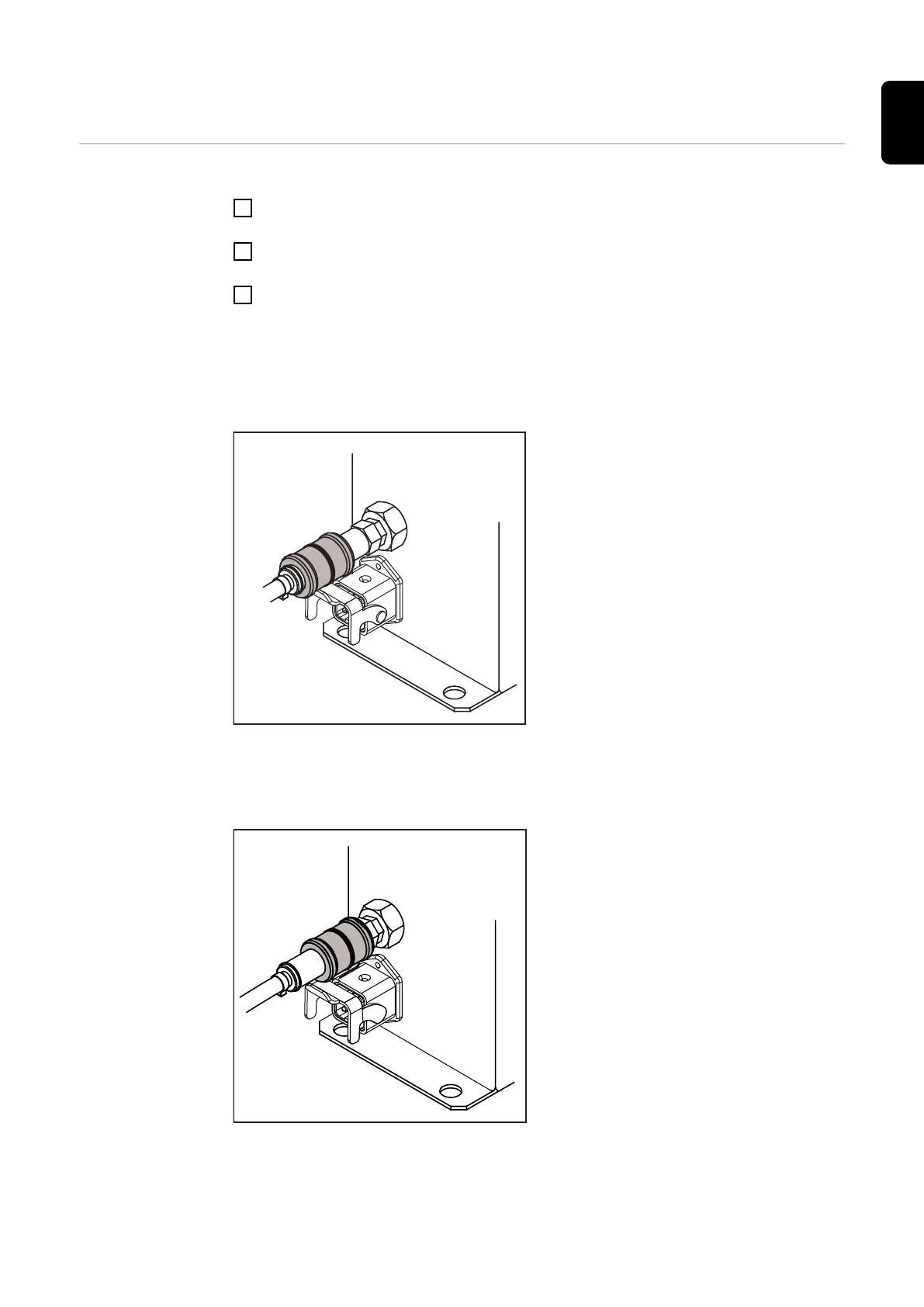

The diagram below shows the compressed air relief valve in the closed position = no
compressed air supply to the device:
Compressed air relief valve closed
The diagram below shows the compressed air relief valve in the open position = com-
pressed air is being supplied to the device:
Compressed air relief valve open
