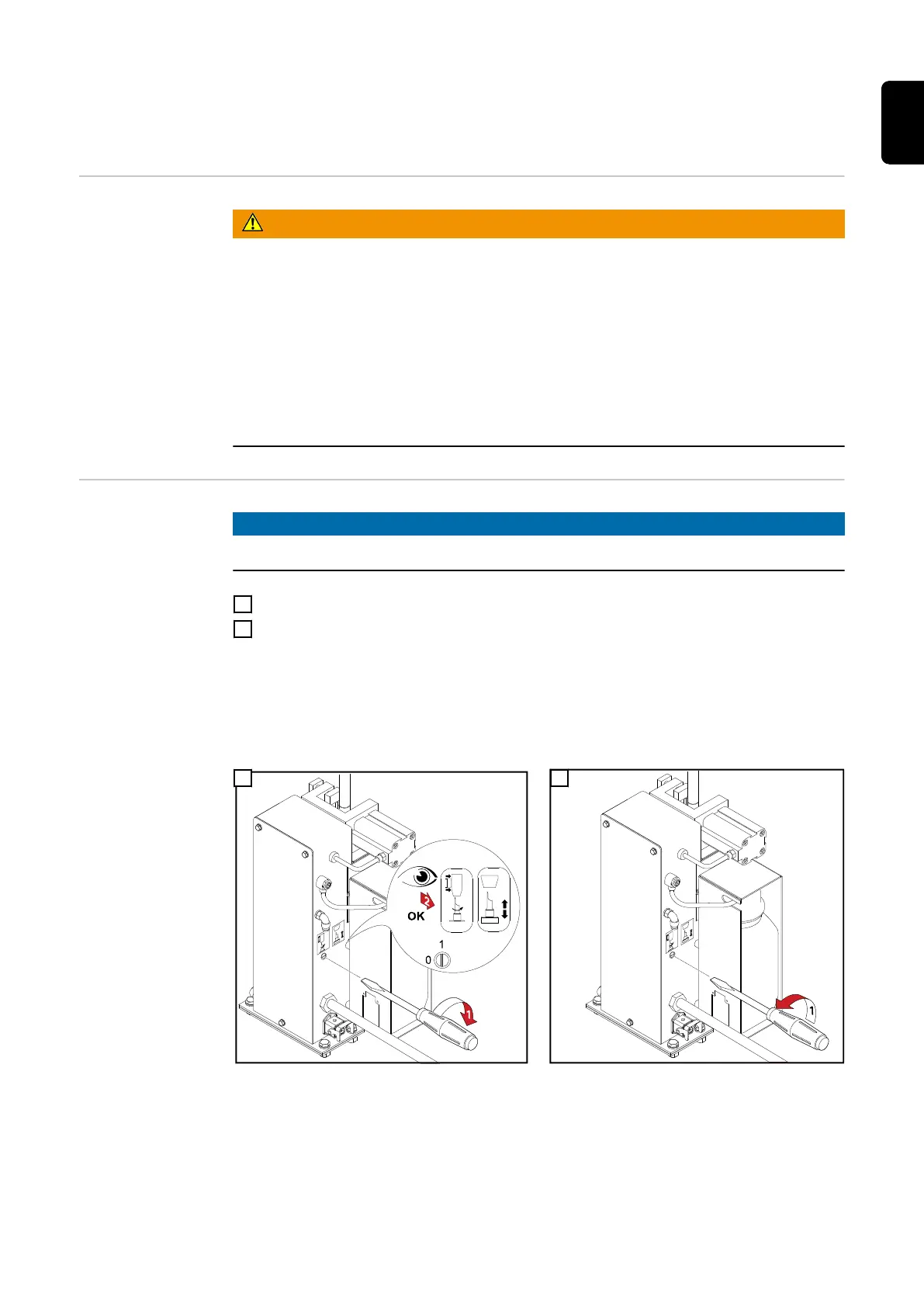

Fronius Robacta Reamer V Easy Operating Instructions

Checking the Robacta Reamer V Easy and Robacta
Reamer V Easy Han6P J functions
Safety
WARNING!
For the following tasks, the cleaning device must be supplied with compressed air.
This results in danger from the rotating cleaning cutter, cleaning motor moving up/
down, gas nozzle clamping device moving out/in, flying parts (chips, etc.), com-
pressed air/parting agent mixture escaping from the parting-agent injection nozzle.
This can result in serious injury and damage to property.
▶
Keep your body, especially your hands, face, hair, any objects and all clothing away-
from the cleaning cutter, cleaning motor, lifting device, gas nozzle clamping
device,wire cutter and parting-agent injection nozzle..
▶
Wear ear protection!
▶
Wear protective goggles with side protection.
Manually check-
ing the Robacta
Reamer V Easy
and Robacta
Reamer V Easy
Han6P J func-
tions
NOTE!
Functions are deactivated if the slot on the "Cleaning" screw is horizontal.
1
Disconnect the cleaning device from the robot control
2
Establish a compressed air supply to the cleaning device
The following must be checked when the functions are being performed:
- how far the cleaning cutter is inserted into the gas nozzle
- function of the gas nozzle clamping device
- function of the cleaning motor
- parting agent emerging from the parting-agent injection nozzle
00
11
Lifting device up/down, Clamp gas nozzle/Cleaning
motor on, Spray in parting agent
3
Deactivating the functions
4
