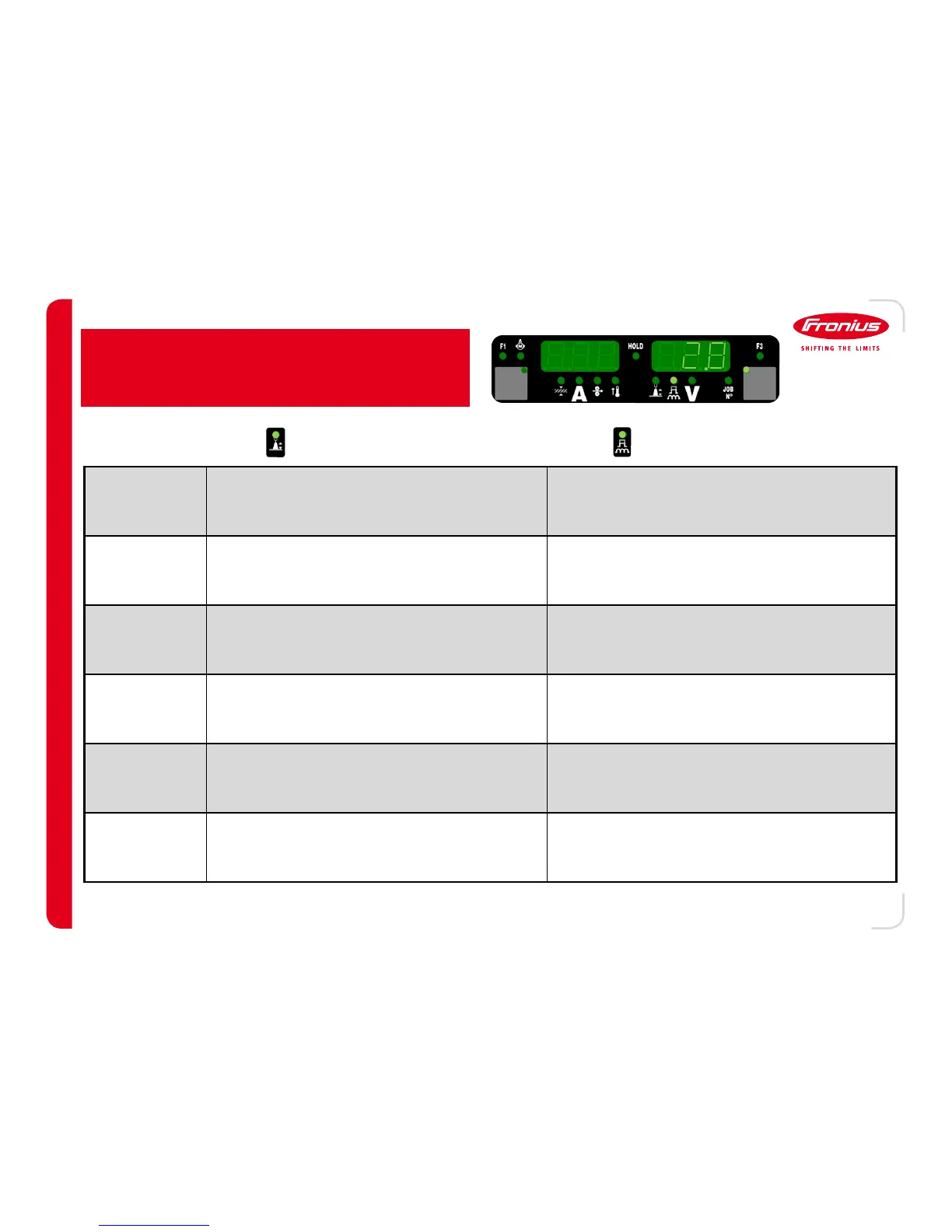

Use and Operation
MIG Correction Values
Correction Value 1 Correction Value 2
Standard Synergic
+30 = longer arc length → more voltage +5 = More inductance → Lower peak current, soft arc
0 = Standard arc length 0 = Standard inductance
-30 = Shorter arc length → Less voltage -5 = Less inductance → Higher peak current, hard arc
Pulse Synergic
+30 = longer arc length → more voltage +5 = Wider arc → Higher pulse force
0 = Standard arc length 0 = Standard width
-30 = Shorter arc length → Less voltage -5 = Narrower arc → Lower pulse force
Standard CMT
(Steel)
+30 = Lower droplet detach freq → more voltage +5 = Less SC2 Current → Colder melt pool
0 = Standard Plasma WFS 0 = Standard SC2 Current
-30 = Higher droplet detach freq → Less voltage -5 = More SC2 Current → Hotter melt pool
Standard CMT
(Aluminum and
Stainless)
+30 = Slower Burn WFS → more voltage +5 = Increased arc length at ignition
0 = Standard Burn WFS 0 = No increased arc length at ignition
-30 = Faster Burn WFS → Less voltage -5 = No impact
CMT Pulse
(Steel)
+30 = longer arc length → more voltage +5 = More energy → Drop falls with more pressure
0 = Standard arc length 0 = Standard energy
-30 = Shorter arc length → Less voltage -5 = Less energy → Drop falls with less pressure
CMT Pulse
(Aluminum and
Stainless)
+30 = Slower Pulse WFS → more voltage +5 = More energy → Drop falls with more pressure
0 = Standard Pulse WFS 0 = Standard energy
-30 = Faster Pulse WFS → Less voltage -5 = Less energy → Drop falls with less pressure
-
--
