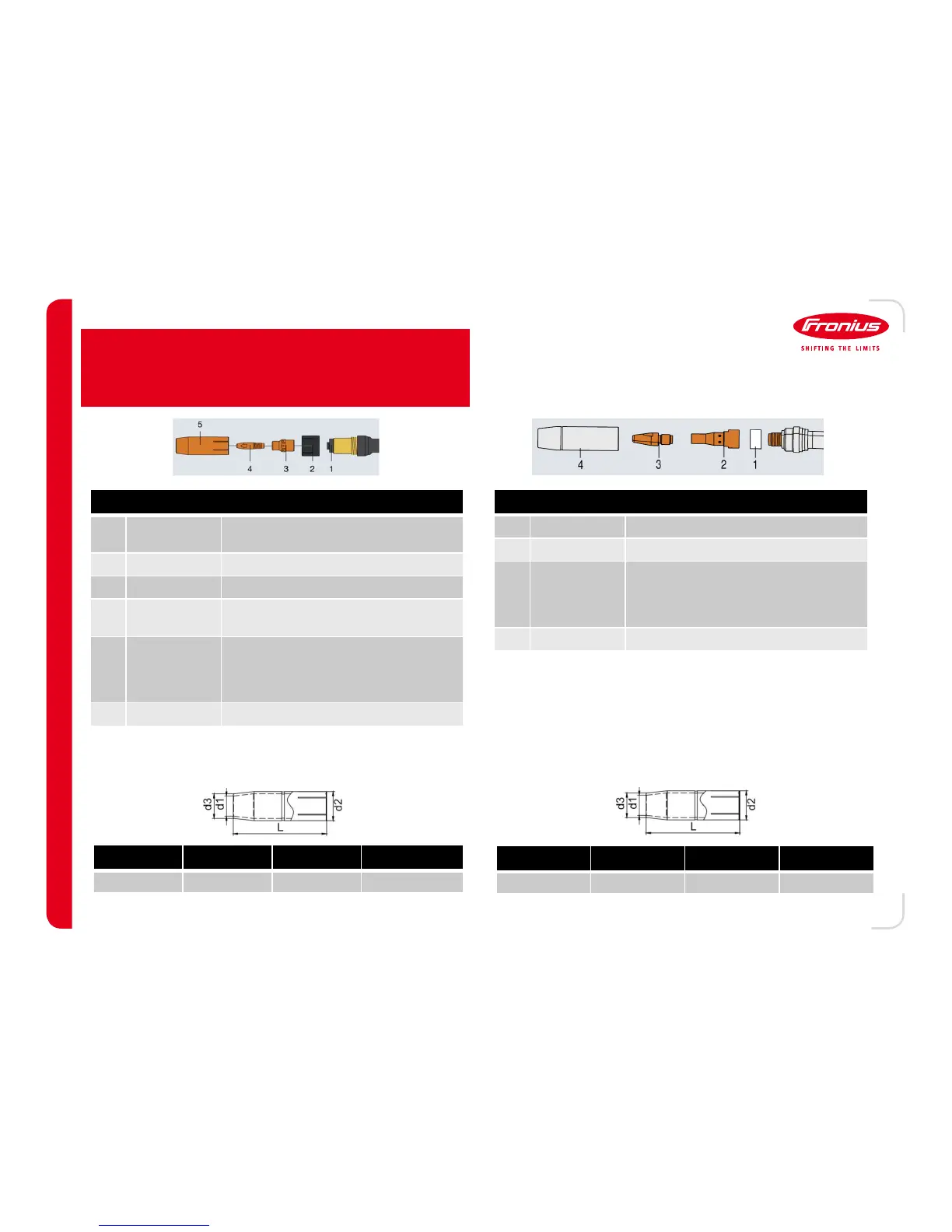

Consumables
Manual Torch-body Consumables
-
--
- 71
71 71
71 -
--
-
AL 3000 / AW 4000
1
42,0100,1014
42,0100,1010
Insulating Ring, AL 3000
Insulating Ring, AW 4000
2 42,0001,2930 Fixing Sleeve
3 42,0001,5084 Nozzle Stock, M8
4
42,0001,3082
42,0001,2913
Contact Tip, standard, .035 (.9)
Contact Tip, standard, .045 (1.2)
4
42,0001,3653
42,0001,5052
42,0001,5053
42,0001,3485
Contact Tip, center-bore (CB), .035 (.9)
Contact Tip, center-bore (CB), .045 (1.2)
Contact Tip, center-bore (CB), .056 (1.4)
Contact Tip, center-bore (CB), 1/16 (1.6)
5 42,0001,5096 Gas Nozzle, standard
MTG 5300 S
1 42,0100,1205 Insulating Ring, MTG 5300
2 42,0100,0312 Nozzle Stock, M8
3
42,0001,3889
42,0001,3891
42,0001,3892
42,0001,3893
Contact Tip, sharp, .035 (.9)
Contact Tip, sharp, .045 (1.2)
Contact Tip, sharp, .056 (1.4)
Contact Tip, sharp, 1/16 (1.6)
4 44,0350,3180 Gas Nozzle, standard
d1 d2 d3 L
.679” (13mm) .984” (22mm) .669” (17mm) 2.637” (67mm)
d1 d2 d3 L
.709” (18mm) 1.063” (27mm) n/a 3.465” (88mm)
