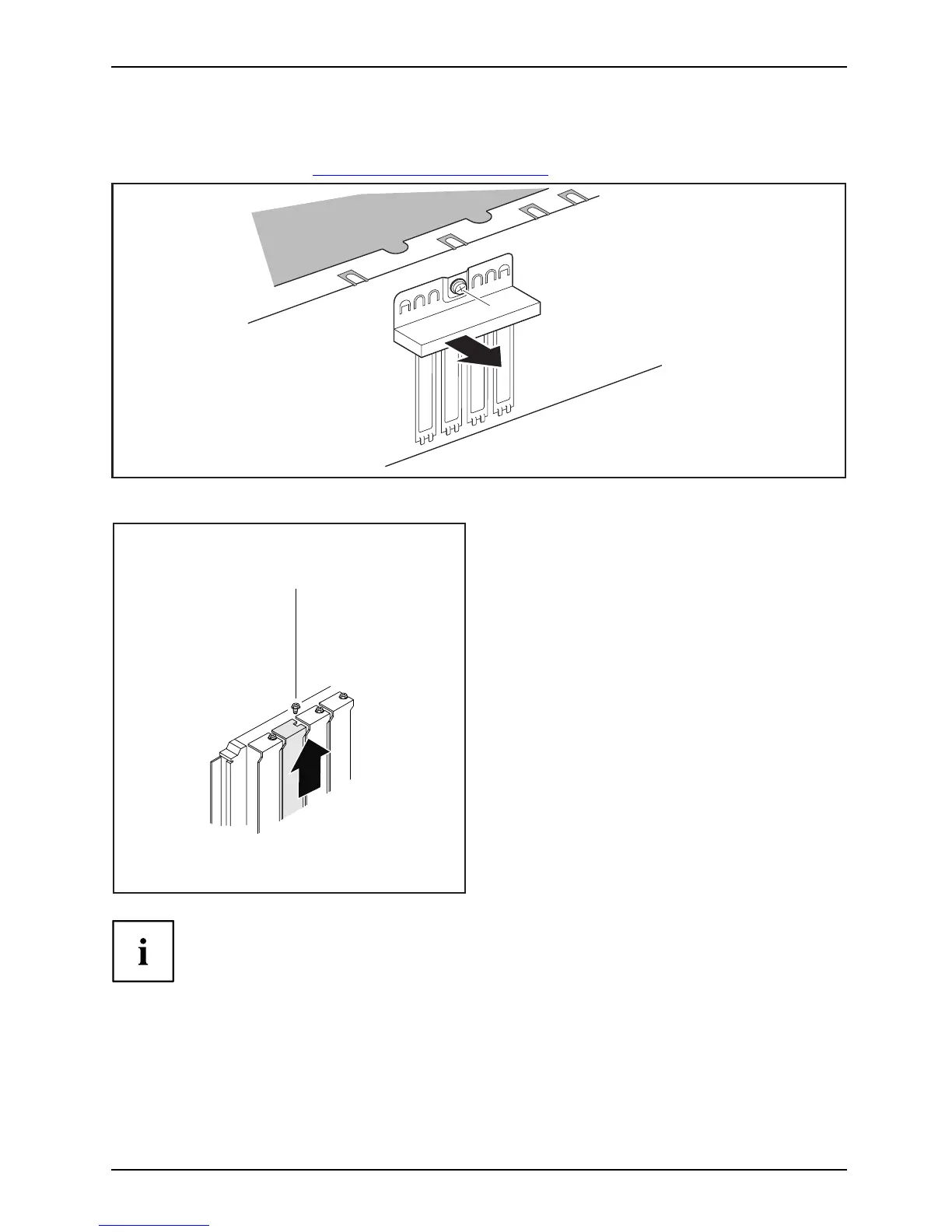

System expansions
Remove the slot cover.
► Op en the casing (see "Opening the ca sing", Page 33).
1
2
► Undo th e screw on the cover angle ( 1) o ver the module slots and remove the cover angle (2).
1
2
► Loosen t he screw (1) wh
en present.
► Pull the slot cover out of the slot (2).
Do not throw away the slot cover. For cooling, protection against fireandinorderto
comply with EMC regulations, you must refit the slot cover if you remove the board.
AMILO Desktop Operating Manual, edition 3 41
