TX100 S2 Service Supplement 105
Replacement routines

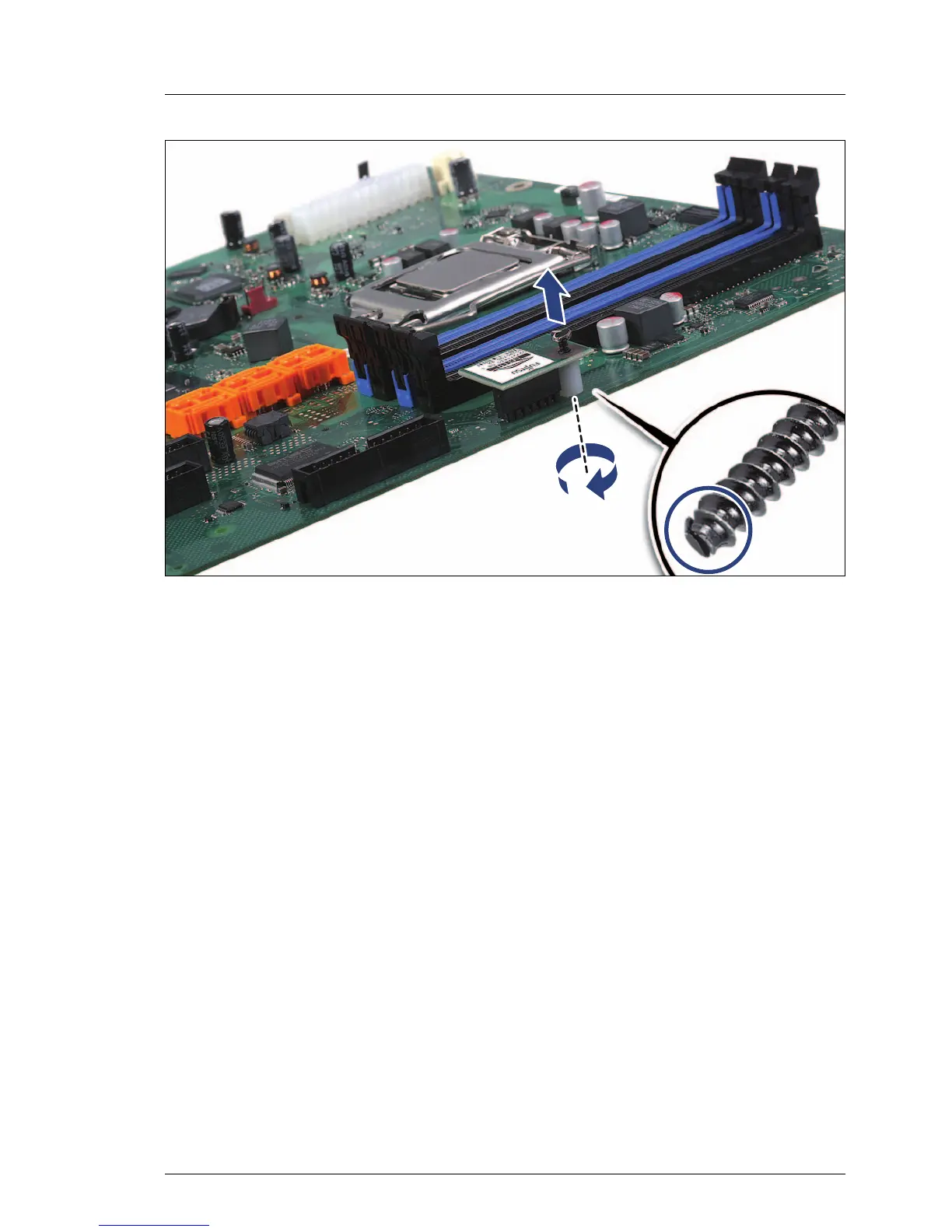

Figure 88: Removing the TPM screw
Ê Locate the slotted lower end of the TPM screw (see circle).
Ê Remove the TPM screw using a thin slotted screwdriver (e.g. watchmaker's
screwdriver).
V CAUTION!
Ensure to turn the screw clockwise in order to remove it!
Otherwise the thin metal bar may break, rendering it impossible to
loosen the screw.
Ê Remove the defective TPM board on the upper side of the system board.
