52 Service Supplement TX100 S2
Replacement routines
4.3 Replacing the front USB module
4.3.1 Removing the front USB cable
Ê Shut down the server and disconnect the AC power cord from the system.
Ê Remove the side cover as described in section "Removing the side cover"
on page 23.
Ê Open the front bezel as described in section 4.1.3.1 on page 28.
Ê Open the HDD cage as described in section 4.1.2.1 on page 25.

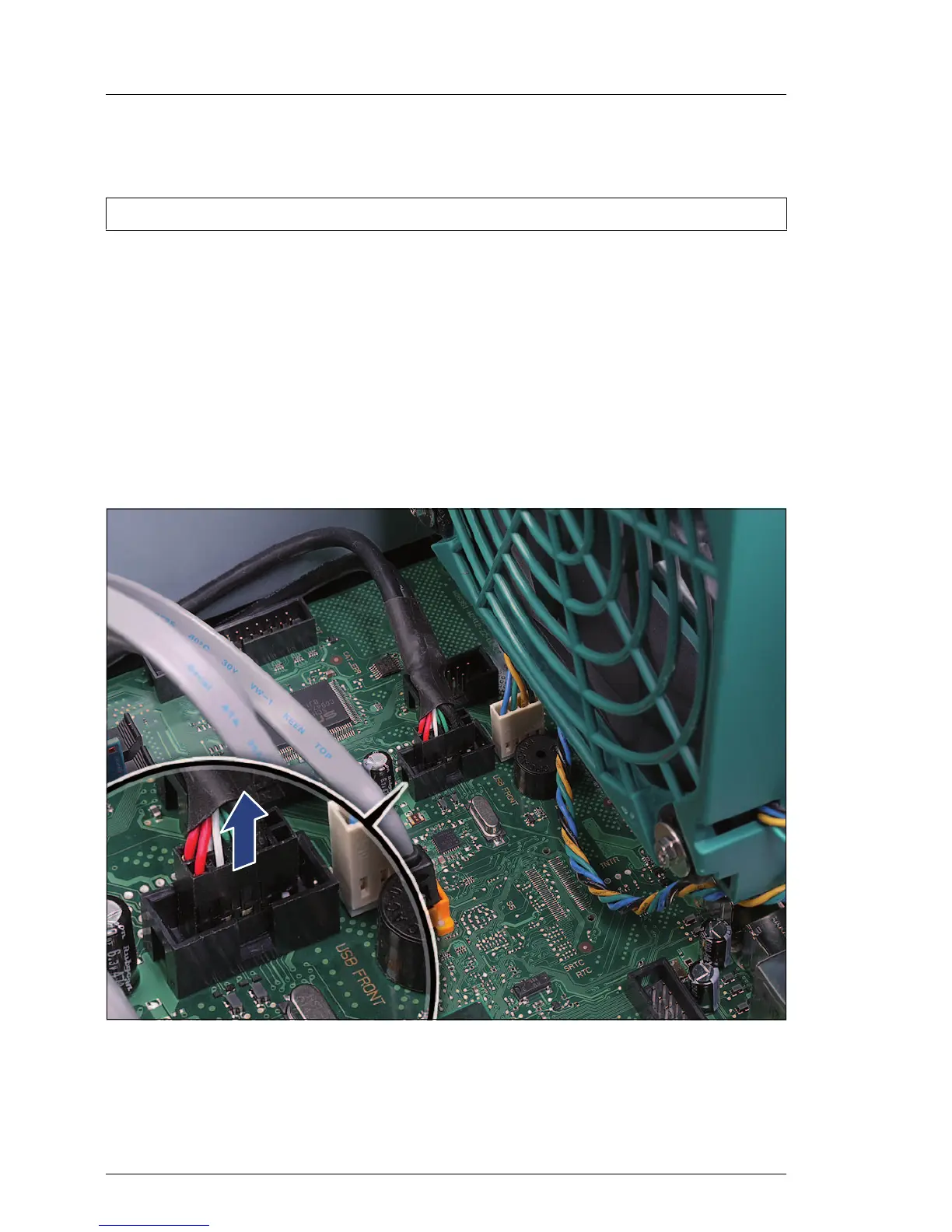

Figure 31: Disconnecting the front USB connector
Ê Disconnect the USB FRONT connector from the system board.
Part number: T26139-Y3894-V513
