TX100 S2 Service Supplement 43
Replacement routines
Ê Push out the dummy cover using a screwdriver as shown (1).
Ê Pull the dummy cover out of the chassis and remove it (2).
4.1.6.2 Installing dummy covers

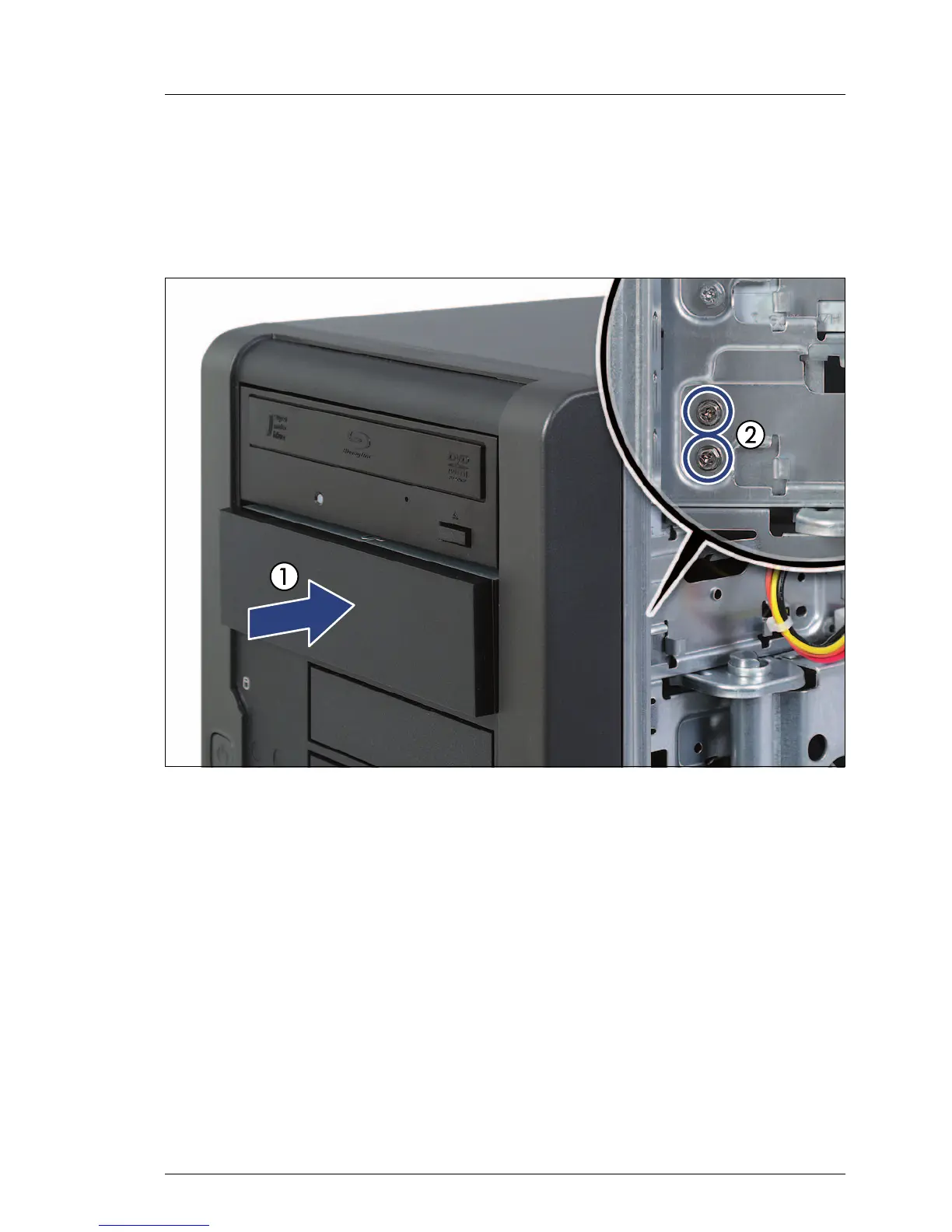

Figure 22: Installing dummy covers
Ê Insert the dummy cover into its installation bay and slide back until it is flush
with the front bezel (1).
Ê Secure the dummy cover to the drive cage with two screws (M3 x 4.5 mm)
(2).
Ê Close the side cover as described in section 4.1.1.2 on page 24 and
reconnect the AC power cord.
