4.7.3 Installing the processor heat sink

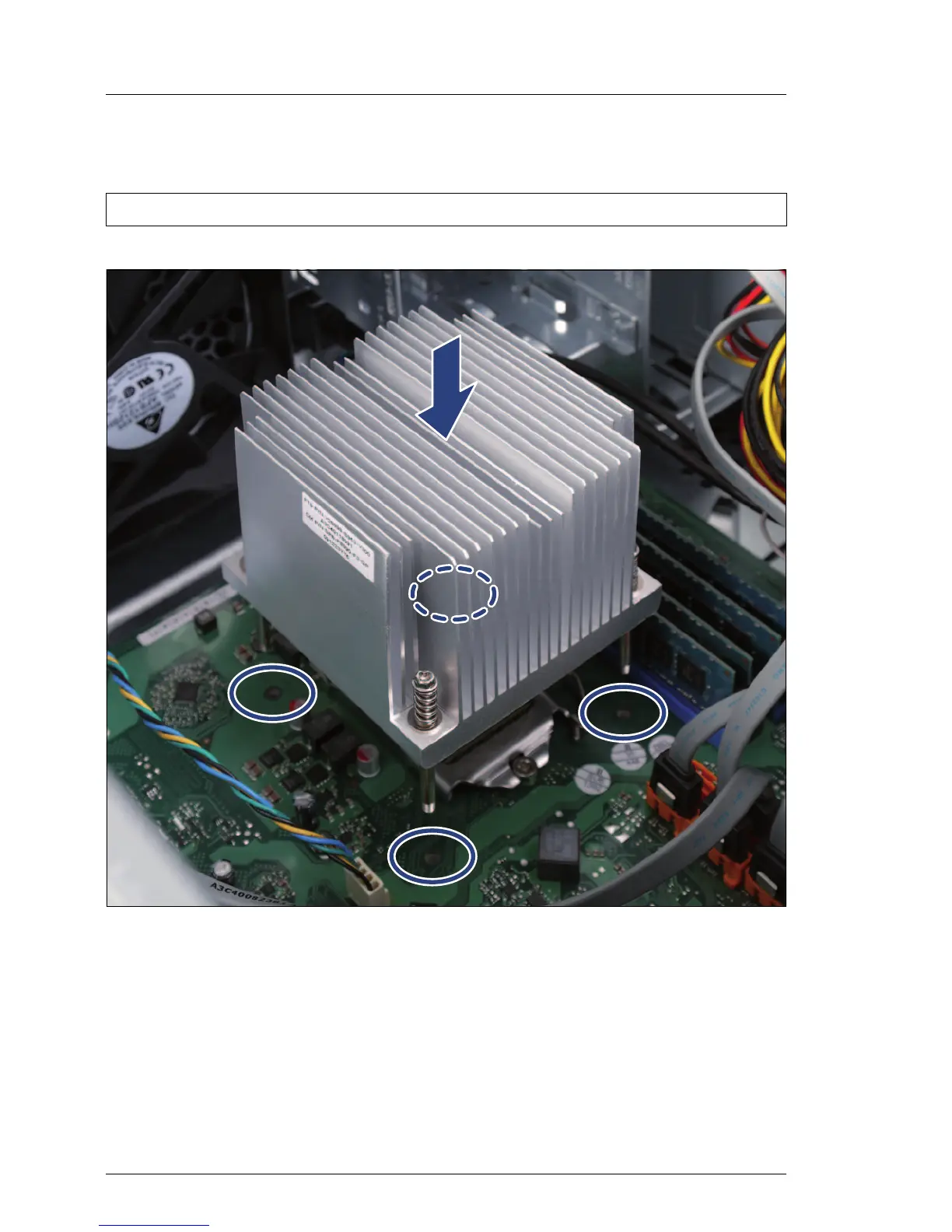

Figure 79: Installing the processor heat sink (A)
Ê Carefully seat the heat sink (V26898-B953-V300) on the four threaded holes
as shown.
V CAUTION!
– Ensure that the screws on the heat sink are properly seated on the
threaded holes.
– Ensure that the heat sink cooling fins match the direction of the
airflow!
Part number: V26898-B953-V300
