Fujitsu PRIMERGY TX100 S2 - Installing the Front Panel Cable

48 Service Supplement TX100 S2
Replacement routines
4.2.2 Installing the front panel cable

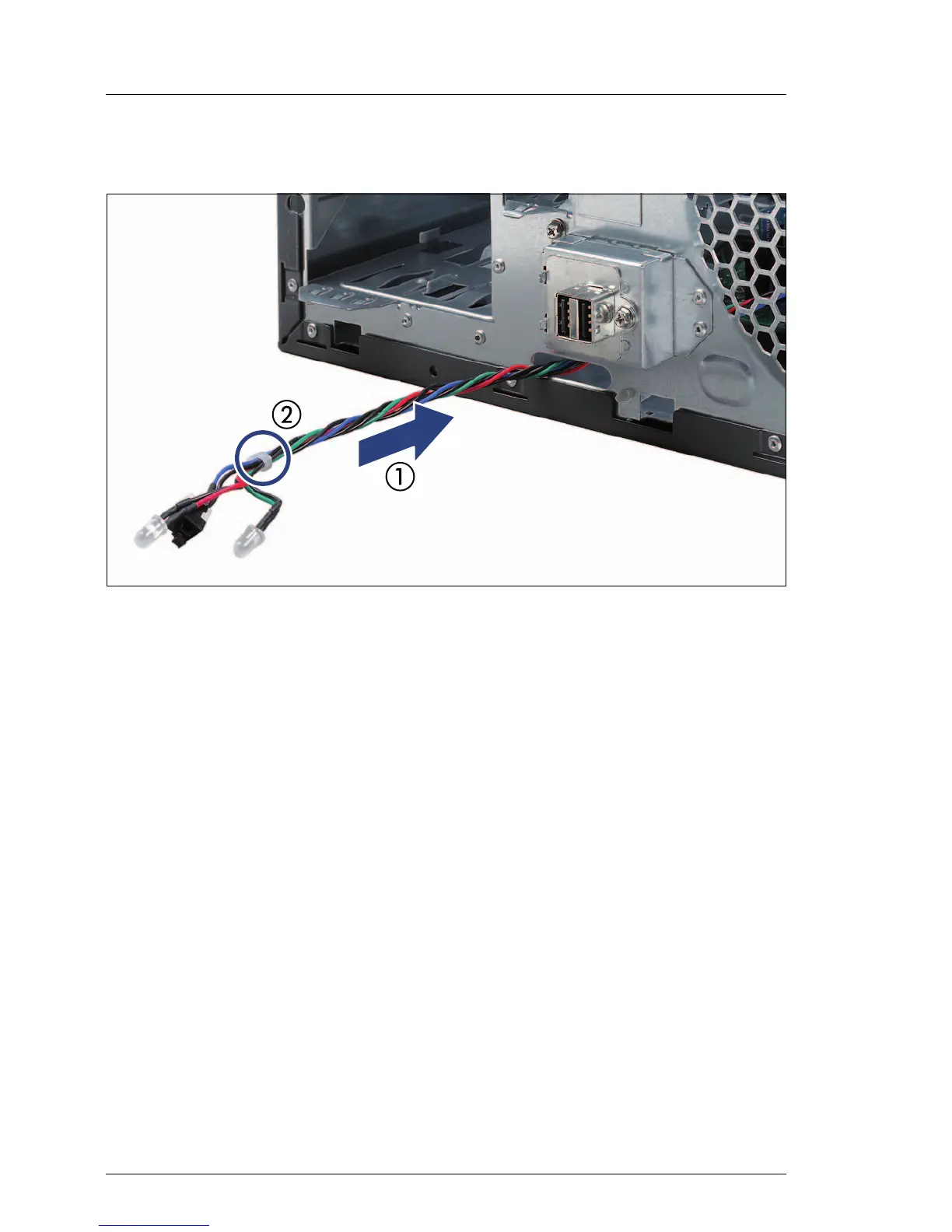

Figure 27: Inserting the front panel cable
Ê Thread the system board connector on the new front panel cable through the
recess in the chassis front.
Ê From inside the server, carefully pull the front panel cable into the chassis
(1).
Ê Thread the cable strap on the front panel cable through the recess in the
chassis front (2).
