Fujitsu PRIMERGY TX100 S2 - Service Supplement TX100 S2

112 Service Supplement TX100 S2
Replacement routines

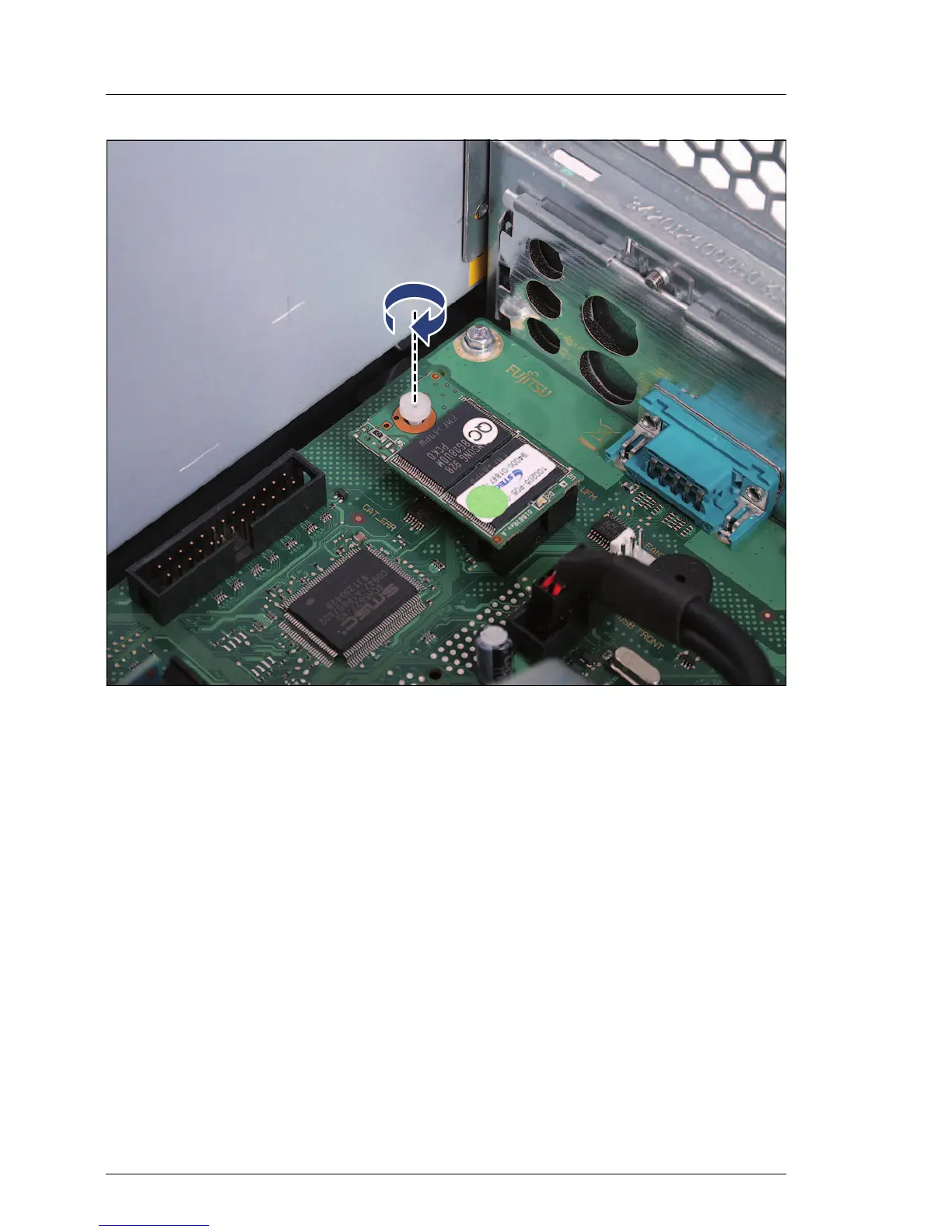

Figure 97: Securing the UFM board
Ê Secure the UFM board to the UFM spacer with the nylon screw.
Ê Close the HDD cage as described in section 4.1.2.2 on page 27.
Ê Close the side cover as described in section 4.1.1.2 on page 24 and
reconnect the AC power cord.
