Replacement routines
Ê If the server does not shut down properly, press and hold the On / Off button
for five seconds, until the server switches off.
Ê Disconnect the AC power cord from the system.
Ê Pull the locking lever (1) and fold out the side cover (2).
Ê Unlatch and remove the side cover (3).
4.1.1.2 Closing the side cover

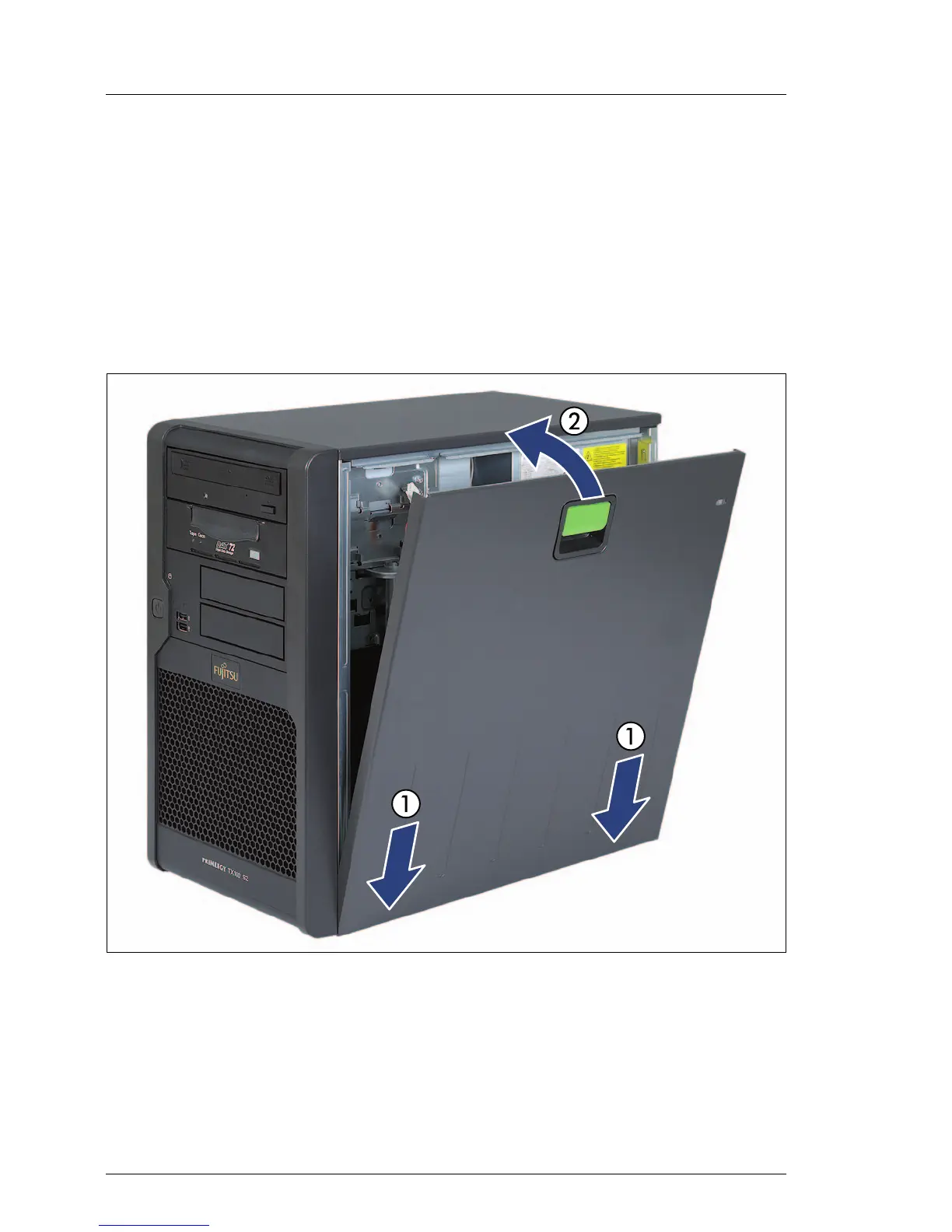

Figure 3: Closing the side cover
Ê Latch the bottom edge of the side cover to the server chassis (1).
Ê Close the side cover (2) until it locks in place.
Ê Reconnect the AC power cord.
