TX100 S2 Service Supplement 27
Replacement routines
4.1.2.2 Closing the HDD cage

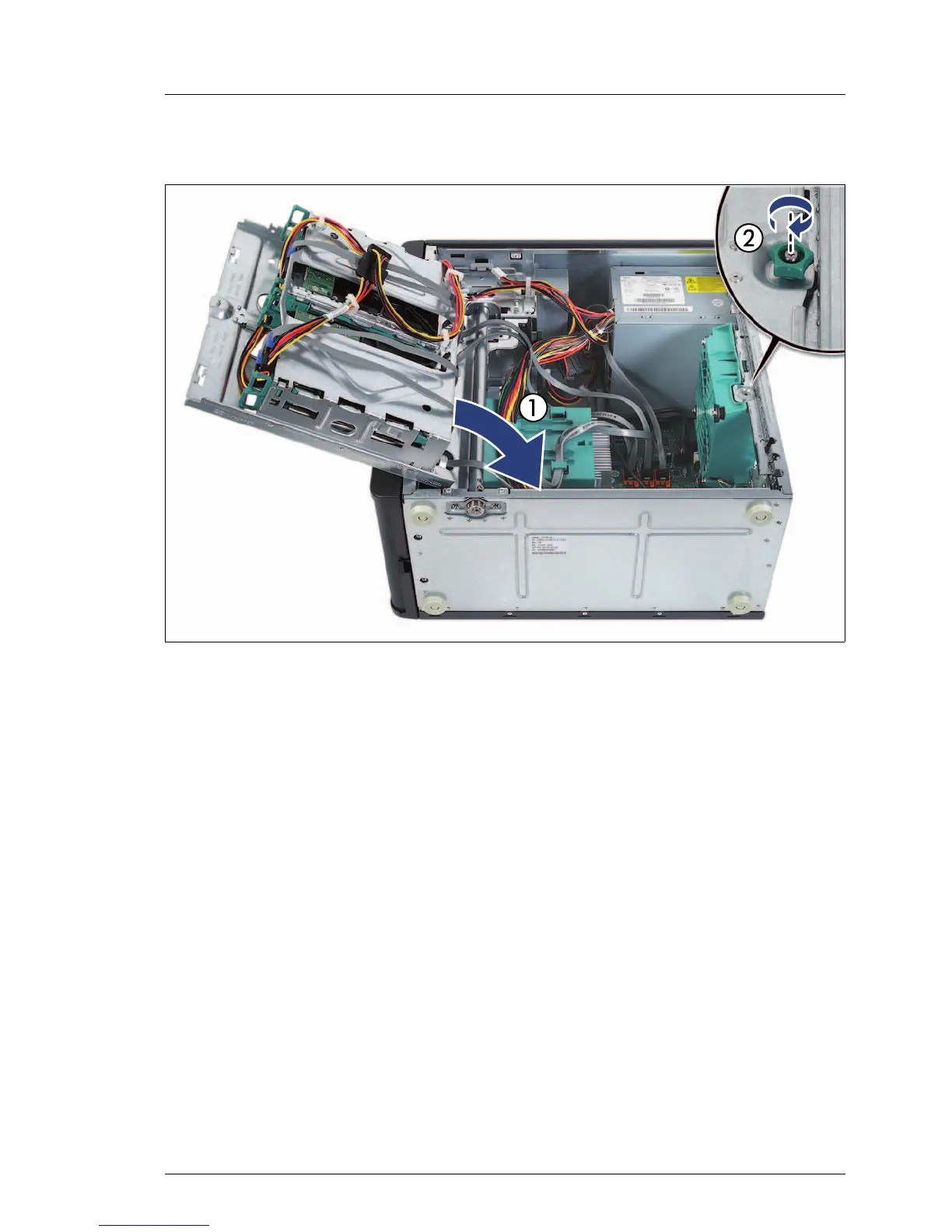

Figure 6: Closing the HDD cage
Ê Fold down the drive cage (1).
I Ensure that no cables are strained or trapped!
Ê Secure the drive cage with its knurled captive screw (2).
Ê Close the side cover as described in section 4.1.1.2 on page 24 and
reconnect the AC power cord.
