Ê Insert the new hard disk drive into its installation bay and push in until the
locking latches engage.

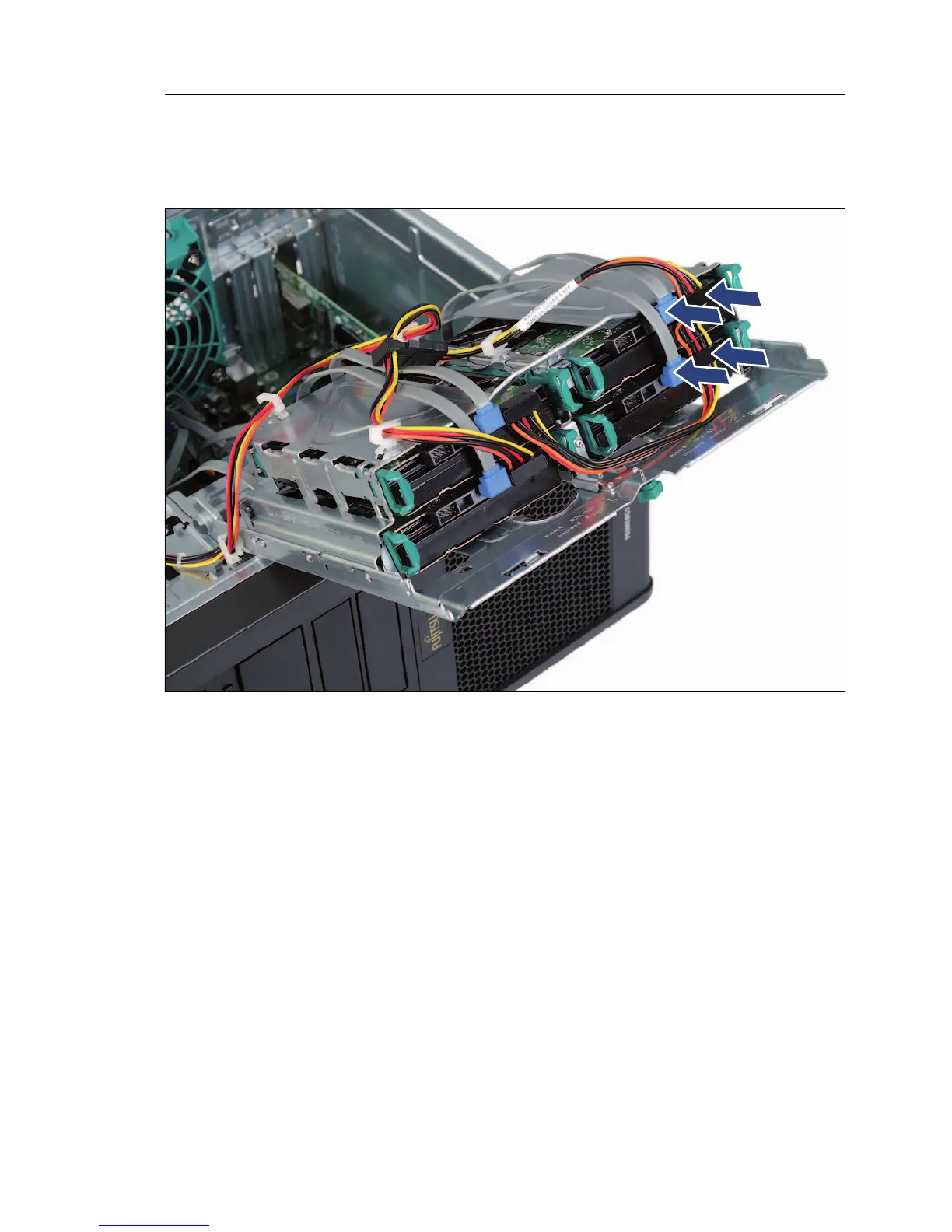

Figure 55: Connecting HDD cables
Ê Reconnect all cables to the hard disk drives (see the cabling plans in the
appendix of the PRIMERGY TX100 S2 Options Guide).
Ê Close the HDD cage as described in section 4.1.2.2 on page 27.
Ê Close the side cover as described in section 4.1.1.2 on page 24 and
reconnect the AC power cord.
