TX100 S2 Service Supplement 85
Replacement routines
4.7 Replacing the processor
V CAUTION!
Processors are extremely sensitive to electrostatic discharge and must
be handled with care. After a processor has been removed from its
protective sleeve or from its socket, place it upside down on a
nonconducting, antistatic surface. Never push a processor over a
surface.
4.7.1 Removing the processor heat sink
Ê Shut down the server and disconnect the AC power cord from the system.
Ê Remove the side cover as described in section 4.1.1.1 on page 23.
Ê Open the HDD cage as described in section 4.1.2.1 on page 25.
Ê Remove the air duct as described in section 4.1.4.1 on page 33.

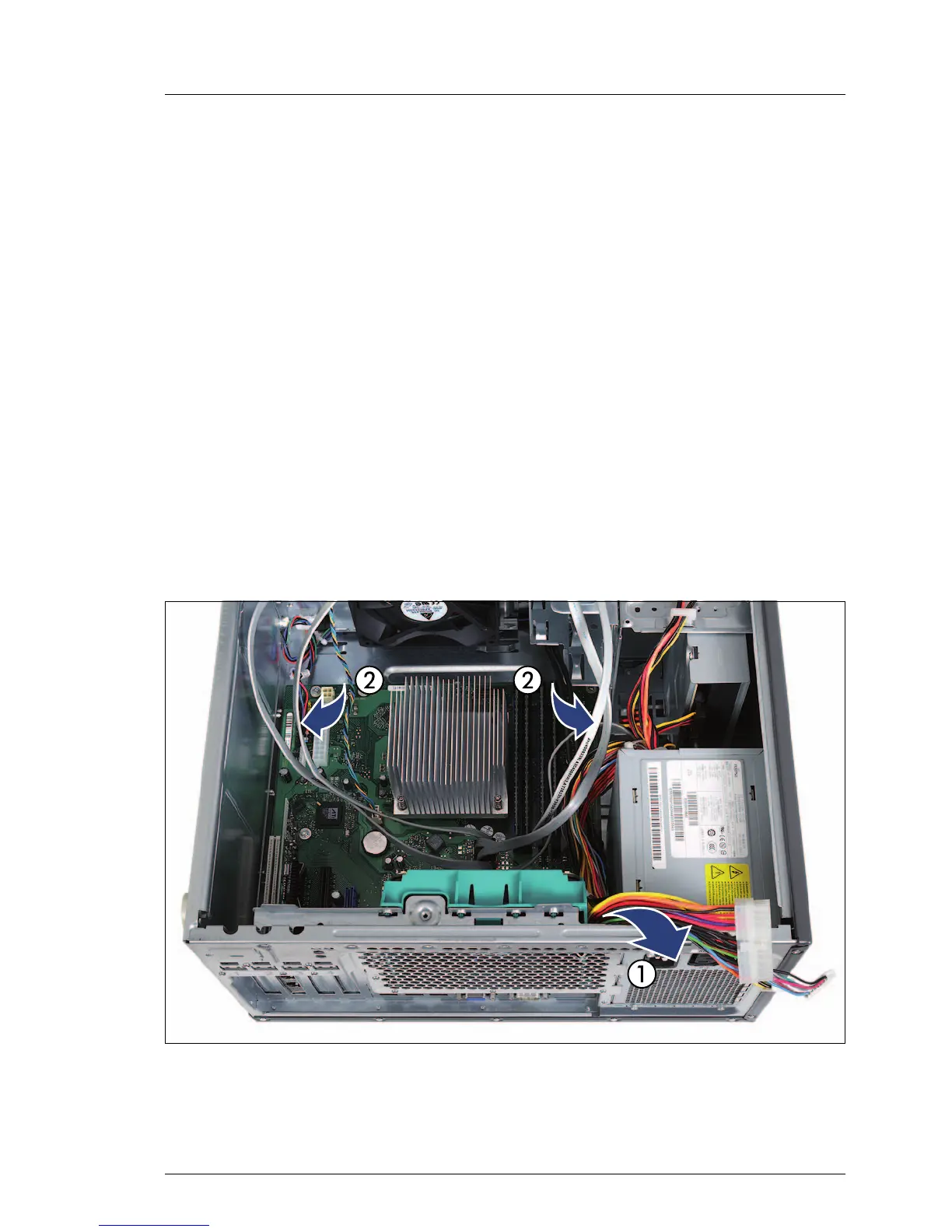

Figure 70: Clearing the CPU heat sink
Ê Disconnect all power cables from the system board and remove them from inside
the chassis as shown (1).
