TX100 S2 Service Supplement 57
Replacement routines
Ê Reconnect the USB FRONT connector to the system board (see the cabling
plans in the appendix of the PRIMERGY TX100 S2 Options Guide).
Ê Close the front bezel as described in section 4.1.3.2 on page 31.
Ê Close the HDD cage as described in section 4.1.2.2 on page 27.
Ê Close the side cover as described in section 4.1.1.2 on page 24 and
reconnect the AC power cord.
4.4 Replacing the power supply unit
I You are advised to perform this routine with the server in a horizontal
position.
Ê Shut down the server and disconnect the AC power cord from the system.
Ê Remove the side cover as described in section 4.1.1.1 on page 23.
Ê Open the HDD cage as described in section 4.1.2.1 on page 25.

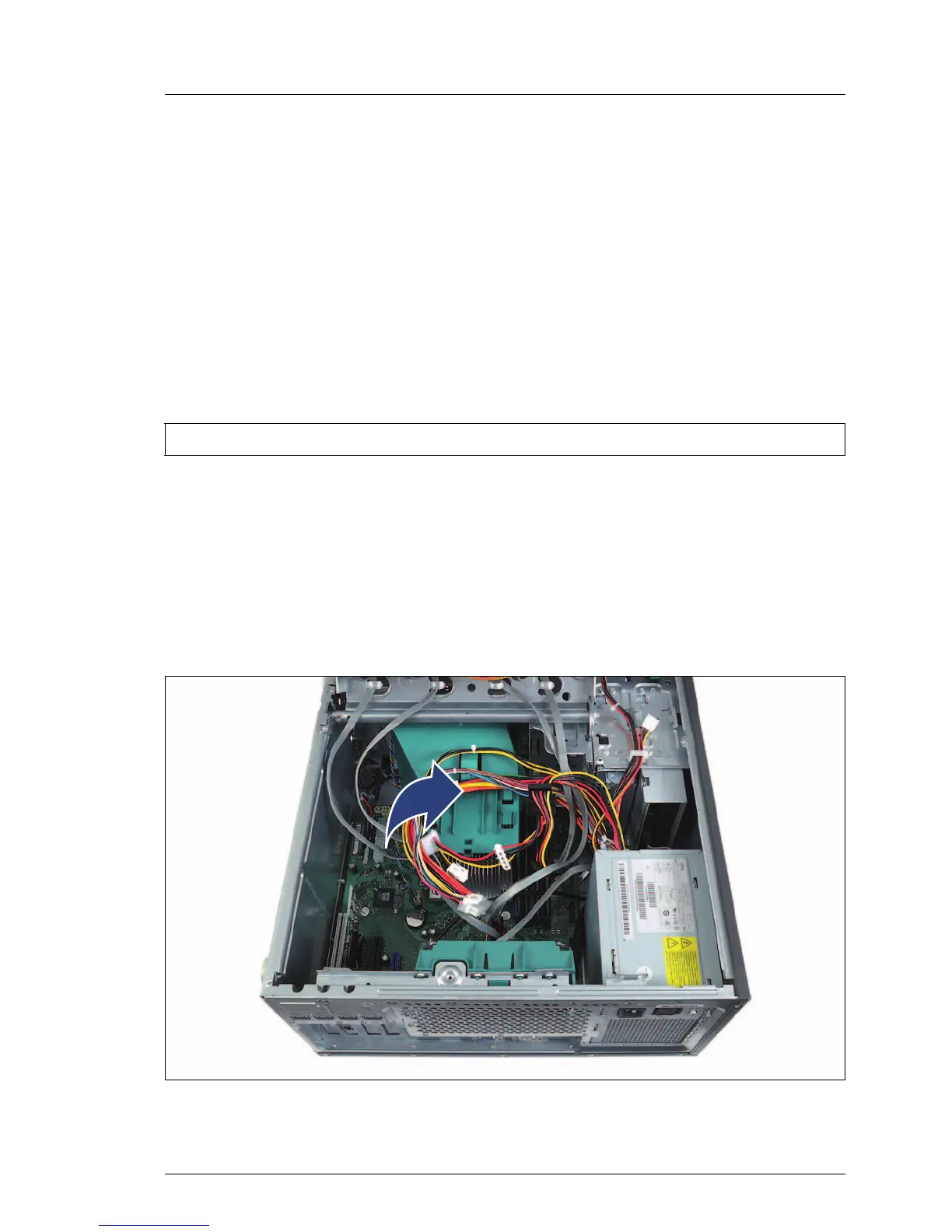

Figure 38: Disconnecting power cables (A)
Part number: S26113-E551-V70-2
