Fujitsu PRIMERGY TX100 S2 - Removing the Front Panel Cable; Replacing the Front Panel Cable

44 Service Supplement TX100 S2
Replacement routines
4.2 Replacing the front panel cable
4.2.1 Removing the front panel cable
Ê Shut down the server and disconnect the AC power cord from the system.
Ê Remove the side cover as described in section 4.1.1.1 on page 23.
Ê Open the HDD cage as described in section 4.1.2.1 on page 25.
Ê Remove the air duct as described in section 4.1.4.1 on page 33.
Ê Remove the front fan module as described in section 4.6.1 on page 72.

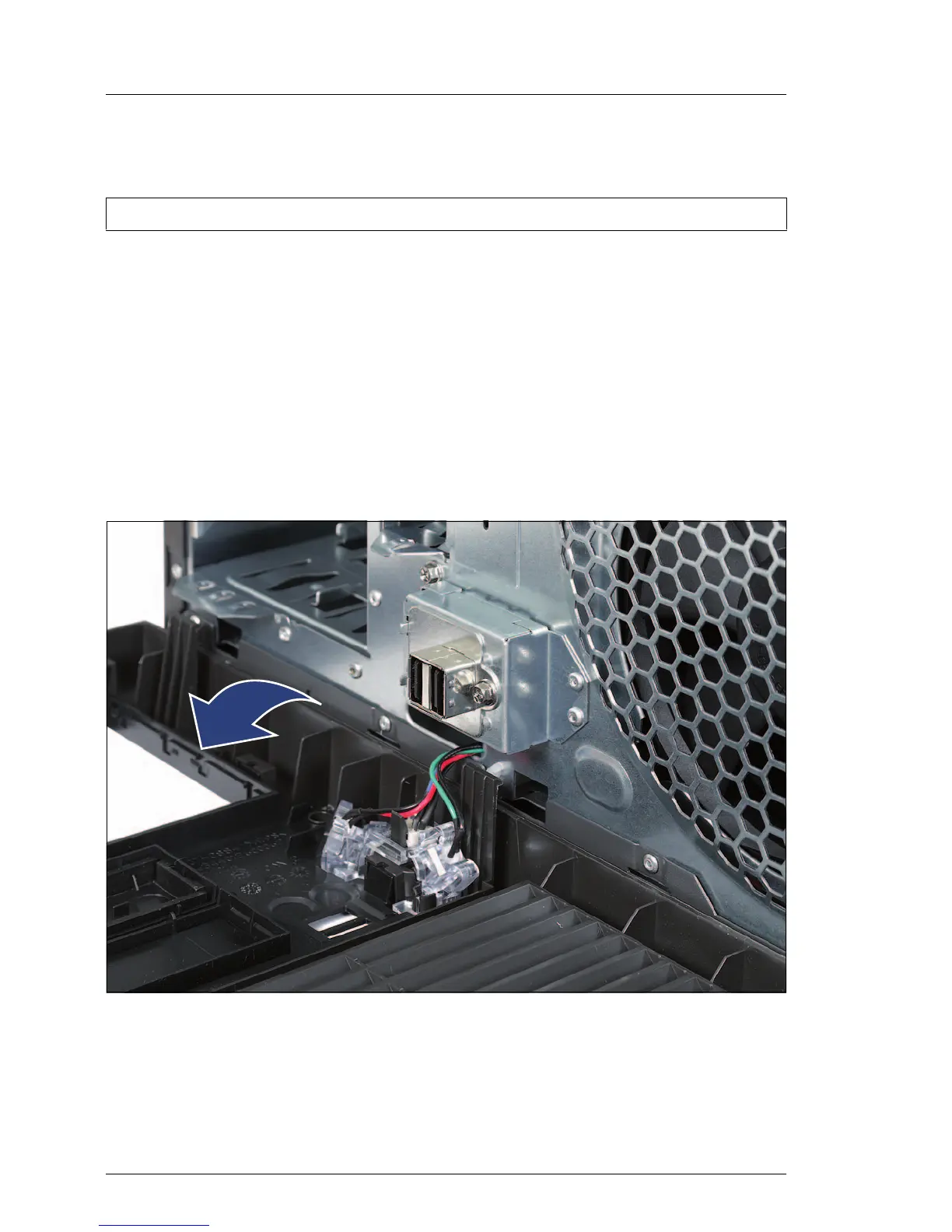

Figure 23: Opening the front bezel
Ê Open the front bezel as described in section 4.1.3.1 on page 28.
I You are advised to lay the server on its side with the chassis slightly
elevated above the detached front bezel.
Part number: T26139-Y3701-V147
