TX100 S2 Service Supplement 45
Replacement routines

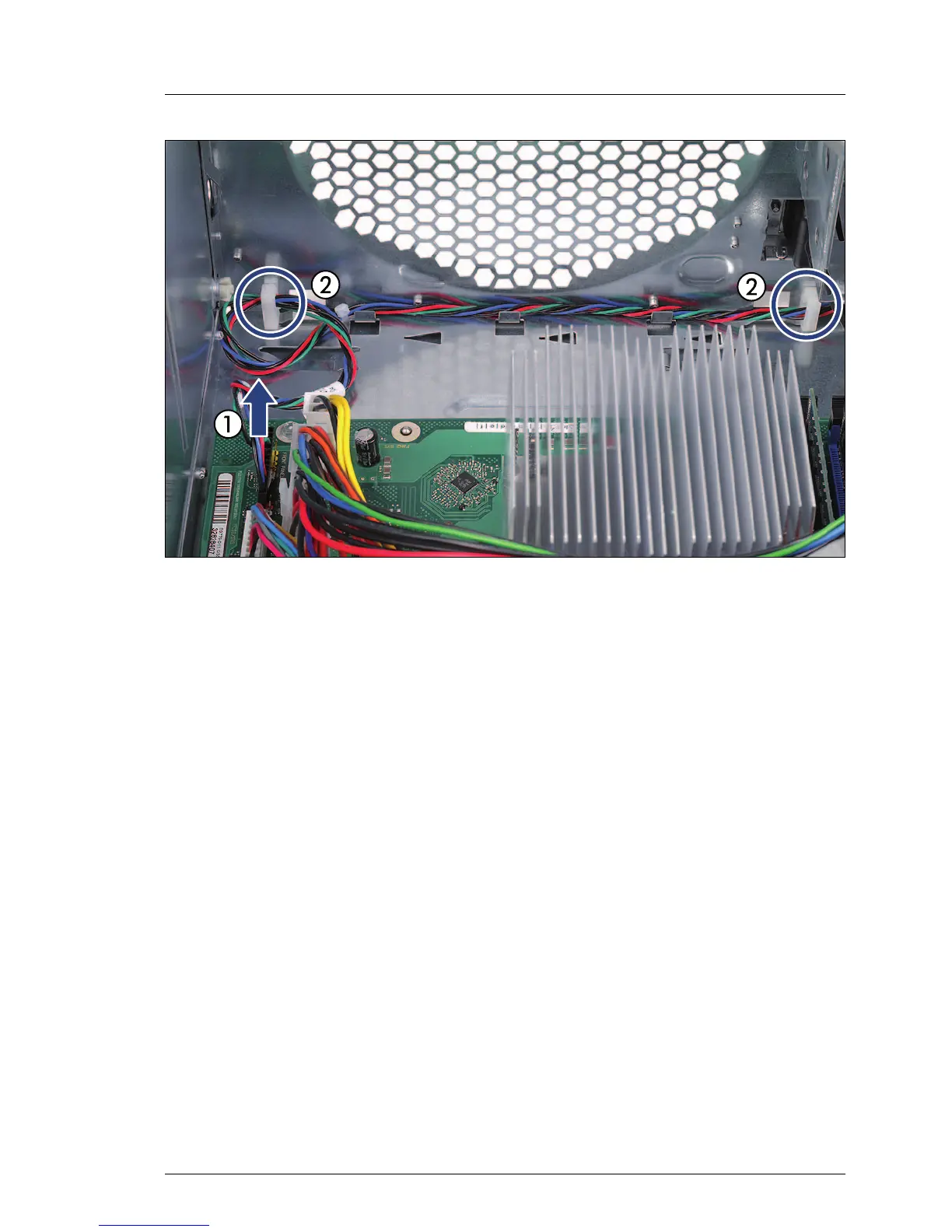

Figure 24: Disconnecting the front panel cable
Ê Disconnect the front panel cable from the system board (1).
Ê Open the cable clamps (2) and detach the front panel cable.
