Fujitsu PRIMERGY TX100 S2 - Replacing the Rear Fan Module (System Fan 2)

80 Service Supplement TX100 S2
Replacement routines
4.6.2 Replacing the rear fan module (system fan 2)
Ê Shut down the server and disconnect the AC power cord from the system.
Ê Remove the side cover as described in section 4.1.1.1 on page 23.
Ê Bring the server to its horizontal position.
Ê Open the HDD cage as described in section 4.1.2.1 on page 25.

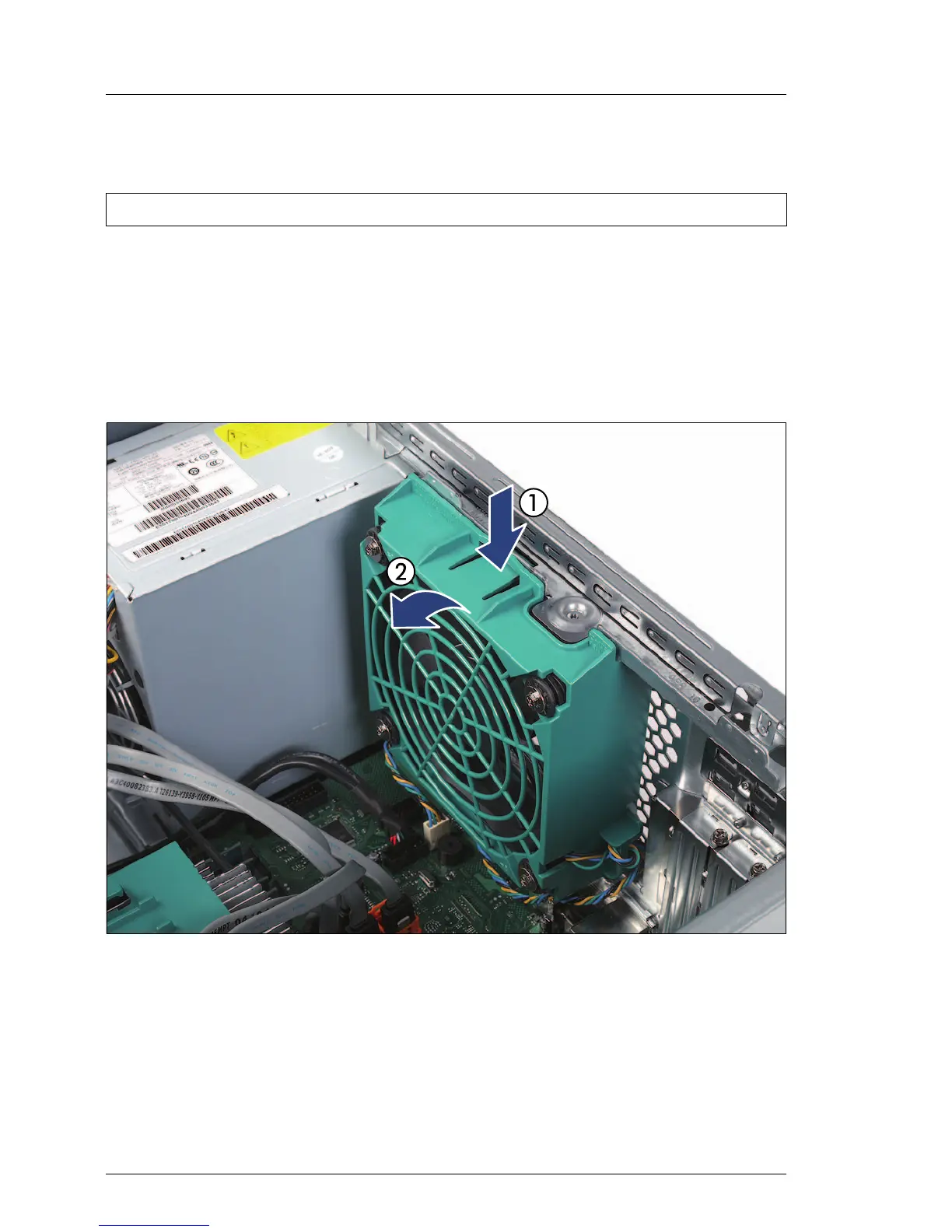

Figure 64: Detaching the rear fan module
Ê Press down on the locking latch to detach the rear fan module (1).
Ê Fold down the rear fan module (2).
Part number: C26361-K1007-B821
