TX100 S2 Service Supplement 79
Replacement routines

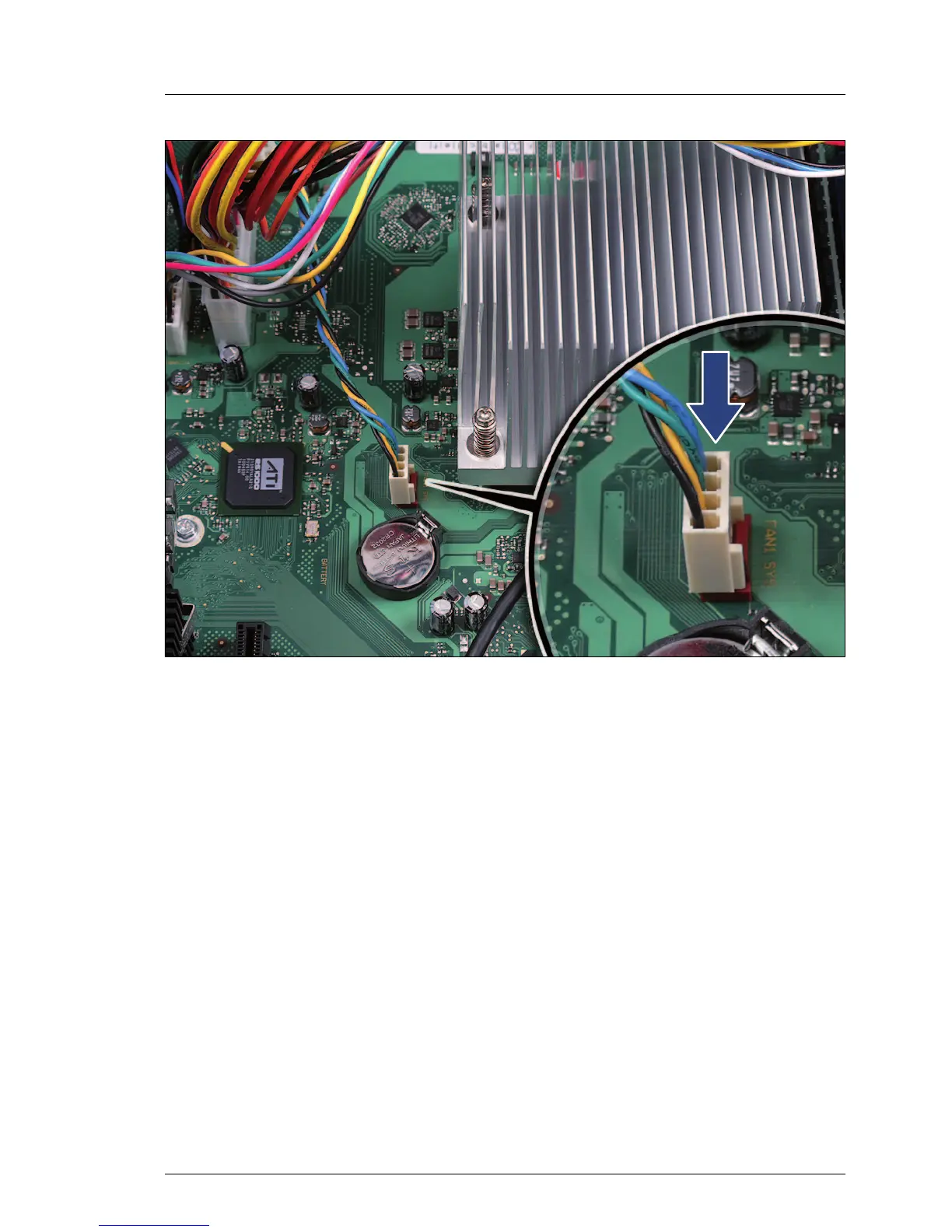

Figure 63: Connecting the front fan cable
Ê Reconnect the FAN1 SYS connector of the new fan module to the system
board.
Ê Reinstall the air duct as described in section 4.1.4.2 on page 37.
Ê Close the HDD cage as described in section 4.1.2.2 on page 27.
Ê Close the side cover as described in section 4.1.1.2 on page 24 and
reconnect the AC power cord.
